Xenon UV Test Chamber In Sales
Xenon UV Test Chamber
Main Technology Parameters
Model |
XL-S-500 |
XL-S-750 |
|
Internal dimensions (mm) |
500*760*500 |
950*950*850 |
|
Overall dimensions (mm) |
1200*1150*1480 |
1280*1320*1980 |
|
Specimen Capacity |
28 |
34 |
|
Holder size |
8*15cm |
8*15cm |
|
Technical structure | |||
Xenon Arc Lamp |
1 pc Water Cooled xenon arc lamp with inner quartz and outer borosilicate filter. |
||
Xenon lamp power |
4500W(Lamp life time: 1600 hours) |
||
Temperature range |
Ambient ~100℃ |
||
Relative Humidity range |
50~98% R.H |
||
Irradiance W/m2 |
40~180w/m2 at 300nm~420nm |
||
BPT Temperature |
35℃ ~ 85℃ |
||
Distance between sample and lamp |
Approx. 350mm |
Approx. 450mm |
|
Water spray time |
1~9999H59M, settable |
||
Water spray cycle |
1~240 minute, interval settable |
||
Control system | |||
Controller |
Programmable color touch-screen controller |
||
PC Link with software, R-232 interface | |||
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
||
Temperature Resolution |
± 0.001 ℃ |
||
Humidity Sensor |
Dry and wet bulb sensor |
||
Humidity Resolution |
± 1%RH |
||
UV Radiometer |
Tolerance: ±5% |
||
Heating system |
Independent Nichrome electronic heating system |
||
Cooling system |
French TECUMSEH compressor |
||
Humidification system |
External isolation, stainless steel surface evaporation humidifier |
||
Water supply system |
Automatic water supply, Water purification system, Water saving |
||
Circulatory system |
Cold resistance and low noise centrifugal fan |
||
Material | |||
Exterior material |
Steel Plate with protective coating |
||
Interior material |
SUS304 stainlesssteel |
||
Insulation window |
Double thermostability silicone rubber sealing |
||
Nominal power |
7000W |
8500W |
|
Power Supply |
AC380V 50HZ Three-phase five line system |
||
Ambient Temperature |
5℃~+30 ℃ ≤85% RH |
||
Standard |
ASTM G 26; |
||
Design And Construction

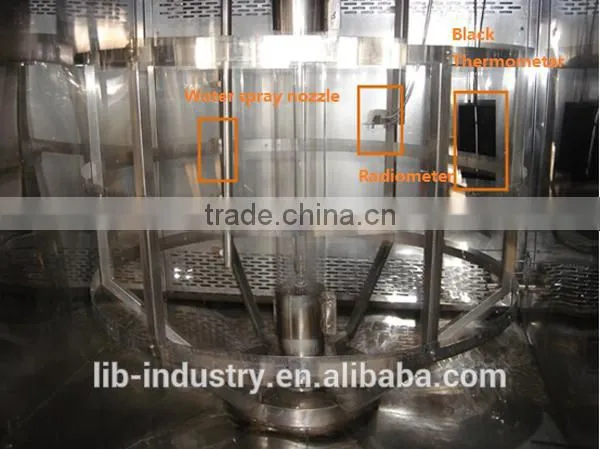

Test Area And Shelf
Test area is made of stainless-steel;
360 degree Rotative sample holder;
Have black Thermometer;
Xenon lamp power is 4500W;
Xenon lamp service life is 1600 hours (Over 1600 hours,must change ne lamp);
Programmable Touch Screen Controller
5.7'' programmable color touch display controller
Setting mode:touching type
Program: 100 groups in 999 sections
R-232 interface
PC Link with software
Sensor
Temperature sensor: PT-100 A class
Resolution: ± 0.001 degree
Humidity sensor: Dry and wet bulb
Resolution: ± 1%RH
Irradiance Radiometer
Tolerance: +/-5%
Black panel thermometer
Xenon UV Test Chamber
Video of Xenon UV Test Chamber
(Please copy it to your browser to open it)
Export Standard Wooden Case
Packed in standard export packing material.
Can be used for Sea, Air, Railway, Truck transportation.
3 Years Warranty
