Home > Products > UV Testing Chamber > UV B Resistance Test Machine

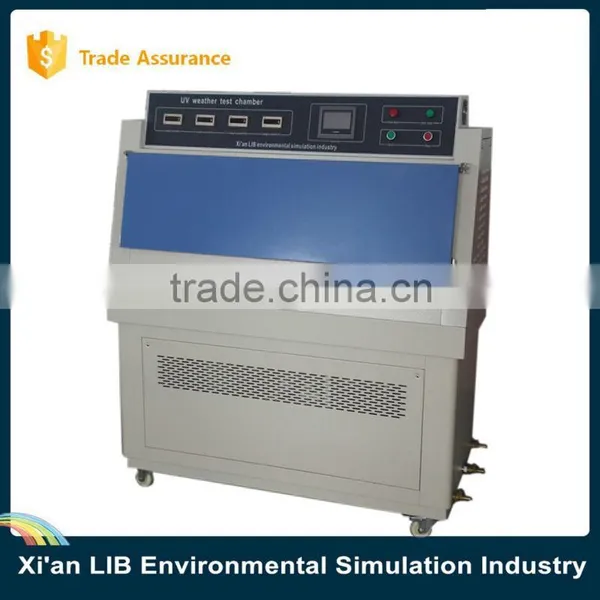

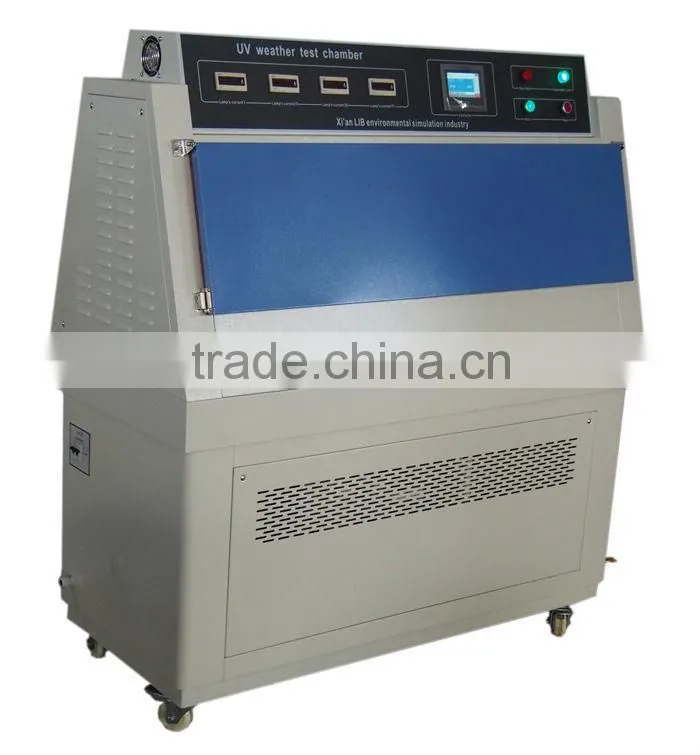

UV B Resistance Test Machine
- 110 Unit / Units per Month
- ShangHai TianJin DaLian ShenZhen GuangZhou HK
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | LIB | Model Number: | UV-260 |
Power: | Electronic | Usage: | Other, B Resistance Test |
Product Description
UV B Resistance Test Machine
UV B Resistance Test Machine
UV Weather test chamber is equipped with fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlles, elevate temperature. It simulate dew and rain with condensing humidity and/or water spray.
Main Technical Parameter
Model | UV-260 | UV-SI-260 |
Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
Overall dimensions (mm) | 580*1280*1350 | 580*1280*1350 |
Temperature range | Ambient~90℃ | Ambient~90℃ |
Humidity range | ≥95%R.H | ≥95%R.H |
Water Spray | Spraying water | Spraying water |
BPT | 30~70℃ | 30~70℃ |
Irradiance range | N/A | 0.5 ~ 20 W/ |
Distance between Specimen and lamp | 50mm | 50mm |
Test specimen capacity | Can hold 40 pieces of specimens (individual specimen size is 75mm * 150mm ) | Can hold 40 pieces of specimens(individual specimen size is 75mm * 150mm ) |
UV wavelength | 320nm~400nm UV-A | 320nm~400nm UV-A |
280nm~320nm UV-B | 280nm~320nm UV-B | |
Lamp power | 40W/unit , 8Pcs with unit chamber | 40W/unit , 8Pcs with unit chamber |
Power Supply | 380V 50HZ; | 380V 50HZ; |
Power | 5000W | 5500W |
Features:
1) Can achieve UV accelerated aging test, condensing, water spraying, and Irradiance control(UV-260SI)
2)Flat Specimen Holders which can hold 40pcs of specimen. And Customize special holder according to different specimens.
3) Automatic water supply; Water purification system; Water can be recycled (and can drain out).
And install Approx. 50Liter water tamk.
4) Easy to operation. Programmable color touch display controller. PC link with software.
Specimen Holders
1) It's aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 40 pieces of specimens
2) Special Specimen Holder
Customize special holder according to different specimens.
UV Lamp
Chamber equipped with 8 pieces of UV lamp, which is air cooling.
1 of UV Lamp Power is 40W, Lamp length is 1160mm
UV lamp service life is 1200hours.
Over 1200 hours, must change new lamp.
Water Spray & Water Supply
Total 6 water spray nozzles, 3 nozzles each side.
Automatic water supply
Water reservoir is 50 Liter.
Control Panel
Programmable color touch display controller;
which control temperature, humidity, water spraying.
Controller shows 8 pieces of UV lamp working time.
UV B Resistance Test Machine
Three years Warranty ; Lifelong Service
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 20 days , if you need in urgent , we can speed up the production ,will short to 18days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
