FILN Product PA66 5 Pin Auto 30A 12 Volt Relay For Car
US$ 1 - 1.2
MOQ: 25 Pieces
Key Specifications
Get Latest Price
Voltage:
24V
Rated Current:
40A
OE NO.:
Relay
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2013 Newest Product PA66 5 Pin 30A Mini Relay 5vUS$ 1 - 1.2MOQ: 25 Pieces -
High Quality PA66 5 Pin 30A 12v 80a RelayUS$ 1 - 1.2MOQ: 25 Pieces
-
Free Sample PA66 5Pin 30A 12 Volt RelayUS$ 1 - 1.2MOQ: 25 Pieces
-
2013 Newest Product PA66 5Pin 30A Automotive RelayUS$ 1 - 1.2MOQ: 25 Pieces
-
High Quality PA66 5Pin 30A Relay 24vdcUS$ 1 - 1.2MOQ: 25 Pieces
Voltage
24V
Rated Current
40A
OE NO.
Relay
Car Make
all car
Place of Origin
Zhejiang, China
Brand Name
YULIN
Model Number
YL1-R
1.Specifacation:
| Auto Relay | NRA04 |
| Relay Dimension (mm): | 28X28X25 |
| Contact arrangement: | 1A/1B/1C/2A |
| Contact capacity: | NO: 40A 14VDC |
| Resistive load (cosφ=1) | NC: 30A 14VDC |
| Max. switching voltage: | 75VDC |
| Max. switching power: | 630W |
| Nominal voltage: | 3~24VDC |
| Pull-in voltage: | ≤70% |
| Release voltage: | ≥10% |
| Operate/Release time: | ≤10ms/8ms |
| Coil power: | 1.8W |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Dielectric strength Vr.m.s | |
| Between contacts: | 750VAC |
| Between coil & contact: | 750VAC |
| Ambient temp.: | -40~+85oC |
| Electrical life: | 1X105 |
| Mechanical life | 1X107 |

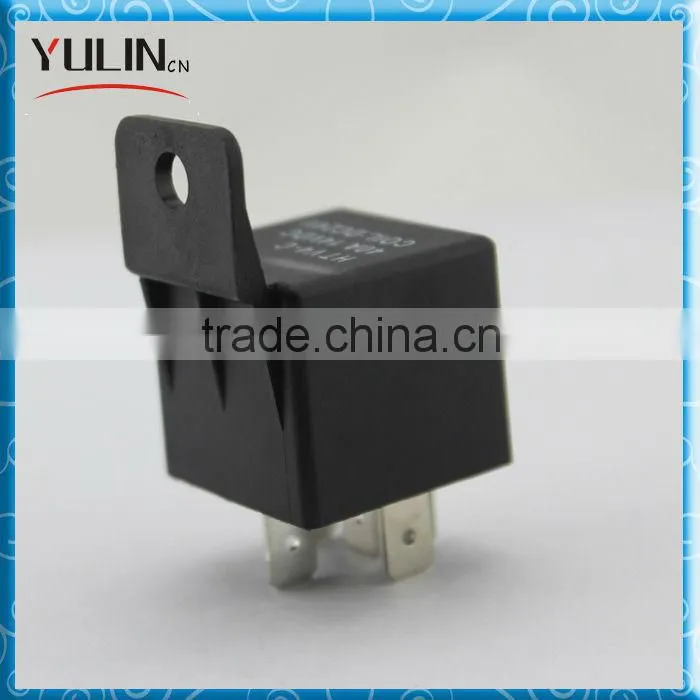

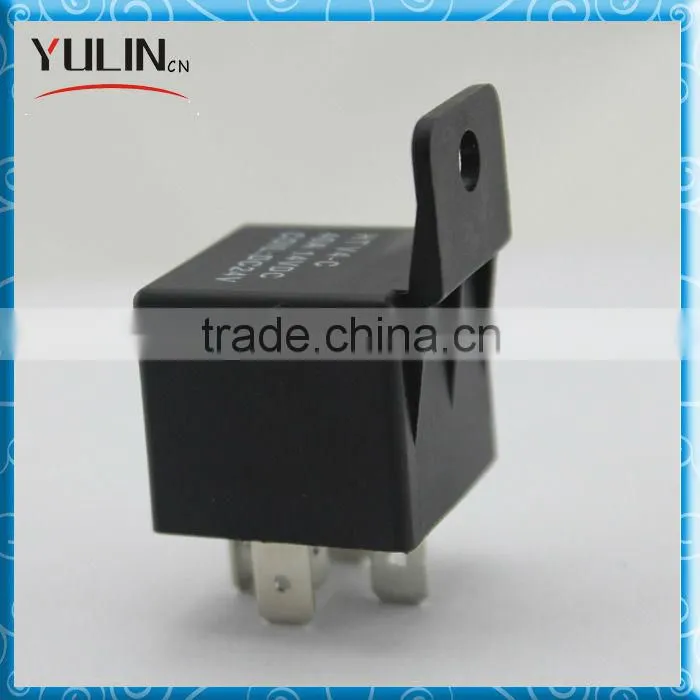

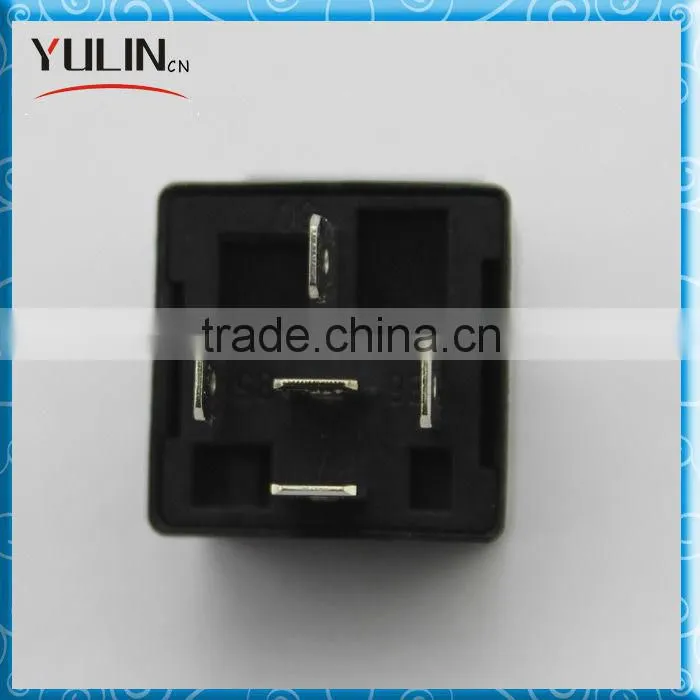

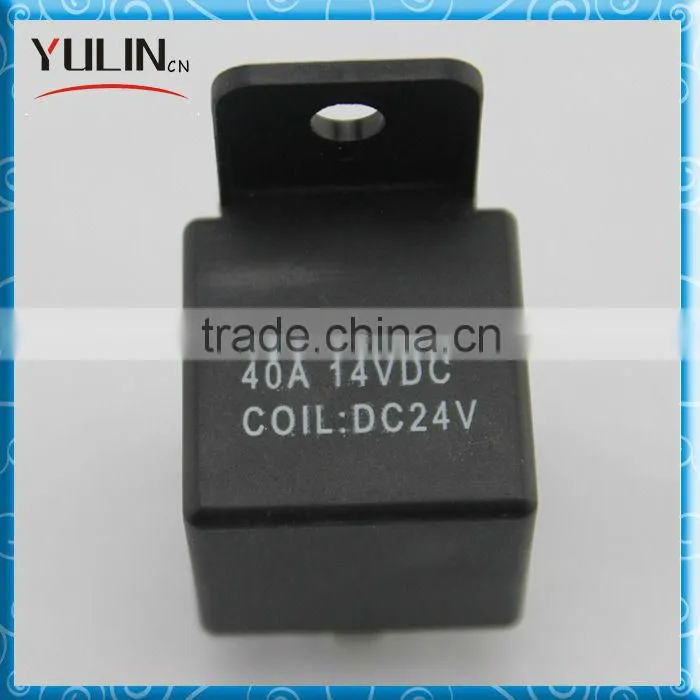

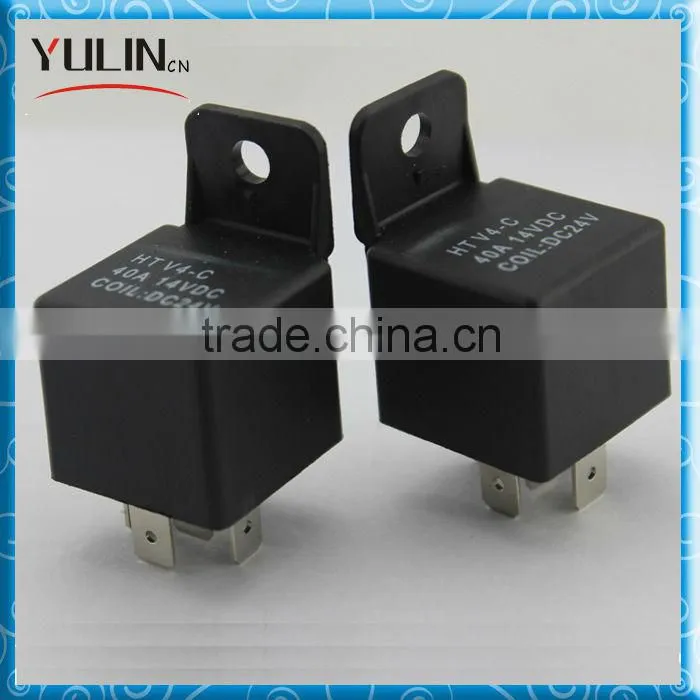

2.Photos

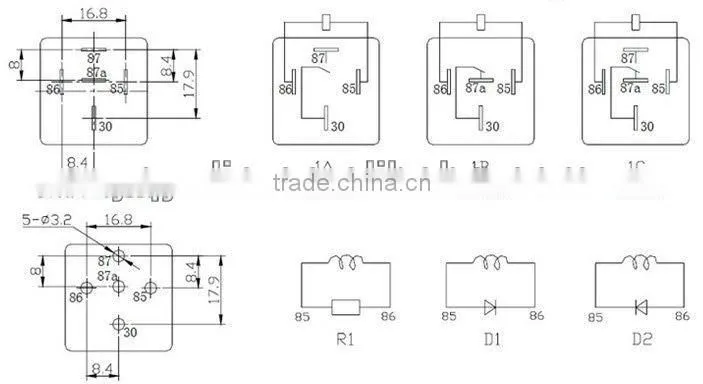

3.Drawing

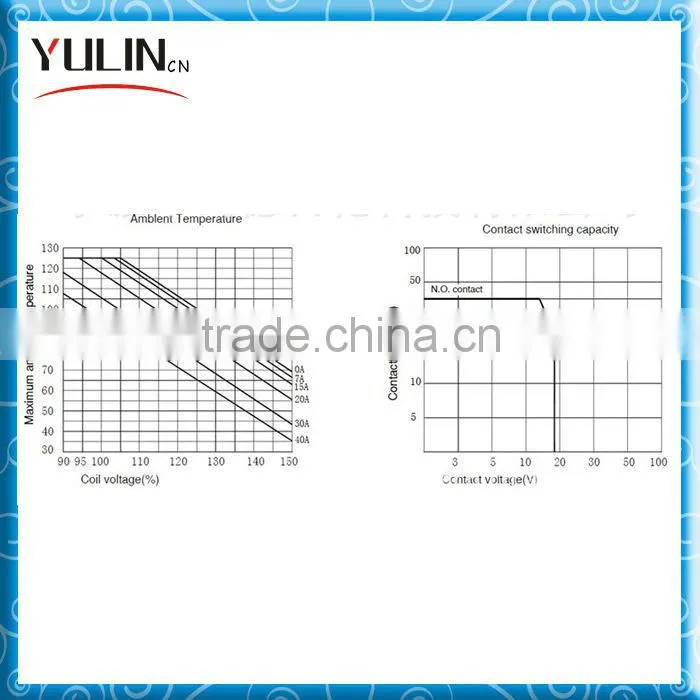

4.Design parameters
---------------------------------------------------------------------------------------------------------------------------------------------------

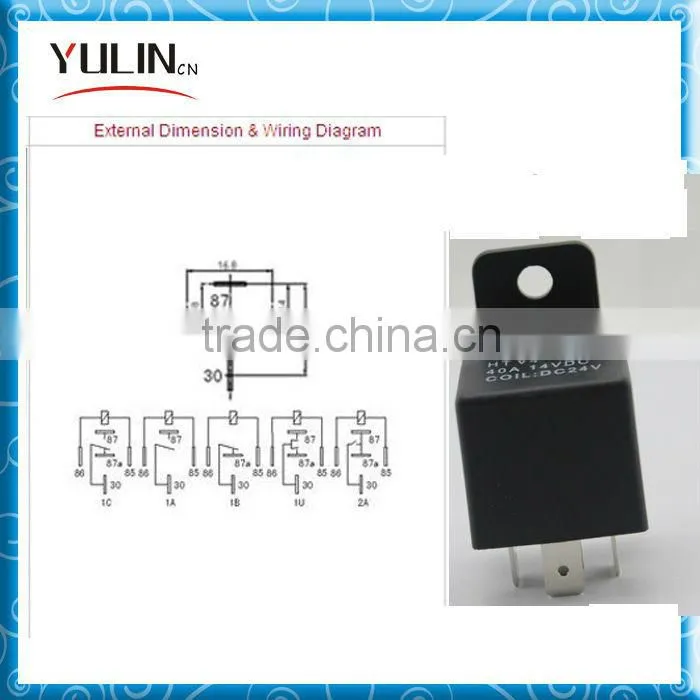

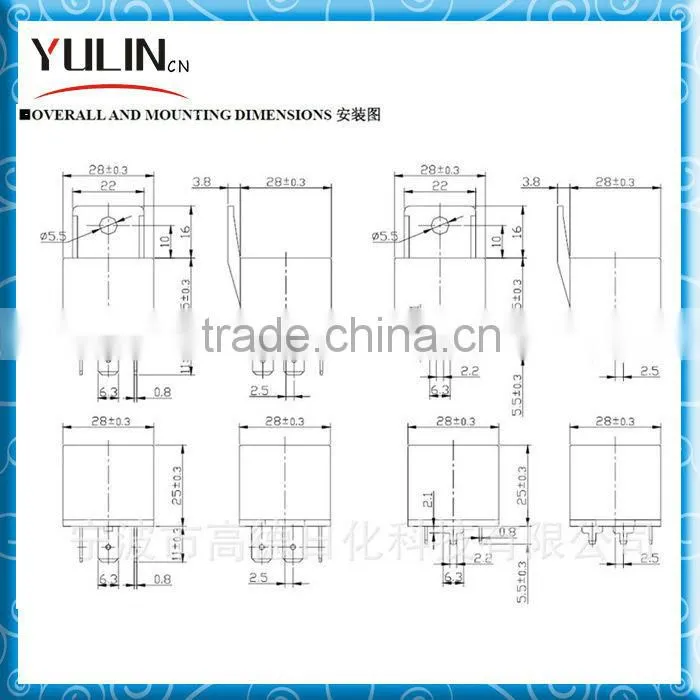

5.Overalland mounting dimensions

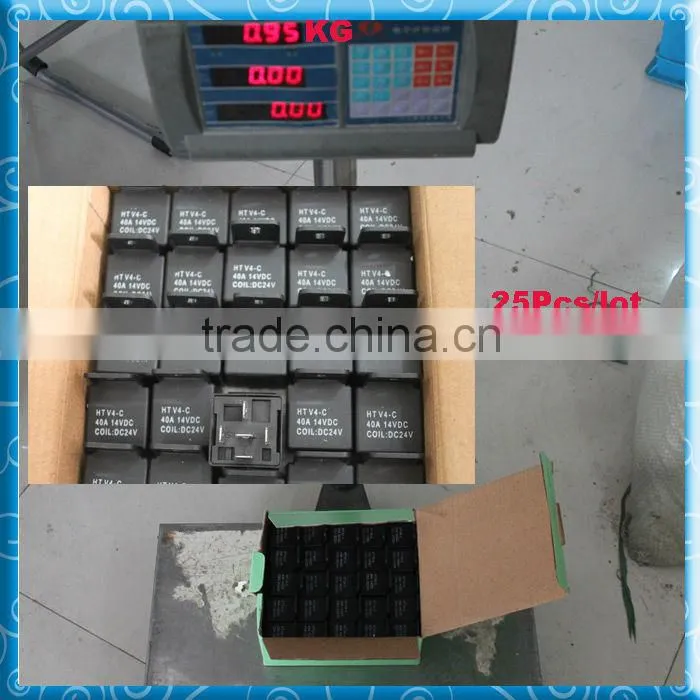

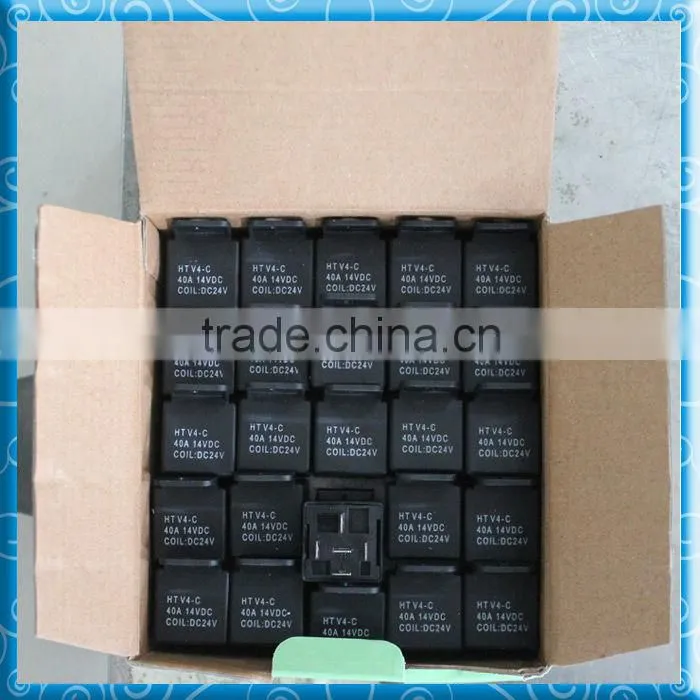

6.Package

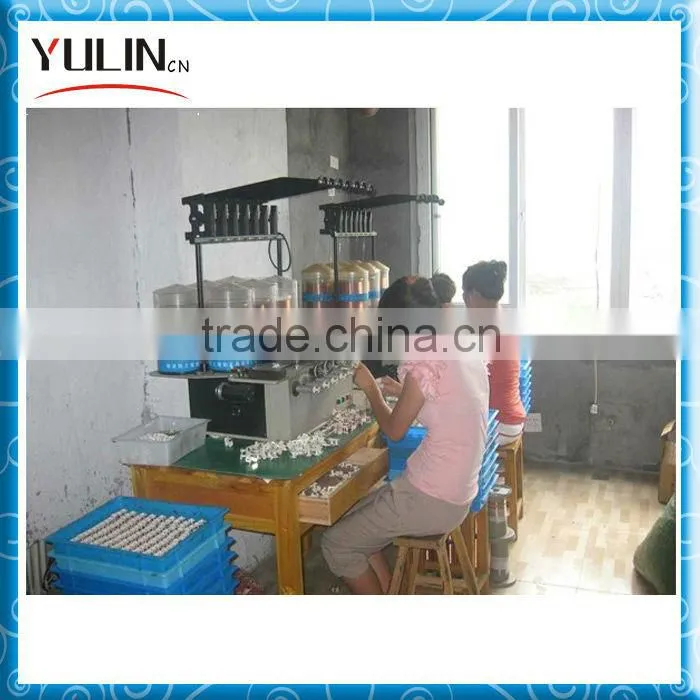

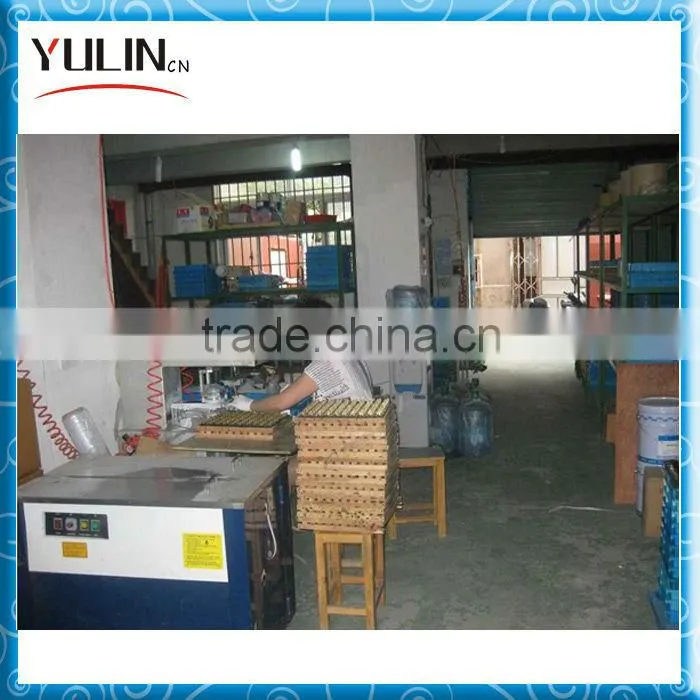

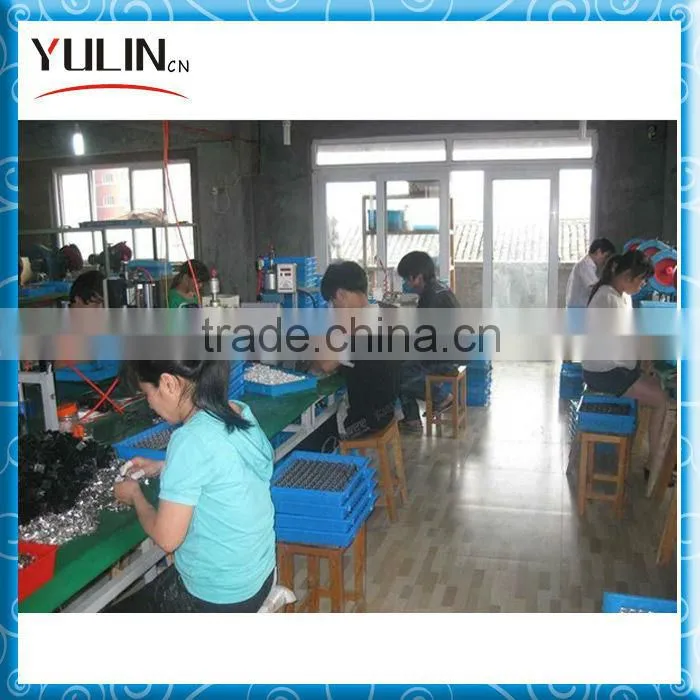

7.Workplace
