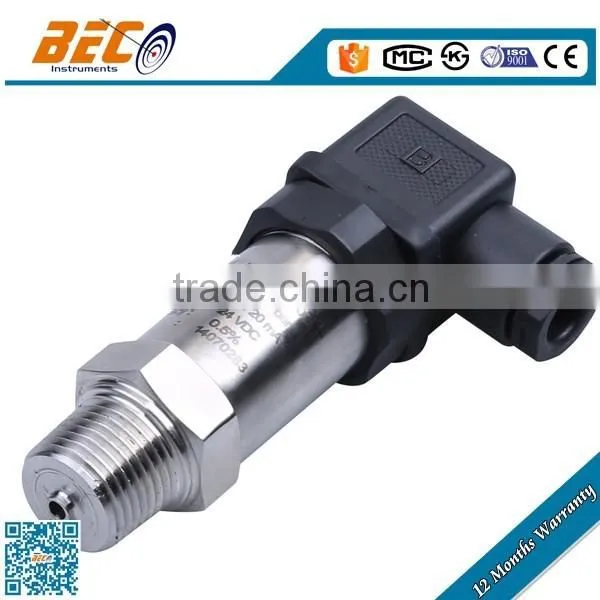

Gauge pressure sensor ss body transmitter
APB8300 SERIES MINI PRESSURE TRANSMITTER
Summary:
APB8300 series diffused silicon stain pressure transmitters use the sensor elements with high accuracy,stability and reliability and measure the pressure of the liquid or gas or the level of the liquid, then change into 4 to 20mA electric signal.
Scope of application:
- Light industry
- Medical instrumentation
- Space flight machine
- Petroleum chemical industry
- Process pressure control
- Hydraulic and air pressure system
- Internal-combustion engine,refrigeration,air-condition
- Compressor
- Foodstuff,sanitation,medicine,drink
Characteristics
- Wide range: -1 upto 1000bar
- Zero and range adjustable
- Reverse polarity and limit protection
- Lightning strike protection
- Extensive and convenient
- High accuracy, stability and reliability
- Special connection,easy to maintain
- Easy to clean
Technical parameter:
- Accuracy: 0.25%F·S,0.5%F·S
- Measuring range: -1 to 0 bar, 0 to 1 bar,0 to 10bar,0 to 100bar, upto 1000bar
- Power supply: 24VDC(12 to 36VDC)
- Output: 4 to 20mA
- Operating Tem: -20℃ to +85℃
- Connection: G1/2(1/2 BSP),G1/4, 1/2NPT,1/4NPT..
- Protection: IP65
- Wetted parts: 304SS
- Diapharagm material: 316SS
- Proof pressure:150%FS
- Weight: about 500g
Connection & Size:

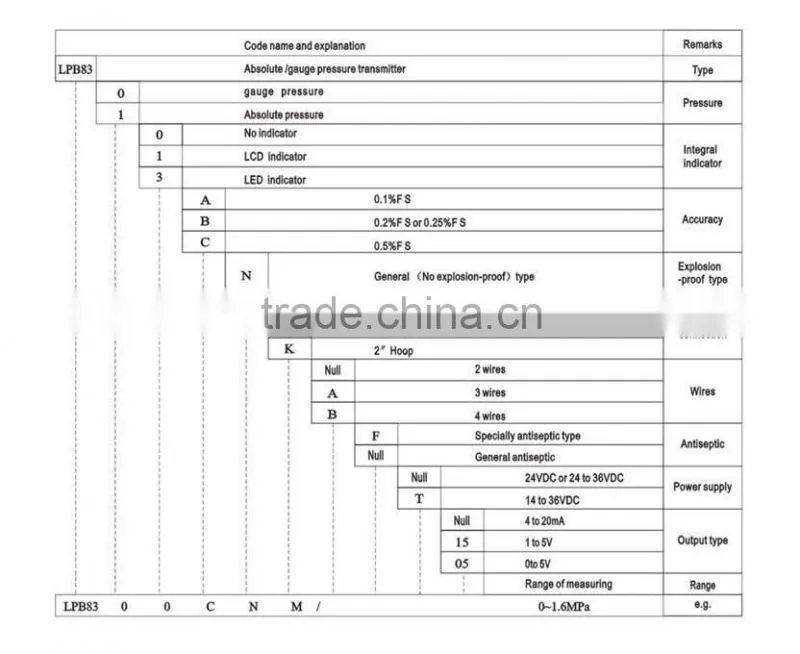

Model and Suffix codes:
Example: LPB8300CNM 0 to 16 bar means gauge pressure,no indicator, accuracy 0.5%FS, M20*1.5 male, two-wire, commonly antiseptic,24VDC,4 to 20mA,measuring range is 0 to 16bar.
1. Your inquiry would be replied within 24 working hours, nomatter weekend or holiday.
2. Customized design is available, OEM and ODM are welcomed.
3. Delivery the goods to our customer all over the world with speed and precision,
4. Offer customer the competitive price with high quality pressure gauge.
5. Well-trained and experienced staff will answer all of your inquires in fluent English.
6. Protection of your sales area, ideas of design and all your private information.
BECO is one of the leading measurement instruments supplier of high quality,competitively priced pressure gauges, temperature gauges, pressure transmitter and those pressure and temperature measurement instruments. BECO.CN’s products offering include bourdon tube type pressure gauges, diaphragm capsule pressure gauges (For micro pressure situation ). With internal parts made of stainless steel,brass/bronze, stainless iron. Pressure gauges’ dimension range from 1 inch to 8 inch. Other products include bimetallic thermometers from 2.5 inch to 6 inch in dimension as well as thermowells, pressure transmitter.
BECO are young, energetic, optimistic and friendly, totally committed to meet everyone requirement from our clients. We promise that every inquiry would be replied within 24 hours. Also senior engineer waiting here to solve all your confusion of our instrument.
1. What kind of payment terms are acceptable ?
Beco: Currently we accept T/T, WN payment.
For small oders( Less than 1000 USD), full payment in advance;
For bulk orders, 30% payment in advance, balance done before delivery.
2. What is the delivery time?
Beco: Small orders: 10 days;
Bulk orders: 15-20 days.
3. What’s the products quality warranty ?
Beco: The products quality warranty is 12 months.
4. How do you ship the pressure gauges and other products ?
Beco: Before shipping, we use PC bag, corrugated carton, buble pack and buble box to pack the gauges carefully.
Shipping Method:
Express: FedEX, UPS, TNT, EMS etc. We provide cheaper, safer, faster delivery;
By Air: In some area, the freight by air is more expensive than express, plese attention;
By Sea: The most economic delivery, but take long time.
5. How do you control your products quality ?
Beco: All our products have passed CMC, ISO9001:2008, CE certificates. Besides, all material need to be inspected before using. All products need to be callibrated for twice during manufacturing.
6. Can you supply OEM/ODM service ?
Beco: Yes, OEM service is available. Also, our engineer is professional in this field over 10 years, we’ll provide all what we can to help you with ODM service.
