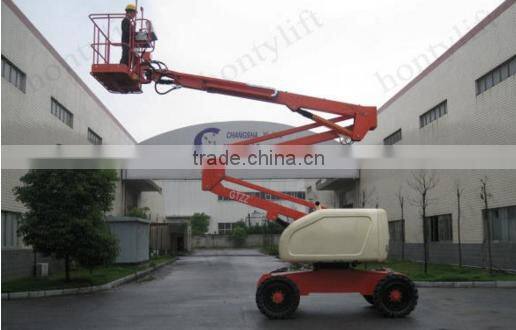

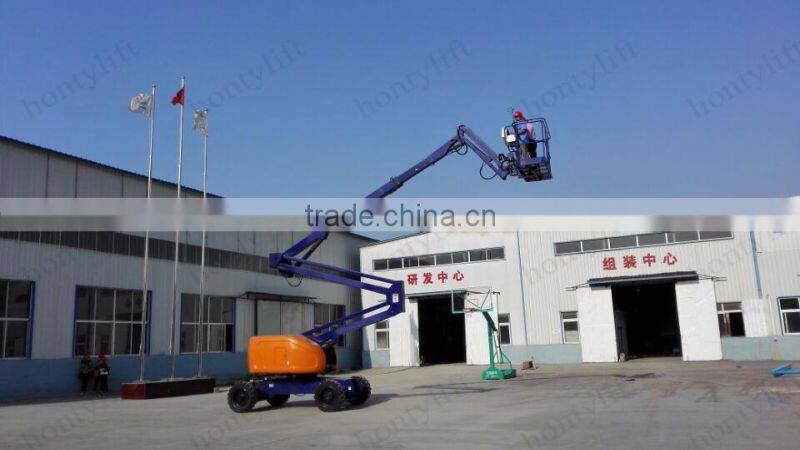

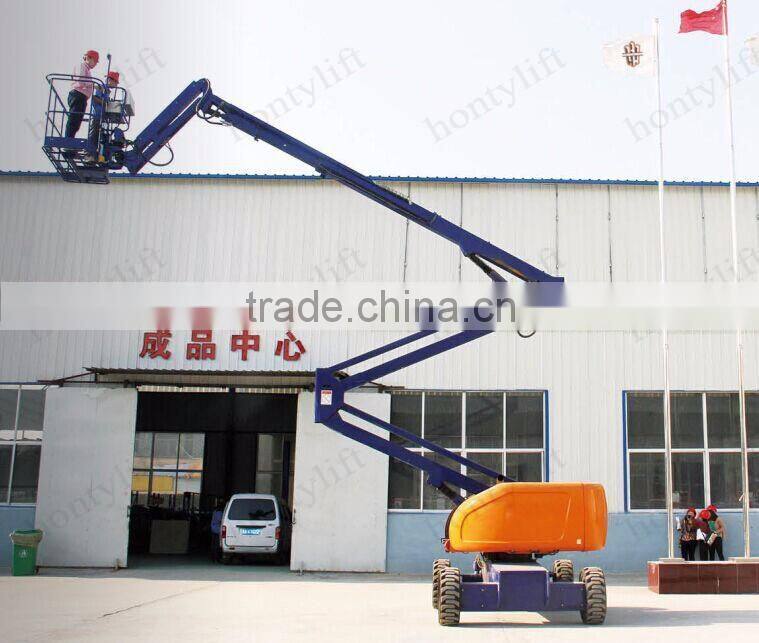

self-propelled articulating boom lift/cherry pickers for sale
1.Product Description of articulating boom lift
1)Power source :Diesel engine draiven, the storage battery power
If you think the lift power is so noisy, you could use the t24 m Discount sale High Quality boom lifthe storage battery power to lift boom, and this is the advantage of the double power.
2) Full-automatic legs
With four full-automatic hydraulic legs, articulating booms can move upside and down automatically
3)Both control modes
self-propelled boom lift can be operated both in the up basket and ground ,boom rotation 360°, so can work across the barriers.

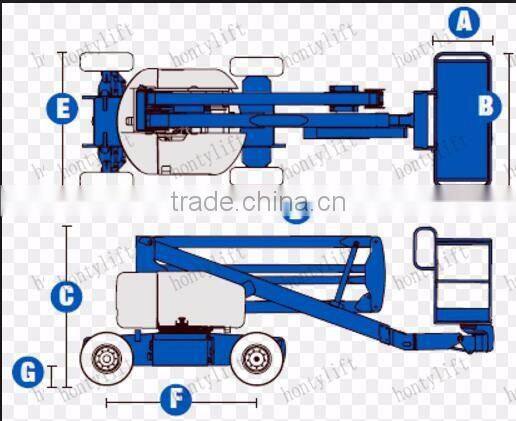

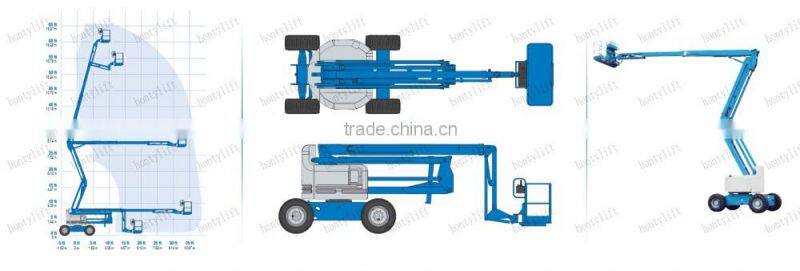

2.Technical specifications
Type |
HTZZ-14 |
HTZZ-16Z |
HTZZ-18 |
HTZZ-20A |
HTZZ-20Z |
HTZZ-22Z |
HTZZ-24Z |
|
Working height |
15.9m |
17.7m |
19.7m |
21.7m |
21.7m |
24.1m |
25.7m |
|
Platform height |
14.2m |
16m |
18m |
20m |
20m |
22.4m |
24m |
|
Working radius |
8m |
9.5m |
10.43m |
11.7m |
13.3m |
13.3m |
13.3m |
|
Lift capacity |
230kg |
230kg |
230kg |
230kg |
230kg |
230kg |
230kg |
|
Crossing height |
7.75m |
7.75m |
8.5m |
8.5m |
8.75m |
8.75m |
8.75m |
|
Length(stowed) |
6.2m |
6.8m |
8.25m |
9.23m |
9.2m |
10.1m |
10.7m |
|
Width |
2.29m |
2.29m |
2.35m |
2.35m |
2.49m |
2.49m |
2.49m |
|
Height(stowed |
2.38m |
2.38m |
2.38m |
2.39m |
2.82m |
2.82m |
2.82m |
|
Wheel base |
2.2m |
2.2m |
2.6m |
2.6m |
2.6m |
2.6m |
2.6m |
|
Ground-clearance |
430mm |
430mm |
430mm |
430mm |
330mm |
330mm |
330mm |
|
Platform Size |
1.83*0.76 |
1.83*0.76 |
1.83*0.76 |
1.83*0.76 |
1.83*0.76 |
1.83*0.76 |
1.83*0.76 |
|
speed(stowed) |
6.3 |
6.3 |
6.3 |
6.3 |
6.3 |
6.3 |
6.3 |
|
speed (raised) |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
|
Grade-ability |
40% |
30% |
30% |
30% |
30% |
30% |
30% |
|
Solid tire |
33*12-20 |
33*12-20 |
33*12-20 |
33*12-20 |
33*12-20 |
33*12-20 |
33*12-20 |
|
Swing speed( rpm) |
0~0.8 |
0~0.8 |
0~0.8 |
0~0.8 |
0~1/3 |
0~1/3 |
0~1/3 |
|
Turning swing |
360.continuous |
|||||||
leveling |
Automatic leveling |
|||||||
rotation |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
|
Fuel capacity |
100L |
100L |
100L |
100L |
100L |
100L |
100L |
|
Total weight |
7577kg |
7657kg |
7750kg |
8617kg |
10000kh |
10350kg |
10550kg |
|
voltage |
12v |
12v |
12v |
12v |
12v |
12v |
12v |
|
Drive type |
4*2*2 |
4*2*2 |
4*2*2 |
4*2*2 |
4*2*2 |
4*2*2 |
4*2*2 |
|
Engine |
Cummins b3.3-c80 |
|||||||
rated power |
45kw/2200rpm |
|||||||
Type |
HTZZ-12D |
HTZZ-14D |
HTZZ-16D |
HTZZ-18D |
HTZZ-30 |
HTZZ-38Z |
HTZZ-40Z |
HTZZ-45Z |
Working height |
13.75m |
15.46m |
17.505m |
19.8m |
31.7m |
39.8m |
42m |
47 |
Platform height |
12.05m |
13.76m |
15.805m |
18m |
30m |
38.1m |
40.3m |
45.3m |
Working radius |
6.15m |
7.88m |
10.2m |
9.85m |
20.2m |
18.1m |
21.6m |
19.2m |
Lift capacity |
230kg |
230kg |
230kg |
230kg |
230kg |
230kg |
230kg |
230kg |
Crossing height |
7.6m |
7.6m |
7.6m |
8.5m |
12.2m |
18.65m |
23.6m |
24.5m |
Length(stowed) |
5.5m |
6.24m |
7.9m |
8.1m |
10.06m |
11.46m |
11m |
13.04m |
Width |
1.75m |
1.75m |
2m |
2.38m |
2.49m |
2.49m |
2.49m |
2.49m |
Height(stowed) |
2m |
2m |
2m |
2.38m |
3.165m |
3.05m |
3.05m |
3.17m |
Wheel base |
2m |
2m |
2.2m |
2.6m |
3.66m |
3.96m |
3.96m |
3.9m |
Groundclearance |
0.2m |
0.2m |
0.2m |
0.3m |
430mm |
430mm |
430mm |
430mm |
Platform size |
1.53*0.76 |
1.53*0.76 |
1.53*0.76 |
1.83*0.76 |
2.44*0.91 |
2.44*0.91 |
2.44*0.91 |
2.44*0.91 |
speed(stowed) |
5km/h |
5km/h |
5km/h |
5km/h |
4.4km/h |
4.4km/h |
4.4km/h |
4.4km/h |
speed (raised) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
1.1km/h |
1.1km/h |
1.1km/h |
1.1km/h |
Grade ability |
30% |
30% |
30% |
25% |
40% |
40% |
40% |
40% |
Solid tire |
250-15 |
250-15 |
250-15 |
33*12-20 |
12.00-20 |
12.00-20 |
12.00-20 |
12.00-20 |
Swing speed |
0~1/3rpm |
0~1/3rpm |
0~1/3rpm |
0~1/3rpm |
0~0.8rpm |
0~1/3rpm |
0~1/3rpm |
0~0.8rpm |
Turning swing |
360.continuous |
|
||||||
leveling |
Automatic leveling |
|
||||||
Platform rotation |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
+-80. |
|
Fuel capacity |
|
|
|
|
151L |
151L |
151L |
151L |
Total weight |
6500kg |
6780kg |
7110kg |
7650kg |
18000kh |
20000kg |
21000kg |
21000 |
voltage |
24v |
24v |
24v |
24v |
24v |
24v |
24v |
24v |
Drive type |
6.5*2kw |
6.5*2kw |
6.5*2kw |
6.5*2kw |
4*4*4 |
4*4*4 |
4*4*4 |
4*4*4 |
Engine |
Cummins b3.3-c80 |
|
||||||
rated power |
45kw/2200rpm |
|
||||||
3.Features of articulating boom lift
1)--- truck mounted boom lift is used for maintenance or aerial work, can also move a short distance.
2)---It can move upside and down automatically, be operated both in the up basket andground
3)---With compact structure of lift could be used in tight space.
4.Advantages of articulating boom lift
1)Lifting condition: 360 degree rotation
2)Working Platform: Load capacity: 230kg
3)Controller: enables user control lift freely on platform or ground.
4)provide high-provide stability when working.
5)Hydraulic boom: working by the power of hydraulic cylinders of storage battery.

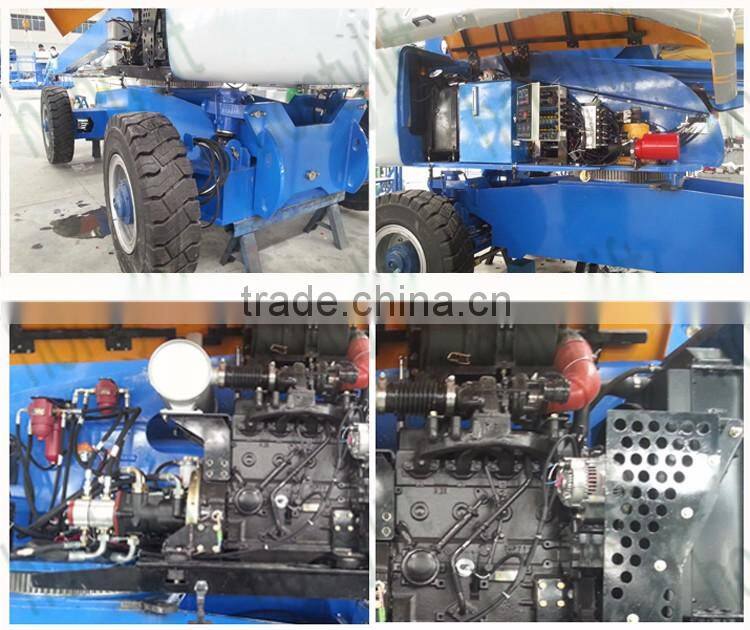

5.Detailed pictures
1)Extendable axle
when the axle extend ,the whole machine can be operated stably, when the axle retracts ,the storage and
movement space occupied be narrowed

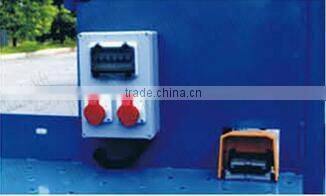

2)power and gas supply in platform
As per the requirement Oscar users ,the platform can be equipped with AC380v power and compressed
air pipe to meet the user’s special requirement

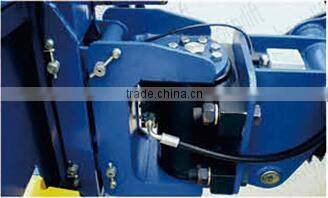

3)Complete safety devices
Standard configuration include four-link weighing devices ,overload protection ,automated detection device
for detecting platform amplitude and height (automatic amplitude limiter ).automatic control of the movement
speed of the boom and traveling speed ,and high precision load sensor ,to ensure the safety and stability
in all directions
if you are interested in our products,welcome to contact me at any time.
JINAN HONTYLIFT MACHINERY CO.,LTD
Grace Guo
skype:guohuihui
tel:+008653182637199
whatsapp:+008615054193004
wechat:grace88_08
