12mChinese High Quality Factory outlets trailer mounted boom
1.Product Description of trailer boom lift
1)Introduction :
1)It is used for maintenance or aerial work ,can also move a short distance
2)It can move upward and downward automatically ,be operated both an platform or ground
3)With compact structure of lift could be used in tight space
4)Drive motion :2 wheel driving or 4 wheel driving optional
2)Type list of trailer boom lift
Model |
HTZB-8 |
HTZB-10 |
HTZB-12 |
HEZB-14 |
HTZB-16 |
Platform height(m) |
8 |
10 |
12 |
14 |
16 |
Max. work height(m) |
10 |
12 |
14 |
16 |
18 |
Max. horizontal extent(m) |
3.5 |
4m |
5.5m |
6.5m |
7m |
Rotation |
360° |
360° |
360° |
360° |
360° |
Platform capacity(kg) |
200 |
200 |
200 |
200 |
200 |
Platform Size (mm) |
1100*700 |
1100*700 |
1100*700 |
1100*700 |
1100*700 |
dimension (m) |
5.2*1.6*1.9 |
5.4*1.6*1.9 |
6.4*1.8*2.2 |
6.8*1.8*2.2 |
7.2*1.8*2.4 |
2.Features of trailer boom lift
--- truck mounted boom lift is used for maintenance or aerial work,
application field mainly in construction, shipyard, industrial, airport, municipal garden or others
can also move a short distance.
--It can move upside and down automatically, be operated both in the up basket and down drive seat
---With compact structure of lift could be used in tight space.
3.Advantages of trailer boom lift
---Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.
--- With four full-automatic hydraulic legs,it can be more stable.
---Boom rotation 360°, so it can work across the barriers.
1)Lifting condition: 360 degree rotation
2)Working Platform: Load capacity: 200kg
3)Controller: enables user control lift freely on platform or ground.
4)Automatic hydraulic support legs, provide high-provide stability
when working.
5)Hydraulic boom: working by the power of hydraulic cylinders.
4.Safety of trailer boom lift
1).Explosion-proof valves :protect hydraulic pipe ,ant-hydraulic pipe rupture
2).Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure
3).Emergency decline valve ::it can go down when you meet an emergency
4).Phase lack &phase dislocation protection .

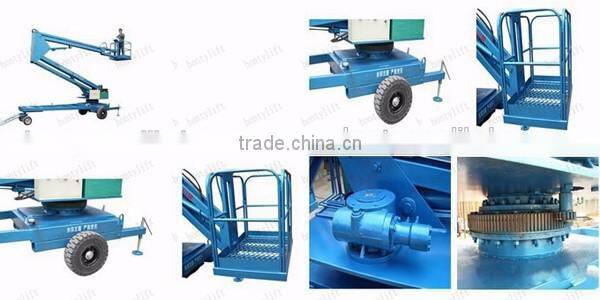

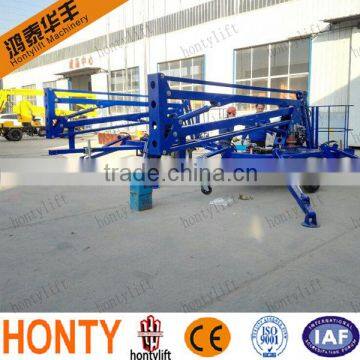

5.Detailed pictures of trailer boom lift

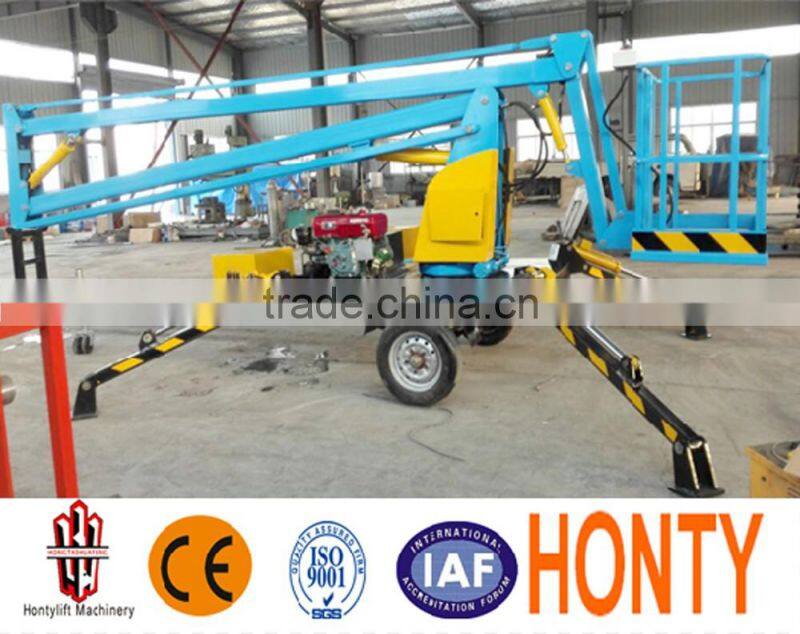

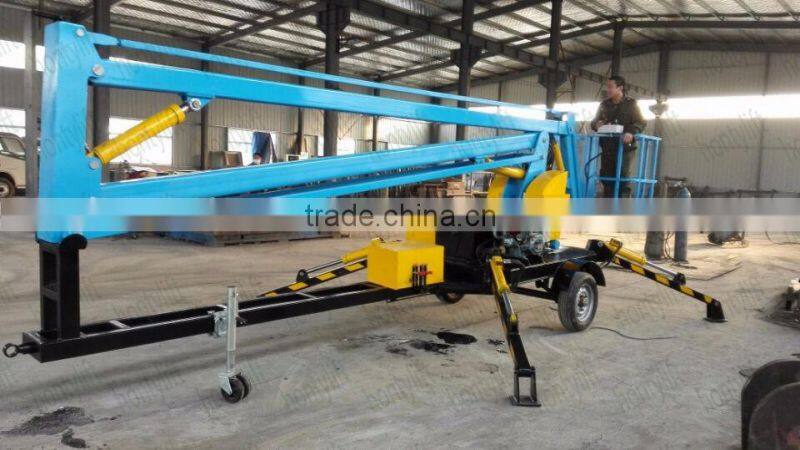

1)12m trailer boom lfit

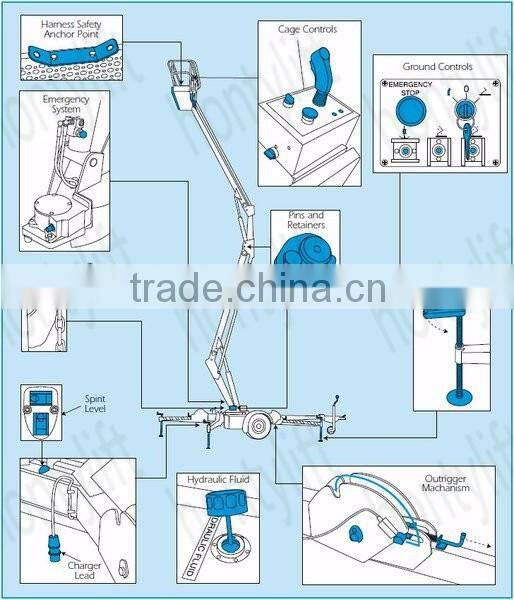

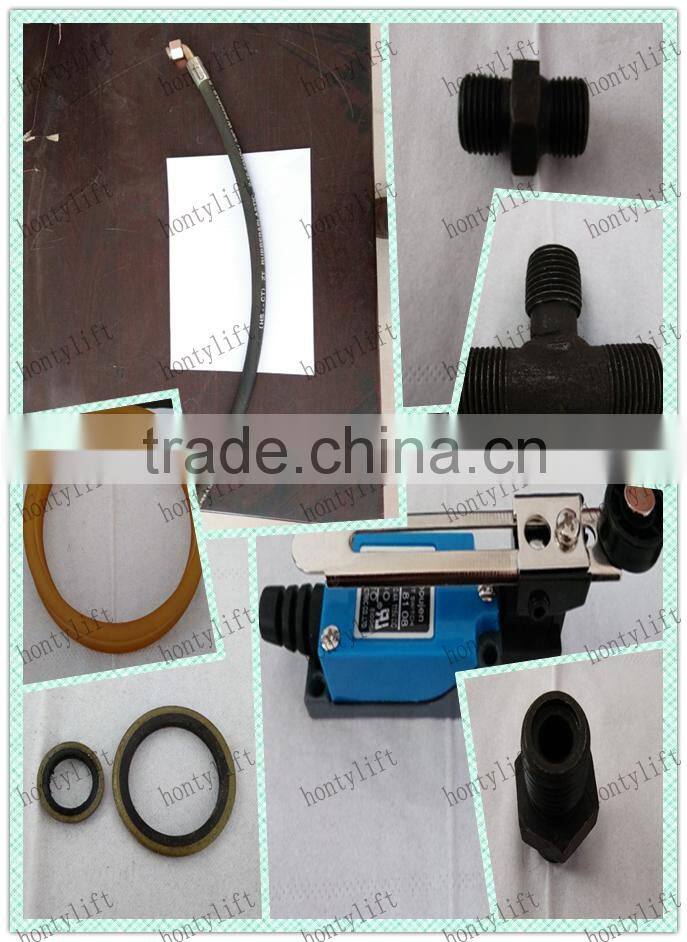

6.Main parts of trailer boom lift
| Packaging Details: |
1) Internal packaging:be packed air bubble film inside first 2) External packaging:be packed in wooden cases |
|---|---|
| Delivery and shipping Details: |
1)Usually be shipped by maritime transport 2)if it is landlocked countries, generally |
Our product are be approved by CE and ISO9001.and we can provide
1-year after-sale service apart from man-made damaged
If you want to customize the products,please provide below details:
1- Lifting Capacity
2- Lifting height
3- Platform size
4- working height
5- Other special needs
Any confusing,please contact us directly.
JINAN HONTYLIFT MACHINERY CO.,LTD
Grace Guo
Skype:guohuihui
Tel:+008653182637199
Whatsapp:+008615054193004
Wechat:grace88_08
click here to send an inquiry to me
Tips:
1)please include your special requirment such as the load capacity ,platform size
2)OEM support
3)Port of Destination (specific ocean freight ,please contact me .)
4)other requirment
