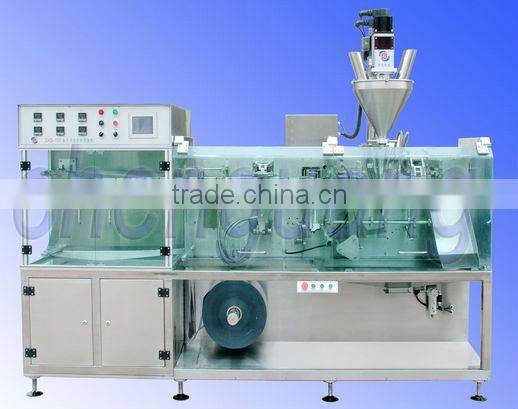

DXD-130 Horizontal Automatic Packaging Machine

DXD-130 Horizontal Automatic Packaging Machine photo-1
US$ 1 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Food, Medical
Packaging Type Bags, Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 3 phase 4 wire, 380V AC
Power 3.5kw
Place of Origin Jiangsu, China
Brand Name JING JIU
Model Number DXD-130
Dimension(L*W*H) (L) 2850mm x (W) 1050mm x (H) 2260mm
Weight 900kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

DXD-130 Horizontal Automatic Packaging Machine contains motor film releasing, film forming, bottom sealing, vertical sealing, pouch pulling - cutting - opening - filling - transferring - top sealing.  At last, the sealed pouch will be manually put into boxes or cartons.  The machine has beautiful appearance, with organic glass cover can help to prevent the flowing of dust which is more environmental-friendly.







Main performance & Characteristics:

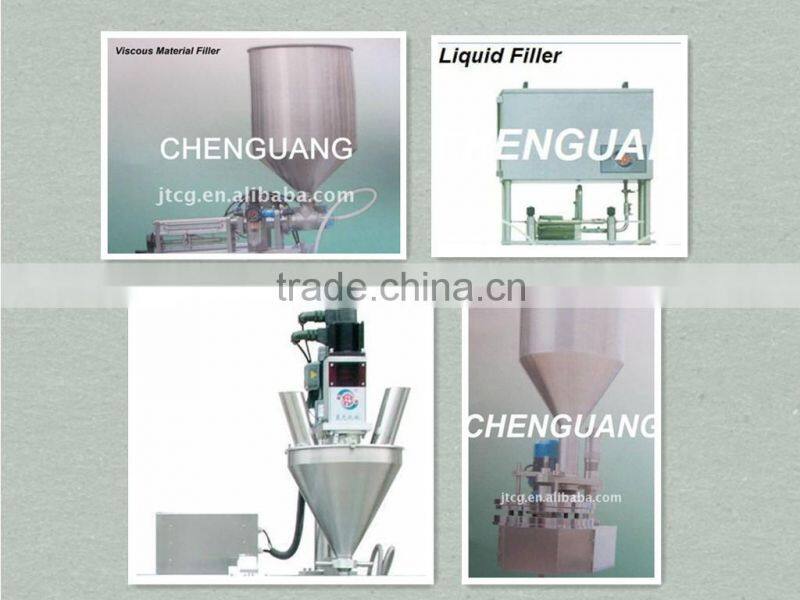

1. This machine is to Fill & Seal flexible pouch with particulate, powder, liquid or viscous liquid.  Multihead weigher, Auger filler, Piston filler and volumetric filler can be changed easily for different packing stuff.



2. Use PLC programmable system, pneumatic control system and color touch screen to form the control center.



3. It can be shift to do the 3 sides and 4 sides sealing easily.



4. Machine use stainless steel (316/ 304) for excellent durability and sanitation compliance, the whole machine designed according to GMP standard.



5. Tear notch device and Date coding printer are attached with machine.



 DXD-130 Horizontal Automatic Packaging Machine

DXD-130 Horizontal Automatic Packaging Machine

Technical Parameters:

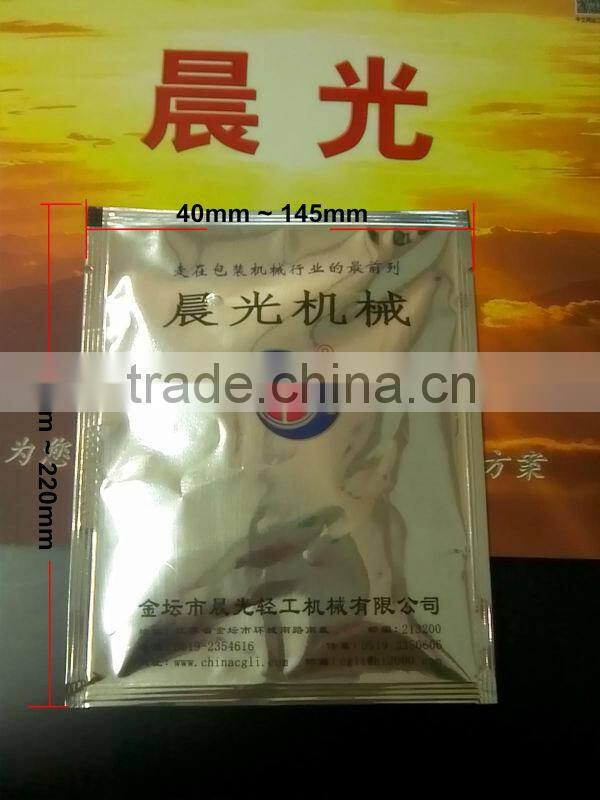

Packing size

(W) 60~145mm x (H70~220mm

Filling Range

120g/ (Liquid)

Filling speed

70 bags/ Min (Depend on products)

Filling Accuracy

≤±1%

Roll film diameter

≤ 450mm

Working Voltage

3 phase 4 wire, 380V AC

Power

3.5KW

Air Pressure

0.6Mpa

Gas Consumption

0.6m3/min

Material

Stainless Steel 316 & 304 (upon request)

Dimension

(L) 2850mm x (W) 1050mm x (H) 2260mm

Weight

900 Kg

Country Origin

China



 DXD-130 Horizontal Automatic Packaging MachineDXD-130 Horizontal Automatic Packaging Machine
