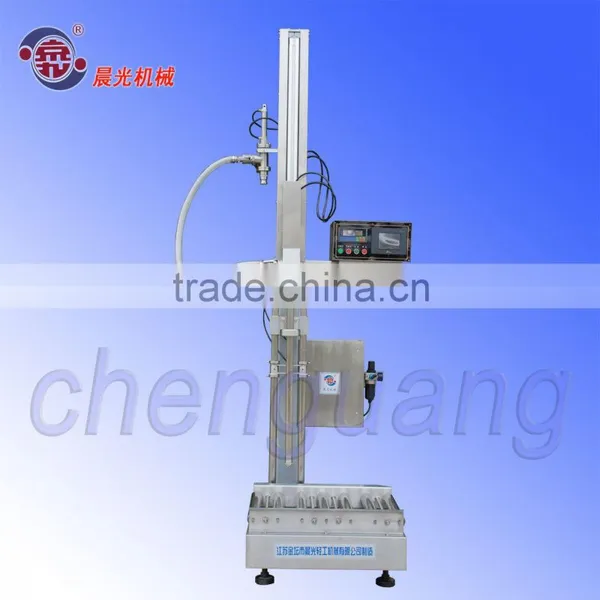

Help CenterCDP-1W-250L Filiing Machine(Weighing)
Related Products
-
CCG-2B Semi-automatic Bag- In-Box Filling MachineUS$ 8,800 - 9,600MOQ: 1 Set -
CCG500-1 Semi Automatic Wine Filling MachineNegotiableMOQ: 1 Set
-
Two Head 1L Manual Oil Liquid Soy Liquid Shampoo Lotion Liquid Filling MachineUS$ 1 - 10,000MOQ: 1 Set
-
Semi Bag in Box Filling Machine and Bottle Filling Machine ( BIB Filling and Capping Machine)US$ 1 - 4,000MOQ: 1 Set
-
24 Heads Bottle Toilet Water Filling MachineNegotiableMOQ: 1 Set
Technical performance:
The filling process is under control of PLC. All operations complete on the touching screen.It is equiped with weighing feedback system.It is an ideal kind of weighing fillinging equipment within chemical,daily chemical,food,medicine,cosmetic and pesticide industry etc.
It has properties of reliable and stable performance.high efficiency,good adaptability,changing the measuring specification in minutes(no need to change any components,just adjust ),eco-friendly outer frame,filling without drop and leak.It is the most ideallest large dose filling machine with weighing requirements.
Performance advantages:
1. Control system----Mitsubishi PLC control system, random minitrimming filling measurement
2.Control panel----Colour touching screen,easy-operated , stable and reliable
3. Function improvement----The feeding nozzle is equipped with filling blocker. This machine can realize diving filling according to the material properties.(this function can be selected)
4.Real-time alarm----Automatic alarming ,when the fault happens,automatic stopping and alarms when the system
appears serious breakdown.
5.Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.
Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose.Other machine parts use the 304 high-class stainless steel.
6. Counting detection----Real- time counting,reflecting the output directly.
7.Function improvement----We have designed intelligent weighing feedback system to realize the unmanned debugging function.(we having obtained the China patent, counterfeiting not allowed)
8.Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
9.Conveying design----Adopting rollway conveying model,saving time and labor.
Technical parameters:
1.Filling head:1 head (1~2 heads can be selected)
2.Application: 100L-250L
3.Voltage: 220V/380V
Power: 1.5Kw
4.Suitable barrel diameter: ≤600mm(various barrel types)
5.Filling error: ≤±1‰
6.Filling Speed: ≤30barrles/hour(250L water for test)
7.Overall dimension: 600mm × 800mm × 2800mm
8.Machine weight: 300 kg
9.Air source requirements: clean 0.55Mpa-0.65Mpa air
10.The distance between rollway and the ground: 300mm-400mm
11.The feeding requirements:The head tank nozzle should be not less 4m higher than the ground.( The cycle can be pumped)
