CDP-24S Automatic Filling Machine (Double Row)

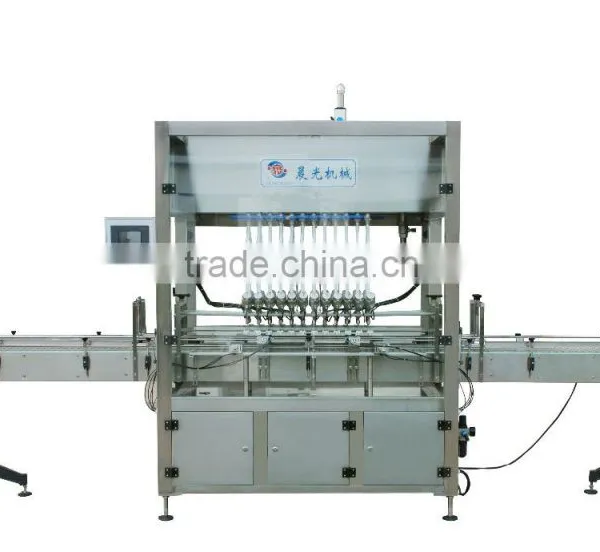

CDP-24S Automatic Filling Machine (Double Row) photo-1

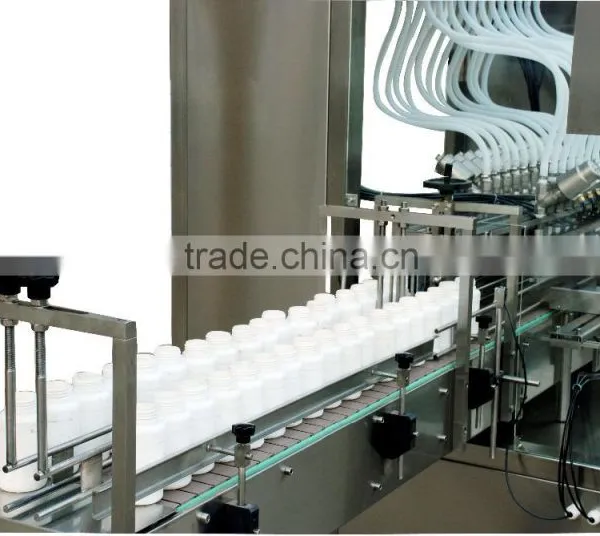

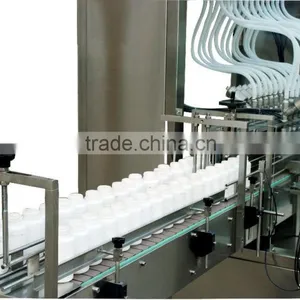

CDP-24S Automatic Filling Machine (Double Row) photo-2

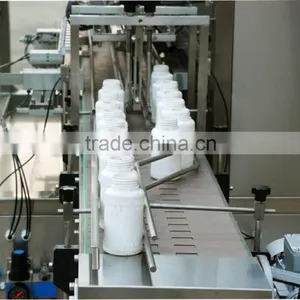

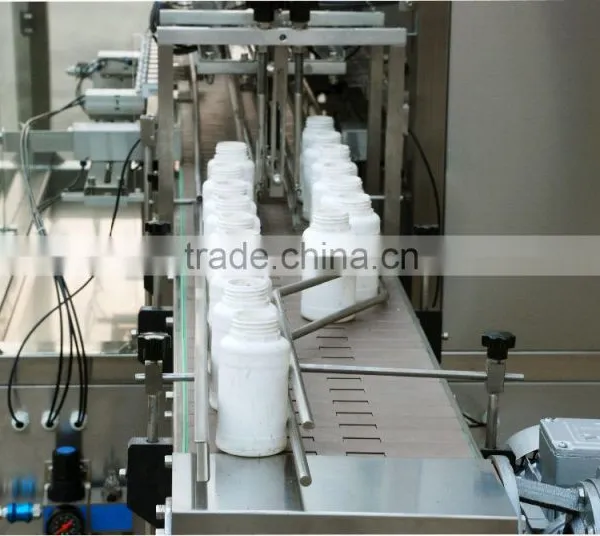

CDP-24S Automatic Filling Machine (Double Row) photo-3
US$ 1 - 19,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles
Packaging Material Glass, Metal, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220/380V, three-phase four-wire
Power 1kw
Place of Origin Jiangsu, China
Brand Name JING JIU
Model Number CDP-24S
Dimension(L*W*H) 2000mm*1300mm*2500mm
Weight 950kg
Certification ISO9001 & ISO14000
After-sales Service Provided Engineers available to service machinery overseas

Product introduction



This is a double-row filling machine, saving the space and cost, and improving the production efficiency. Extra anti-leaking and diving filling devices can be selected for special materials. It also has the breakdown alarming and filling testing functions. It is suitable for filling non-viscous liquid within the industries such as foods, medicines, chemicals, pesticides and so on. It is in accords with GMP, and the parts contacting with the material uses high quality stainless steel.



Main Technical parameters:

1.Filling head : 24 heads ( 28/32 heads can be selected )

2.Volume:40ml -1000ml

3.Applicable bottle dia. : 40mm-100mm

4.Speed: ≤9000 bottles/hour (tests with 250ml water)

5.Voltage: 220/380V, three-phase four-wire

6.Power: 1kw

7.Air pressure: 0.55-0.65Mpa

8.Air consumption: 0.3~0.8 m3/min

9.Filling precision: ≤±1%

10.Dimensions: 2000*1400*2500mm

11.Weight: 600kg




CDP-24S Automatic Filling Machine (Double Row)CDP-24S Automatic Filling Machine (Double Row)CDP-24S Automatic Filling Machine (Double Row)

Contact:



Jennifer





JIN TAN CHENGUANG LIGHT-INDUSTRY MACHINERY CO., LTD



ADD: No. 198, 2nd Road, South Circle Jintan, Jiangsu Province, China



QQ:  1241498672



Tel: (86) 519 - 6808 8770



Cell: (86)158 5191 4712





 Outside: Standard Export Wooden Case Pack

CDP-24S Automatic Filling Machine (Double Row)  Inner: Stretch Film
