Main Characteristics:

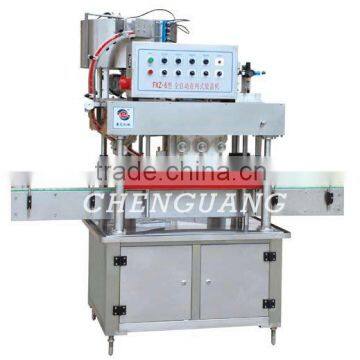

1) FXZ-6 in-line structure screw capping machine is made up of cap sorter, cap falling rail, bottle-tightening belt and capping wheels. With the help of the belts, the machine can finish the movement of cap scratching, pushing and screw capping. An extra non-foil rejecting device are optional, which is able to reject the caps without aluminum foil, make sure 100% accuracy of foil inside the cap.
2) This machine is applied to the capping of round, square and flat bottles, material in plastic, glass and metal are all acceptable. No need to change any components, easy to realize changing the bottle types by simple adjusting. The structure is easy to understand and adjustments, is convenient to master. No cap dispatch if there is no bottle in place.
3) Machine use stainless steel (316/ 304) for excellent durability and sanitation compliance, the whole machine designed according to GMP standard, easily to disassemble and clean.
4) Machine adopting world famous brand electrical elements to ensure the quality and stability.

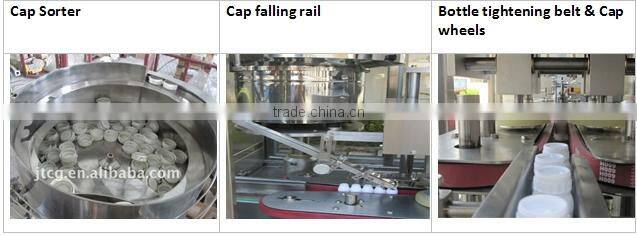

Conponent Images:
Technical Parameters:
Capping Wheel |
: 6 wheels |
Suitable cap diameter |
: Φ20 ~72mm |
Capping speed |
:≤8,000bottles/ hour |
Capping accuracy |
: 99.99% |
Working Voltage |
: 220V/ 380V AC three-phase and four-wire |
Power |
: 2KW |
Air Pressure |
: 0.55~0.65Mpa |
Air consumption |
: 0.6m3/min |
Material |
: Stainless Steel 316 & 304 (upon request) |
Dimension |
: (L) 2000mm x (W) 950mm x (H) 2100mm |
Weight |
: 400 Kg |
Country Origin |
: China
|
Please feel free to send me email if you'd like to view machine video.

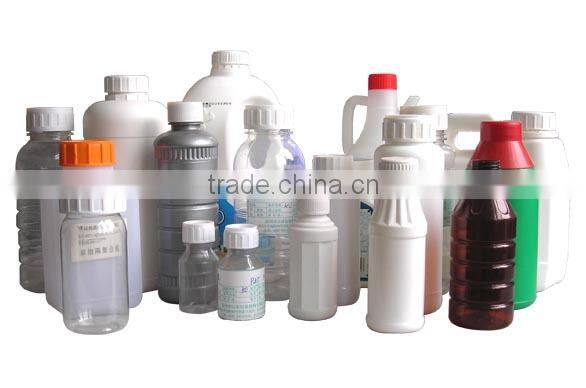

Suitable products:
1. Technicial guidance & Pre-maintain;
2. Quality guarantee for 1 year.
3. Able to send engineer to install & maintain. (Hotel & delivery fee paid by customer);
4. You are welcome to share us the sample to test machine;
Outside: Standard Export Wooden Case Pack
Inner: Stretch Film
