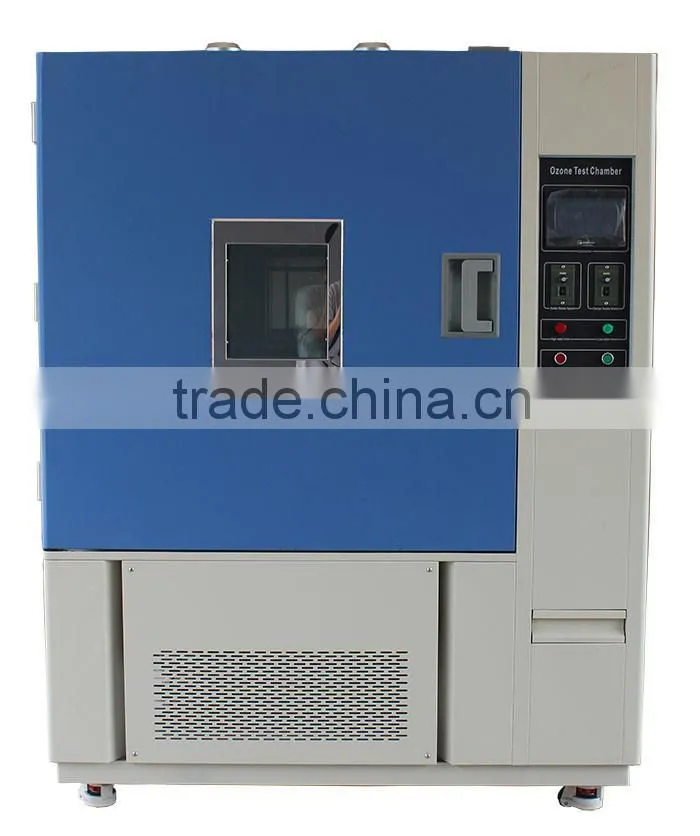

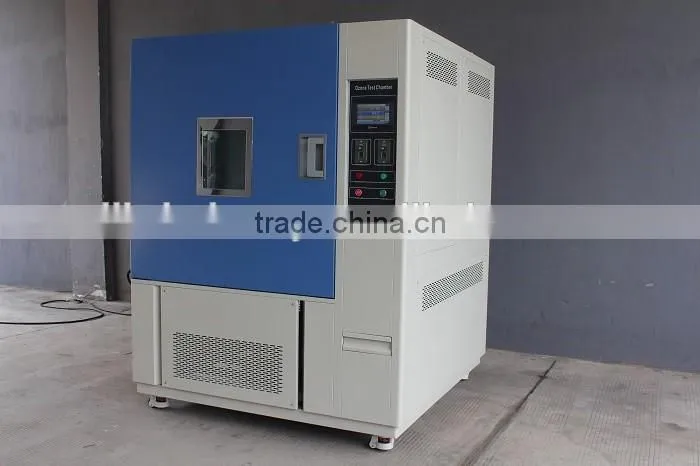

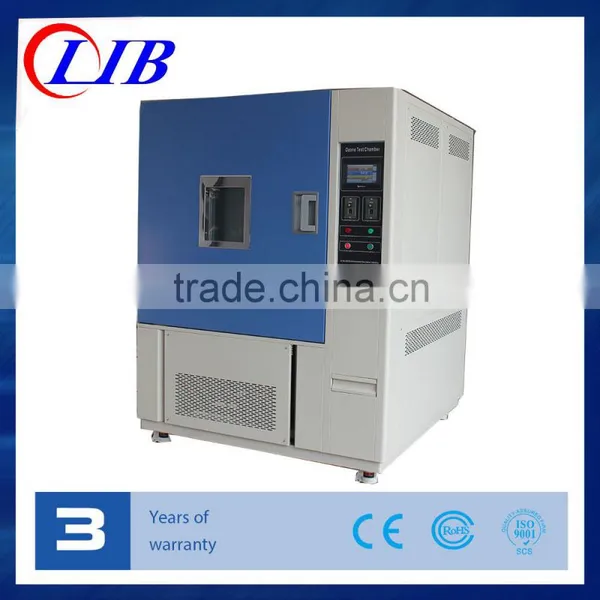

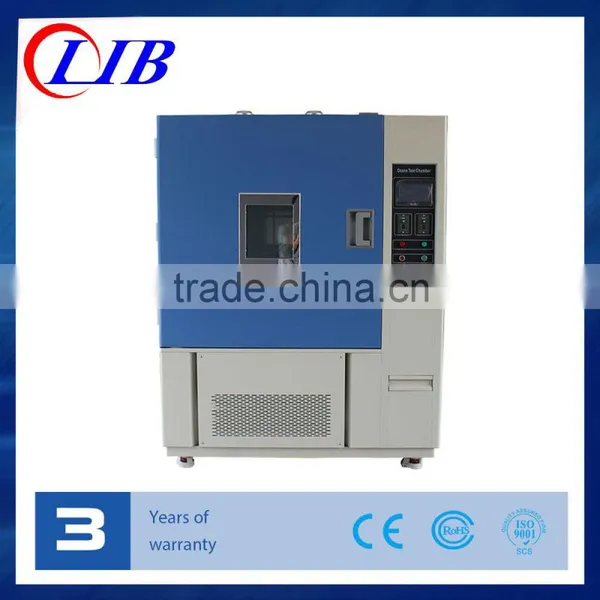

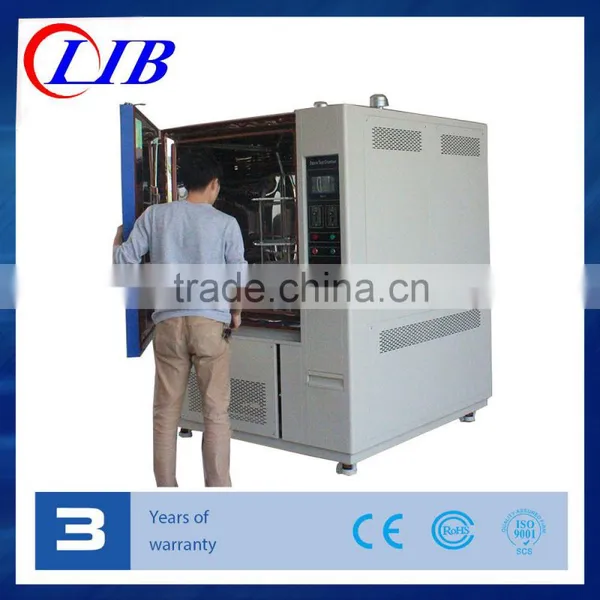

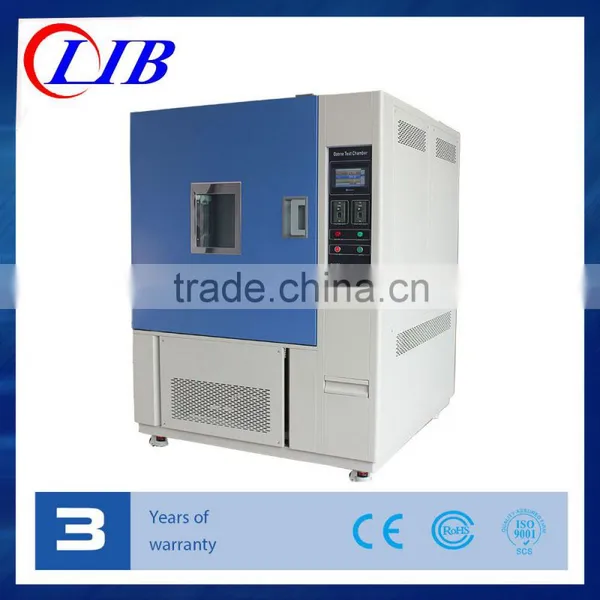

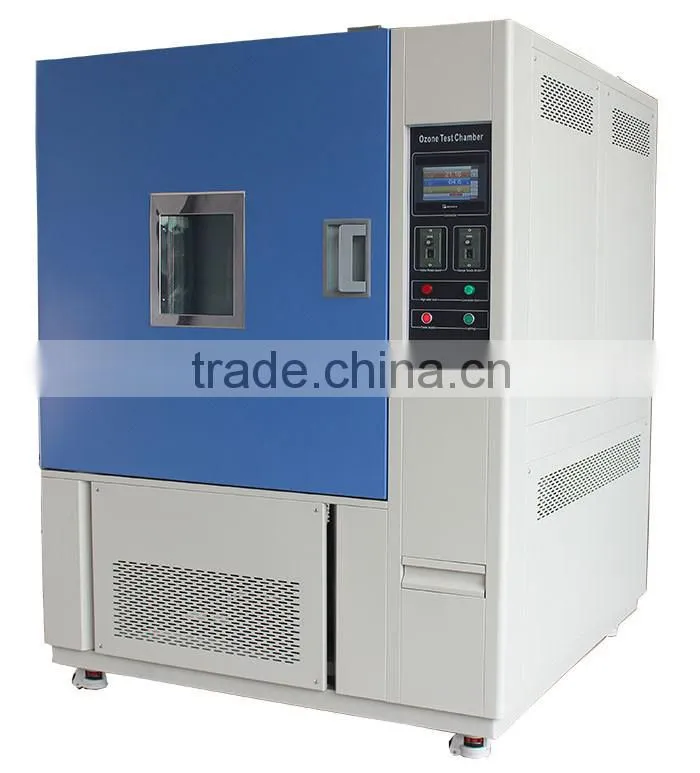

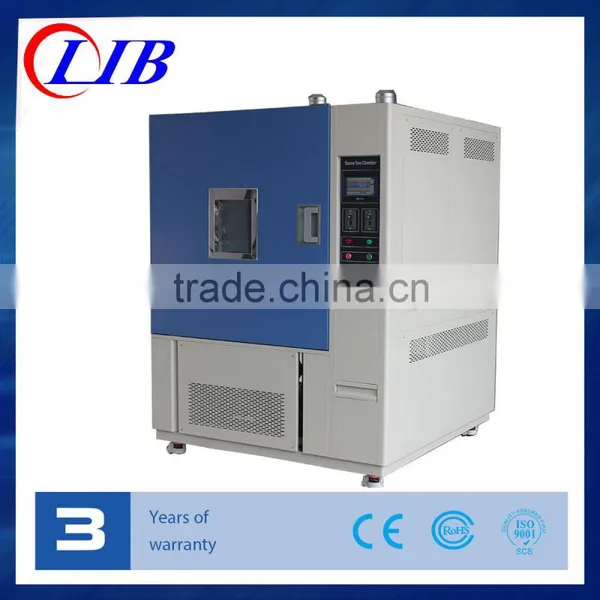

Ozone Testing Chamber
APPLICATION
This series is applicable for the aging cracking test of non-metal materials and rubber products. Simulation and strengthen the ozone in the atmosphere conditions, to predict the product life, and based on this to improve the quality of products.
SPECIFICATIONS
Model |
OC-100 |
OC-250 |
OC-500 |
OC-800 |
OC-010 |
|||
Internal dimensions (mm) |
400*500*500 |
600*600*700 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|||
Overall dimensions (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
|||

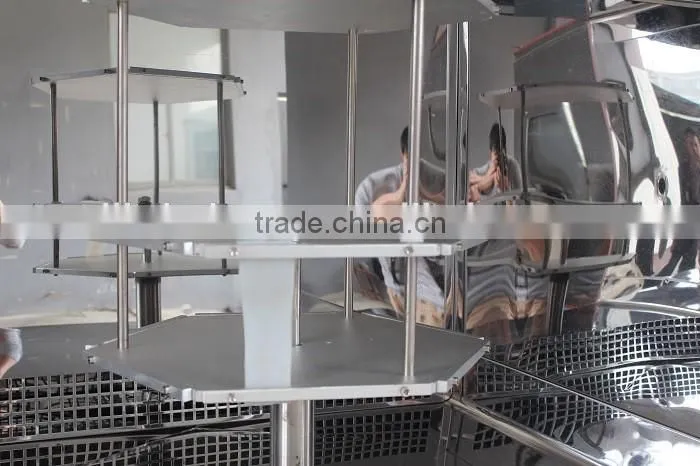

Diameter of holder (mm) |
350 |
400 |
600 |
700 |
900 |
|||
Length of each side (mm) |
150 |
180 |
220 |
350 |
460 |
|||
Temperature range |
0℃~100℃ |
|||||||
Humidity range |
30% - 98%R.H |
|||||||
Temperature fluctuation |
±0.5℃ |
|||||||
Speed rate for cooling: |
Environmental conditional ~ 0℃ within 20 min. |
|||||||
Timing range: |
0~999 hours |
|||||||
Ozone concentration: |
1~1000PPHM (Adjusted) |
|||||||
Sample holder rotate speed: |
0~10 r/min (adjustable) |
|||||||
Clamps tensile stretch : |
5%~35% |
|||||||
Max. ozone concentration: |
120gO3/m³ |
|||||||
Ozone output: |
3.5gO3/h ((oxygen input, flow rate 100L/h) |
|||||||
Standard |
ASTM D 1149; IEC60811-403 |
|||||||
Nominal power |
5500W |
6000W |
7500W |
9000 |
11000W |
|||
Power & voltage: |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
|||

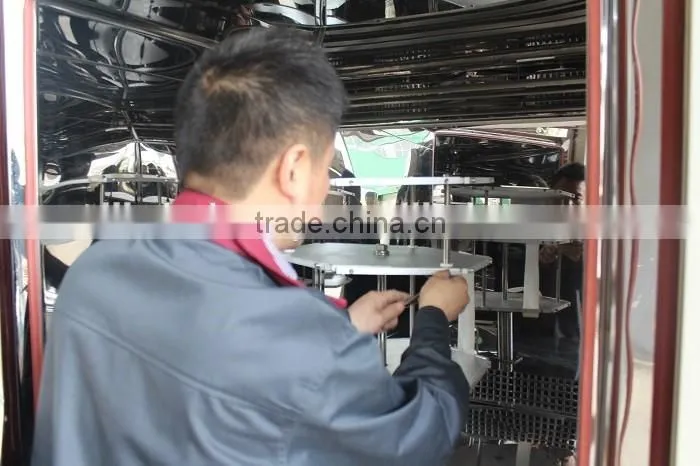

CONSTRUCATION
Warranty & service |
|
About Us Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries. LIB adhered to "Quality", "Service", and "Trust". CE & ROHS certificates. LIB main products are Temperature and humidity climatic test chamber Salt spray test chamber & CCT IP test chambers Weathering test chambers Ozone test chamber Sulfur dioxide corrosion test chamber Drying Ovens Walk-in chamber |
