Welcome To Ask For DB-C900
single punch tablet press machine
Description:

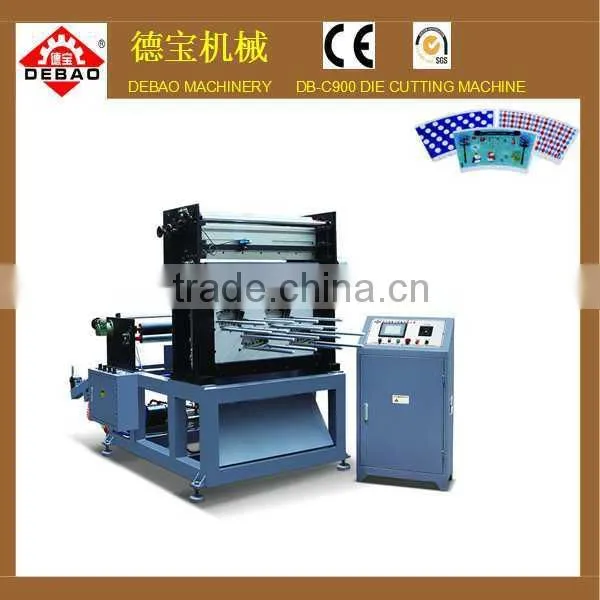

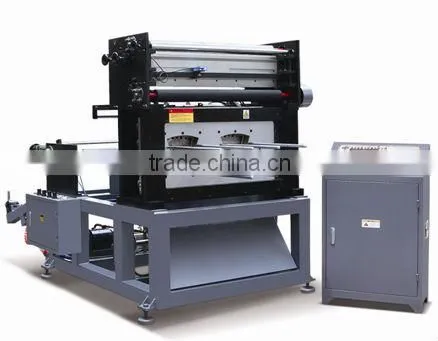

DB-C900 Automatic Die Cutting Machine adopts the technology cutting of automatic punching. It can make the slitting, die cutting and clearing the waste of paper done together. So the machine has less steps than those with the traditional cutting technology, which can eliminate some loss of the raw material in cutting, and can improve the rate of the utilization of raw materials and finished goods effectively. The machine removes the waste clearing step in traditional procedures and cuts the pattern paper directly which are in good quality and looks nice. So it is a good machine which can not only largely reduce the consumption and manpower of worker, but also reduce worker's labor intensity. It is ideal equipment for cutting many kinds of paper container, such as disposable paper bowl, paper cup, paper meal, paper box, lable paper, etc. It adopts professional high definition gas feeding paper structure, distinctive electronic protector and automatic feeding paper and collecting paper orderly.It is controlled by PLC, which makes the whole working procedures are automatic. And through the PLC control, the worker can get the whole data of the working machine, such as the speed, the power of motor, the amount of the pattern paper and so on. If you want to produce different pattern paper, what the worker can do is that changing the parameters on the interface of PLC. What's more, the important parts of machine are imported from Japan and Germany. From the above, this machine can run stably, locate correctly and operate safely, reliably and easily.
Main technical Parameter:
Cutting speed |
100-250 times/min |
Required paper |
135-400g/m2,width:355-880mm |
weight |
2100kg |
Paper widthMax |
950mm |
Way of cutting |
Die cutting (fit for roll paper) |
Mould board size |
950mm×420mm |
Total power |
380v 50Hz 6.3kw |
Main roller length |
1000mm |
Size(LXWXH) |
3000×1600×2000mm |
Control system |
PCL control AC-Sero Motor |
Working process:
Cut From Paper rolls to paper blanks/fans/sheets.
Packing&Container:
World wide customers:
Contact : Jane
QQ:2590014973
Skype: jane9_cn
