fish meal equipment
We are manufacturing Feed Pellet Machinery and animal feed plant, and our all products have go CE and ISO9001:2000 Certificate.
Feature
1. Gear directly-conneting driving is adopted for high efficiency;
2. Full stainless steel feeder, variable pitch anti-bridging structure; Imported FC control.
3. All stainless steel conditioner with axial steam spraying extends the contionning and cooking time;
4. Main grear and pinion shaft adopted the carbonizing quenching with high accuracy; smooth driving ,low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication.

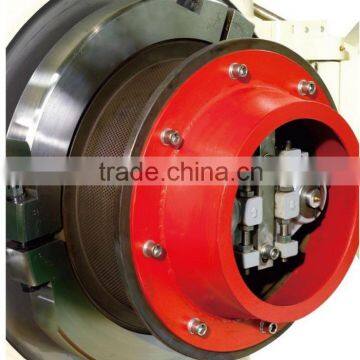

7. 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quil flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion alility and long service life;
9 The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient diassemling and assembling and more reliable use.
Main Technical Parameter
Model |
Power(Kw) |
Capacity(T/H) |
Power of conditioner (Kw) |
Power of feeder (Kw) |
Inner Diameter of Die (mm) |
Pellet Size(mm) |
SZLH250 |
11/15 |
0.5-2 |
2.2 |
0.55 |
250 |
Φ2-12 |
SZLH320 |
37 |
2-4 |
2.2 |
0.75 |
320 |
Φ2-12 |
SZLH350 |
55 |
3-6 |
2.2 |
0.75 |
350 |
Φ2-12 |
SZLH400 |
75/90 |
6-12 |
5.5 |
1.5 |
400 |
Φ2-12 |
SZLH420 |
110 |
6-14 |
5.5 |
1.5 |
420 |
Φ2-12 |
SZLH508 |
132/160 |
6-20 |
7.5 |
1.5 |
508 |
Φ2-12 |
SZLH600 |
185/200 |
8-25 |
11 |
1.5 |
600 |
Φ2-12 |
SZLH800 |
280/315 |
15-28 |
15 |
1.5 |
800 |
Φ2-12 |

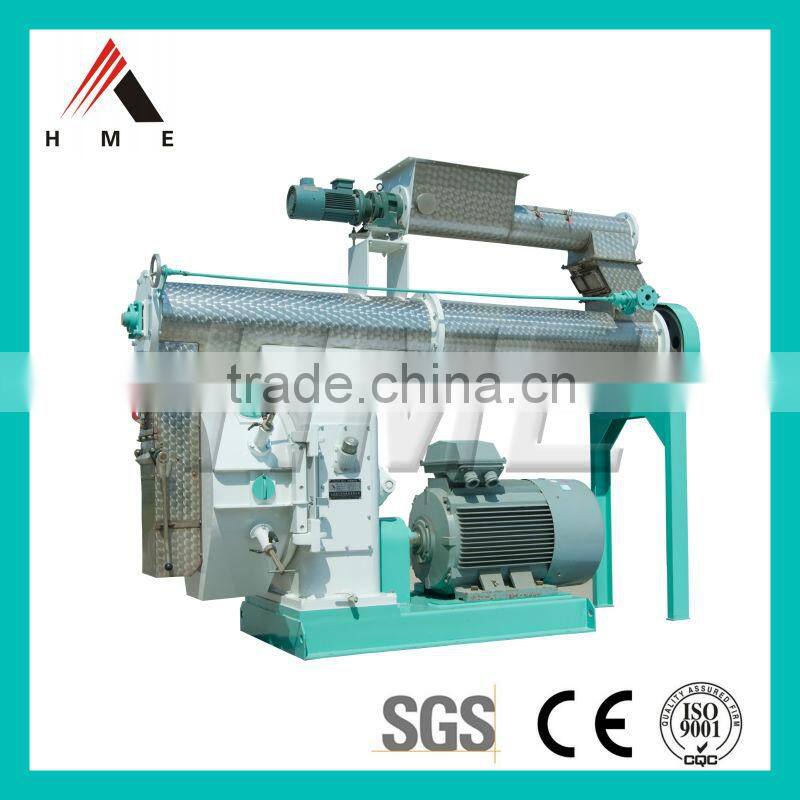

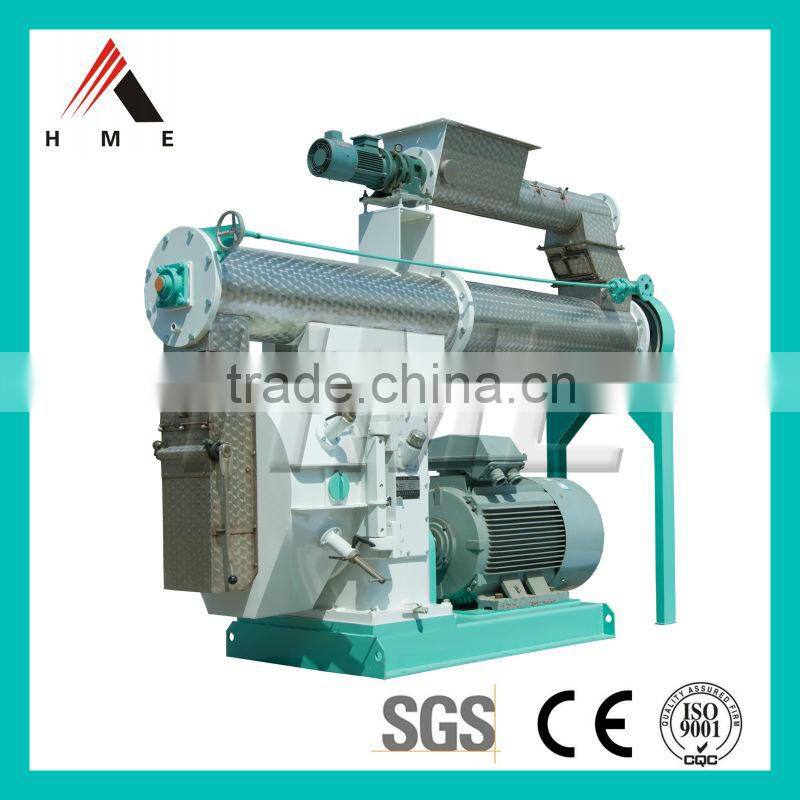

SZLH Feed Pellet Mill
| Questions | |
|
We attended the Agrena Fair in Egypt, A lot of Africa and Middle east customers interested our products and come to our booth to discuss their case.
| Exported Equipment | |
|

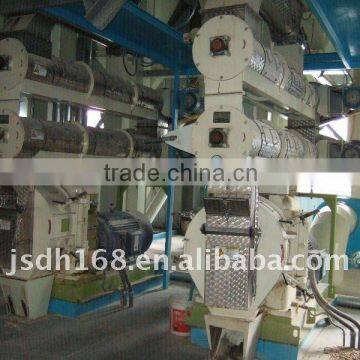

| Our Project | |
|
| Certification | |
|
If you are interested in our products, please click "send" now! Pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
