We are manufacturing feed mill complete project,biomass processing complete project,Compound fertilizer processing. We can also provide Grinding and Pulverizing; Dosing and Mixing; Pelleting; Extruding and Expanding; Cooling, Pellet Crumbler and Sieving machine; Stabilizing machine, Dryer, Coating and Bagging machine; Compact feed mill; Cleaning, Magnets and Aspiration; Conveying and Other universal equipment.

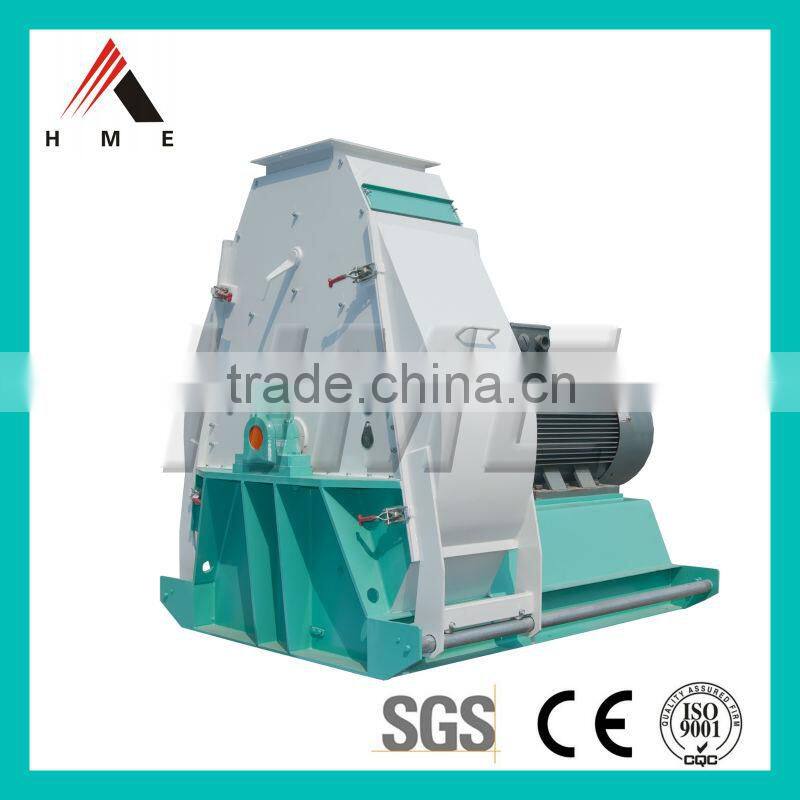

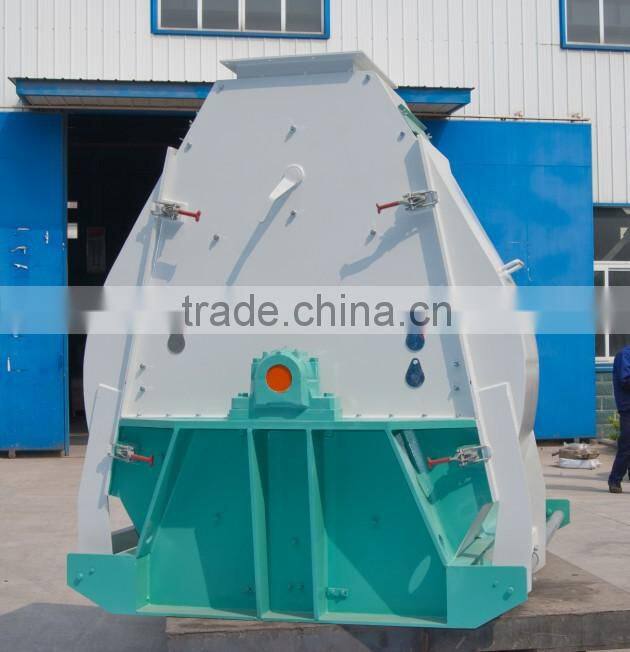

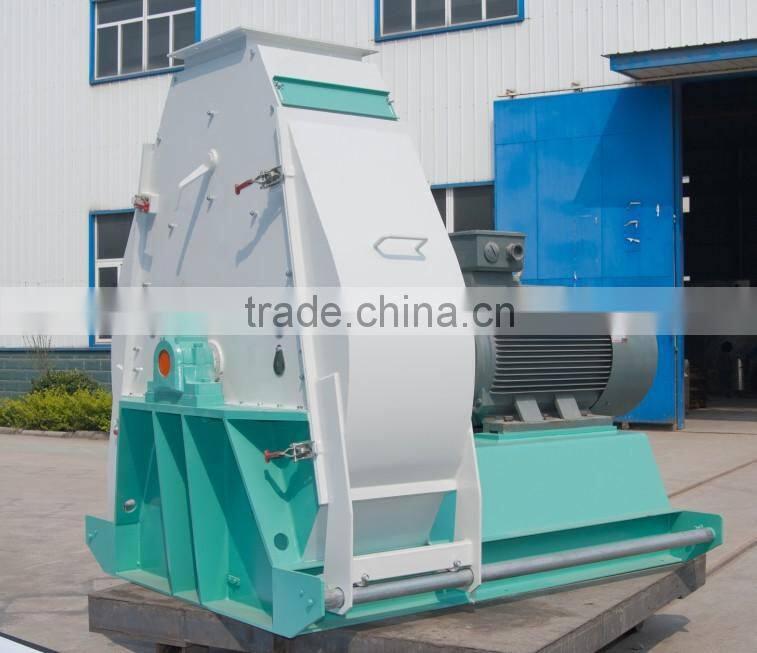

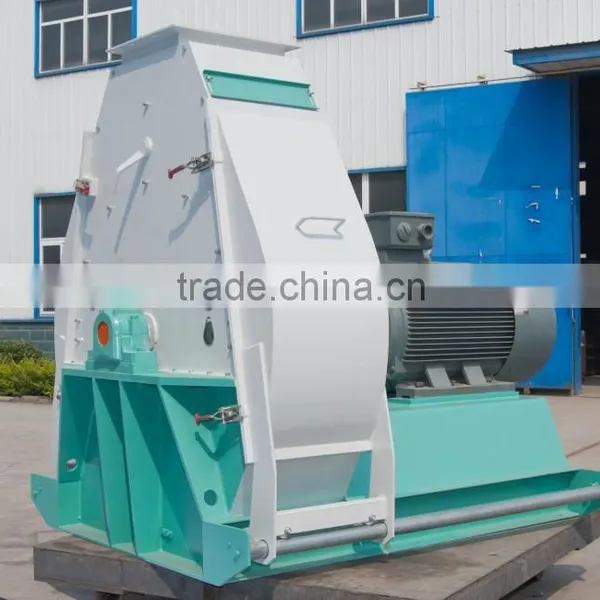

SFSP Feed hammer mill( Feed Grinder)
Features:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with more consistent particle size;

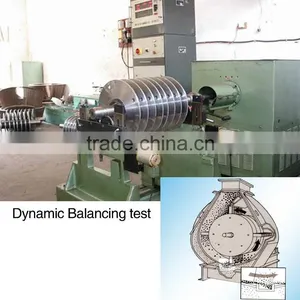

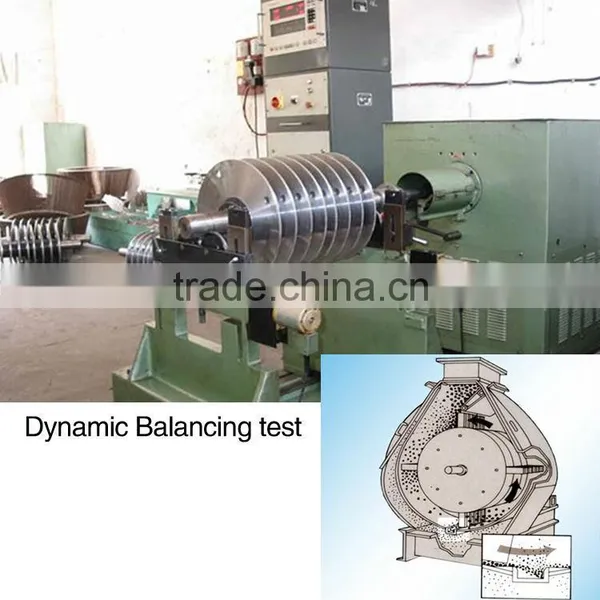

3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.

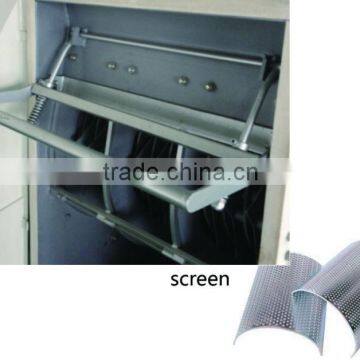

4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;

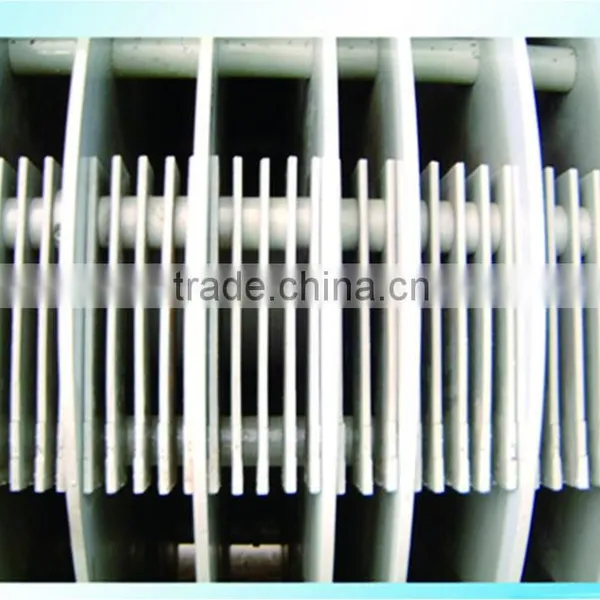

6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;

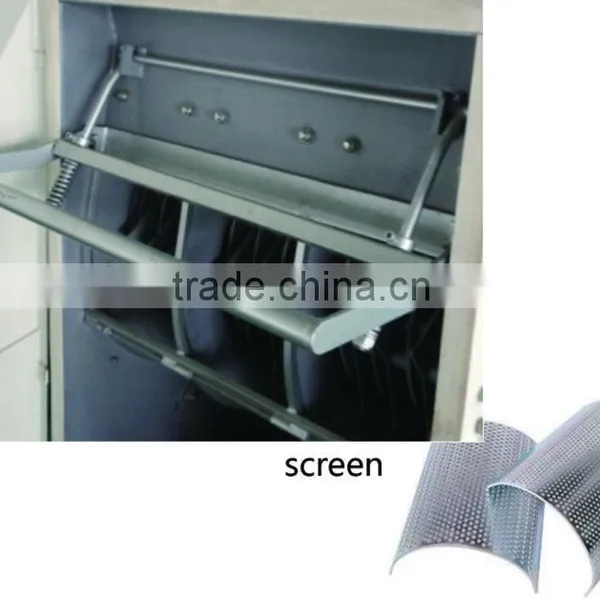

8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Main Technical Parameters:
Model |
SFSP56*36 |
SFSP56*40 |
SFSP60*30 |
SFSP60*45 |
SFSP60*60 |
SFSP60*75 |
Capacity(t/h) |
2.5--5 |
4--7 |
2--5.5 |
5--9 |
6--10 |
8--13 |
Diameter of rotor(mm) |
560 |
560 |
600 |
600 |
600 |
600 |
Width of chamber (mm) |
360 |
400 |
300 |
450 |
600 |
750 |
Speed of hammers (m/s) |
86 |
86 |
94 |
94 |
94 |
94 |
Hammer QTY(pcs) |
20 |
24 |
24 |
44 |
48 |
60 |
Speed of rotor (r/min) |
2980 |
2980 |
2980 |
2980 |
2980 |
2980 |
Sieve hole size (mm) |
φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0 |
|||||
Power (kw) |
18.5/22 |
30/37 |
18.5/22 |
45/55 |
75/90 |
90/110 |
|
Model |
SFSP112*30C |
SFSP112*38C |
SFSP112*50C |
SFSP112*60C |
SFSP112*75C |
|
main power (kw) |
55~75 |
75~90 |
90~132 |
110~160 |
132~200 |
|
capacity (t/h) |
6~14 |
8~18 |
15~25 |
15~28 |
30~40 |
|
Model |
SFSP138*30C |
SFSP112*38C |
SFSP112*50C |
SFSP112*60C |
SFSP112*75C |
|
main power (kw) |
55~75 |
75~110 |
90~160 |
110~160 |
160~200 |
|
capacity (t/h) |
6~14 |
8~18 |
15~25 |
15~28 |
30~40 |
|
Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen.
