Dust Test Chamber From China
Dust Test Chamber From China
This product is applicable for the dust proof and resistant test of various auto components and parts including lamps, meters, electric dust proof sheath, steering system and lock etc.
Main Technical Parameter
| Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
| Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1200*1800*1200 |
| Overall dimensions (mm) | 1050*1420*1820 | 1250*1420*1820 | 1250*1900*1820 | 1500*2200*2200 |
| Performance index | ||||
| Normal wire diameter | 50um | |||
| Normal width of a gap between wire |
75um | |||
| The Talcum powder amount | 2kg ~ 4kg/m3 | |||
| Fight time | 0 ~ 99H59M | |||
| Fan cycle time | 0 ~ 99H59M | |||
| Specimen power outlet | Dust-proof socket AC220V 16A | |||
| Control system | ||||
| Controller | 5.7" programmable color display touch screen controller | |||
| PC Link with software, R-232 interface | ||||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
|||
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |||
| Heating system | Independent Nichrome electronic heating system | |||
| Power supply | 380V 50HZ; | |||
| Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller |
|||
| Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208,and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. | ||||

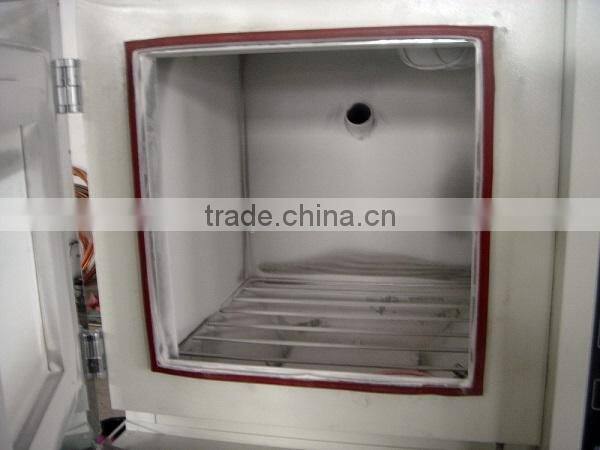

Test area and shelf
Test area is made from stainless-steel.
Chamber inside equipped with power interface for test specimen.
Control Panel
The controller is located on the right side of the test area.
Which is 5.7" programmable color touch display controller;

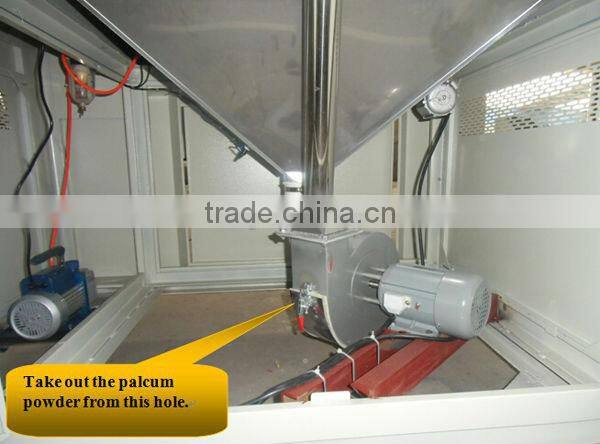

Vacuum system
Bottom of dust chamber is fitted with vacuum pump, a pressure gauge,
air filter, pressure regulator, connecting tube.
The vacuum system connect the pump, and the other side connected test specimen.
Safety protection
Independent over-temperature protection,
Over-current protection
Earth leakage protection
Motor overheating protection
Phase-lack protection
Dust Test Chamber From China
Lifelong Service
Warranty: 3 Years
Service:
Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products made by our company arise hardware problems caused by product itself rather than human error within three years warranty period since the date of delivery.
Firstly, we can provide the spare parts with you. And also provide the solution about the trouble of the products.
Secondly, Please send back the apparatus, which will be repaired by our company.
Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 18 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
