Sand/Dust Test Chamber for Environment Testing

Sand/Dust Test Chamber for Environment Testing thumbnail-1
Sand/Dust Test Chamber for Environment Testing thumbnail-2
Sand/Dust Test Chamber for Environment Testing thumbnail-3
Sand/Dust Test Chamber for Environment Testing thumbnail-4
Sand/Dust Test Chamber for Environment Testing thumbnail-5
Sand/Dust Test Chamber for Environment Testing photo-1
Sand/Dust Test Chamber for Environment Testing photo-2
Sand/Dust Test Chamber for Environment Testing photo-3
Sand/Dust Test Chamber for Environment Testing photo-4
Sand/Dust Test Chamber for Environment Testing photo-5
US$ 9,800 - 9,890 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
LIB
Model Number:
DI-800
Contact Supplier Request Quote Chat Now
Xi'an LIB Environmental Simulation Industry Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou Tianjing Shenzhen Dailian HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name LIB
Model Number DI-800
Power Electronic
Usage Universal Testing Machine



Product Description

          Sand/Dust Test chamber for Environment Testing

This product is applicable for the dust proof and resistant test of various auto

components and parts including lamps,meters,electric dust proof sheath, steering system and lock etc.

Sand/Dust Test chamber for Environment Testing







Model DI-800 DI-1000
Internal dimensions (mm) 800*1000*1000 1000*1000*1000
Overall dimensions (mm) 1050*1420*1820 1250*1420*1820
Performance index
Metal mesh diameter 50um
Nominal spacing between lines 75um
The Talcum powder amount  2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Control system
Controller 5.7" programmable color touch display controller
PC Link with software, R-232 interface
Vacuum system Equipped with vacuum pump, a pressure gauge, air filter, pressure regulating triple, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Power supply 380V 50HZ;
Safety Devices Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Note: The test chamber can meet the standards IEC60529 GB2423,GB4706, GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. It can’t meet a sand and dust test with wind source according to GJB150.





Design and Construction



Test area and shelf

Test area is made of stainless-steel

A shelf is located above the sieve and funnel, you can put

Test specimen on it.

Load of shelf is 50kg( if you need heavier load,

please confirm with us).

And we reserve power interface for test specimen.

Sand/Dust Test chamber for Environment Testing

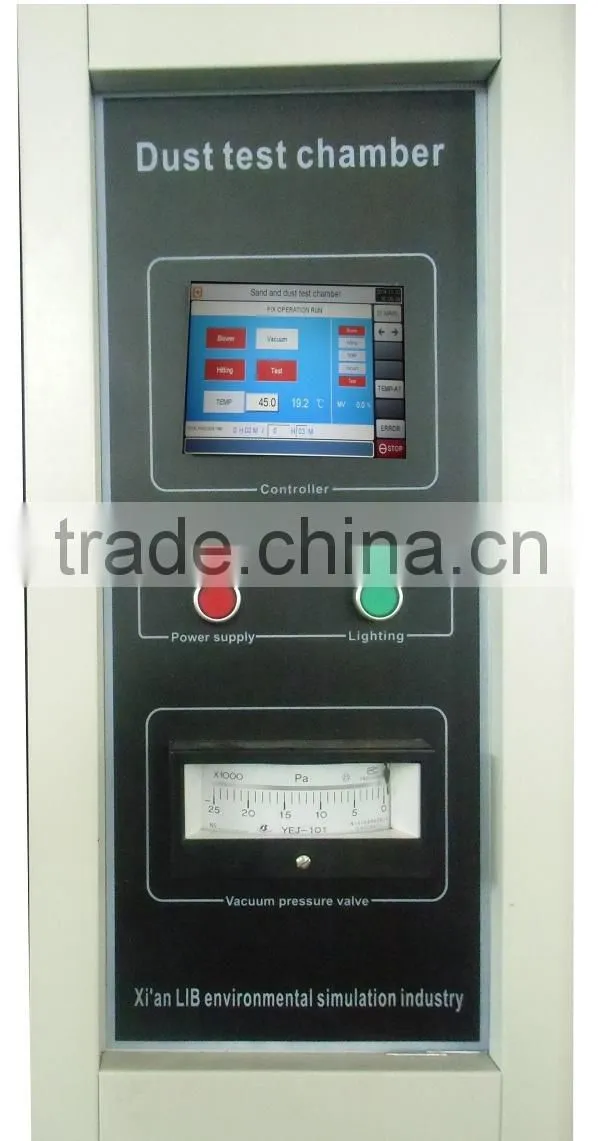

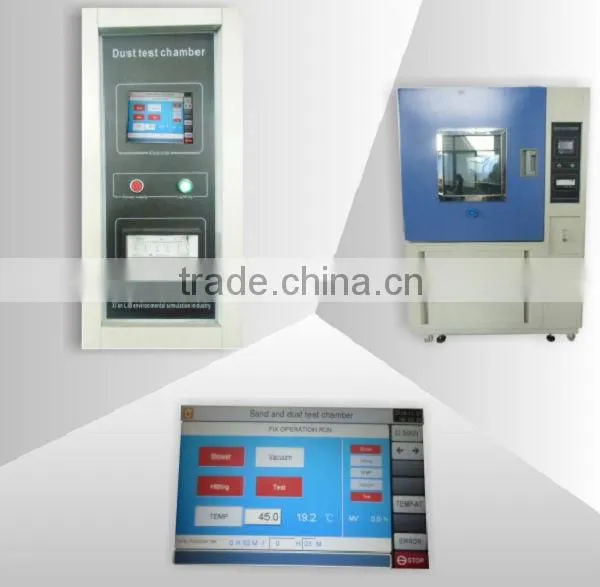

Control Panel

5.7" programmable color touch display controller

99 programs 99 sections

R-232 interface

PC Link with software



Sand/Dust Test chamber for Environment Testing

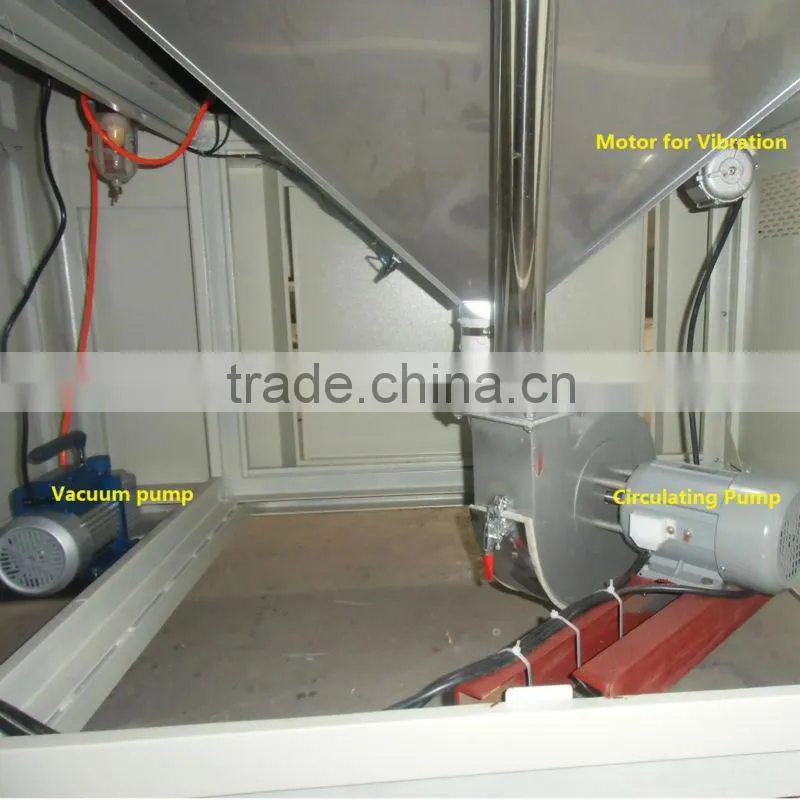

Dust circulation

During test, dust is blown in workroom by air, then fall in funnel through, and cycle blowing by circulating pump to achieve dust circulation blowing in test area.



Sand/Dust Test chamber for Environment Testing





Vacuum system

Some test specimens need to vacuumize.

Equipped with vacuum pump, a pressure gauge, air filter,

pressure regulating triple, connecting tube.



Sand/Dust Test chamber for Environment Testing





Sensors

Temperature sensor PT-100 A class

Temperature Resolution: ± 0.01 ℃;



Sand/Dust Test chamber for Environment Testing

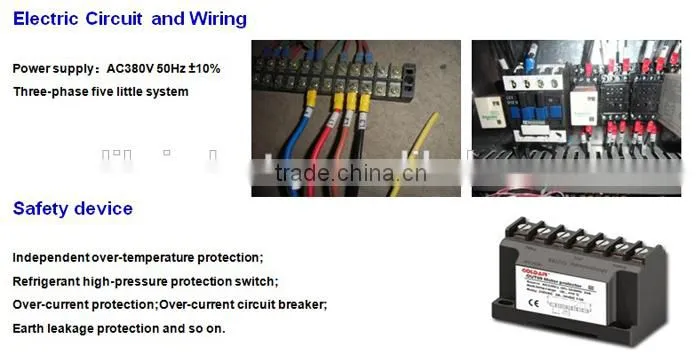

Safety protection

Independent over-temperature protection,

Over-current protection

Over-current circuit breaker

Earth leakage protection

Motor overheating







Power supply and Wiring

380V, 50 Hz 10% +/-

Three-phase five little system



Sand/Dust Test chamber for Environment Testing





Installation conditions

Ambient Temperature 5℃~+30 ℃   ≤85% RH

Test chamber should be away from wall over 80 cm to

adequately ventilate and heat dissipation

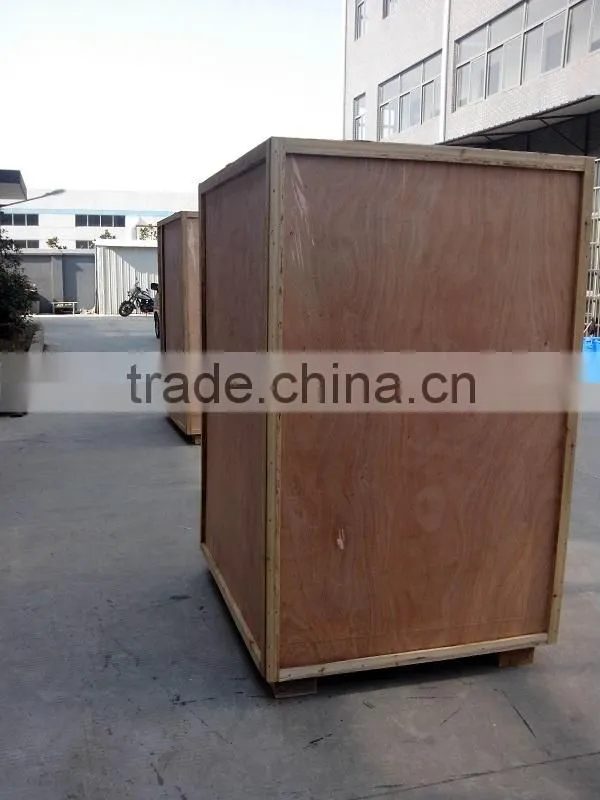

Export Standard Wooden Package

Packed in standard export packing material.

Can be used for Sea, Air,Railway, Truck transportation.





Model

Packing Dimension

Gross weight

Delivery Time

DI-800

1500*1800*2200 mm

530kg

20days

DI-1000

1700*1900*2200 mm

700kg

20days



 Sand/Dust Test chamber for Environment Testing









Packaging & Shipping

Sand/Dust Test chamber for Environment Testing

Our Services

  Three years Warranty ; Lifelong Service

Sand/Dust Test chamber for Environment Testing

Company Information



Sand/Dust Test chamber for Environment Testing

Sand/Dust Test chamber for Environment Testing

FAQ

Question: I need chambers very urgently, do you have stock ?

LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .





Question: How about your LIB payment terms?

LIB: Our payment is 50% with order, and 50% before delivery.





Question: Can LIB arrange delivery to our office (Lab)?

LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .





Question: Can we visit your plant before order?

LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.





Question: Have you sold chambers to our country?

LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .





Question: Can you arrange installations and commissioning in our lab?

LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .





Question: How about your warranty?

LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
