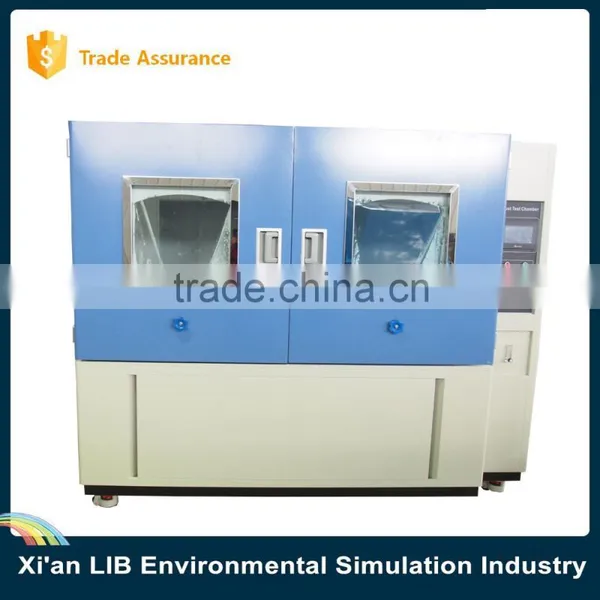

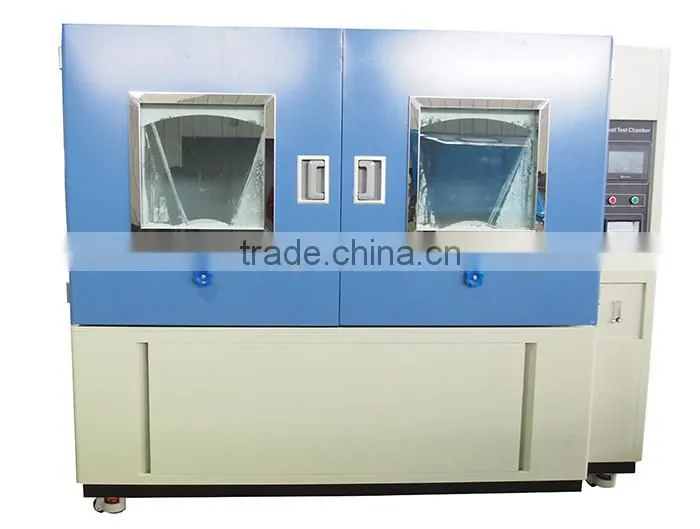

Dust Chambers Manufacturers
Dust Chambers Manufacturers
Specification
| Model | DI-500 | DI-800 | DI-1000 |
| Workroom dimension (cm) | 80*80*80 | 80*100*100 | 100*100*100 |
| External dimension (cm) | 105*120*128 | 105*142*182 | 125*142*182 |
| Performance index | |||
| Metal mesh diameter | 50um | ||
| Nominal spacing between lines | 75um | ||
| The Talcum powder amount | 2kg ~ 4kg/m3 | ||
| Fight time | 0 ~ 99H59M | ||
| Fan cycle time | 0 ~ 99H59M | ||
| Specimen power outlet | Dust-proof socket AC220V 16A | ||
| Control system | |||
| Controller | Imported microcomputer programmable integrated controller (MOELLER) | ||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulating triple, connecting tube ( Reprovision vacuum pump, which should be explained in detail when ordering) | ||
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | ||
| Dust heating system | Stainless steel mica sheet heating jacket | ||

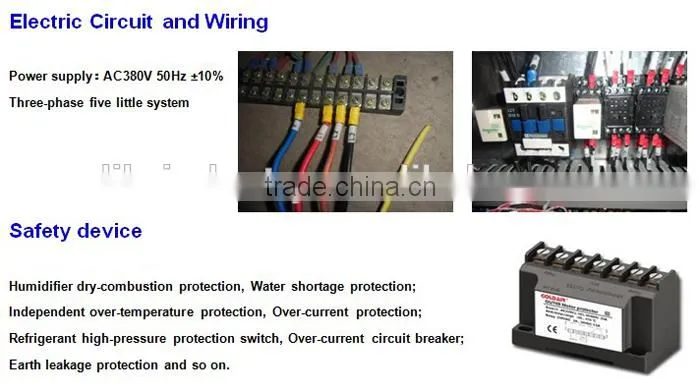

| Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | ||
| Note: The test chamber can meet the standards GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle. It can’t meet a sand and dust test with wind source according to GJB150. | |||
Features
1. IEC60529 Standard Dust Circulatory System;
2. 75um sieve;
3. IP5XIP6X Testing;
4. Programmable Controller;
5. Vacuum Pump.
6. Safty devices

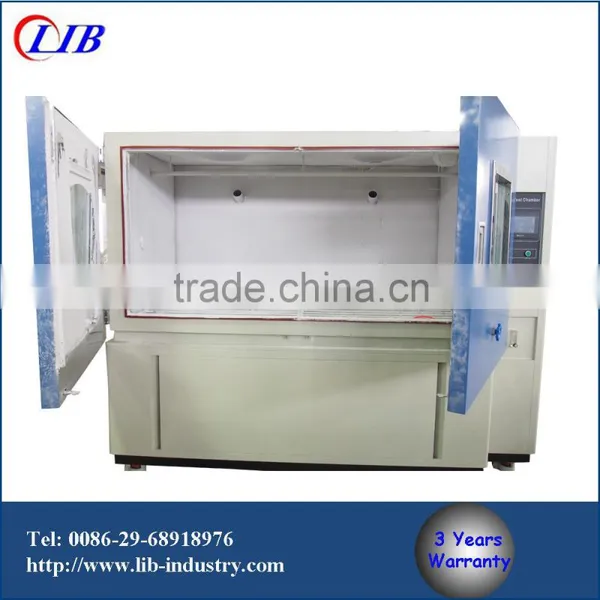

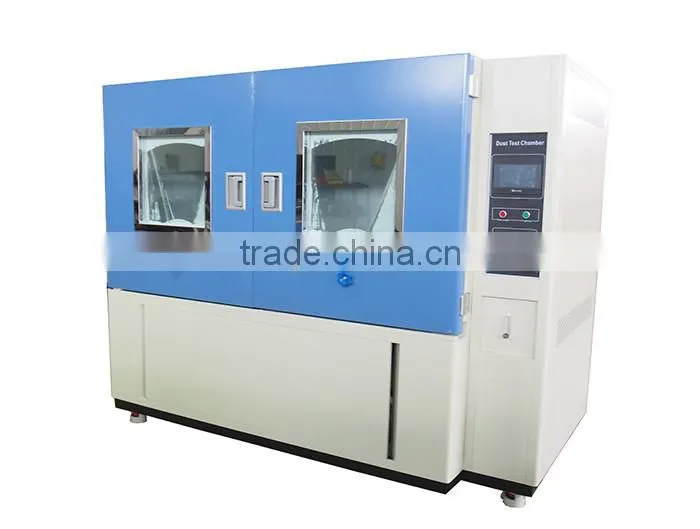

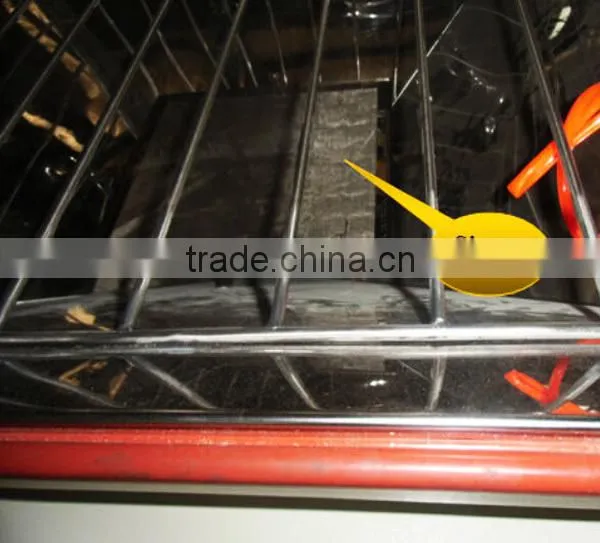

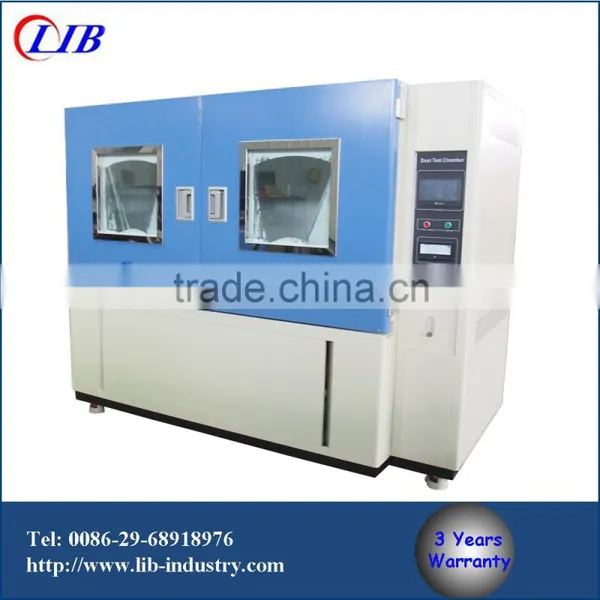

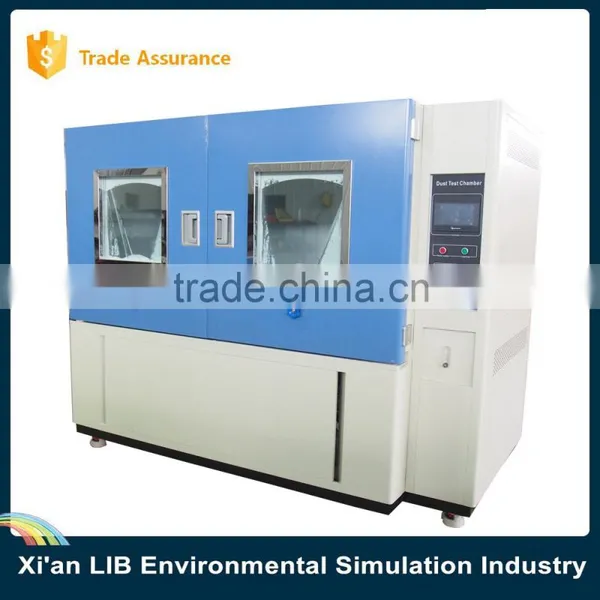

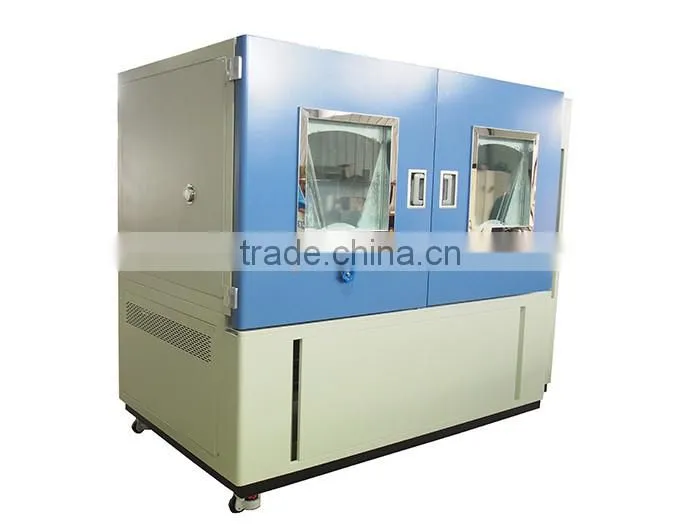

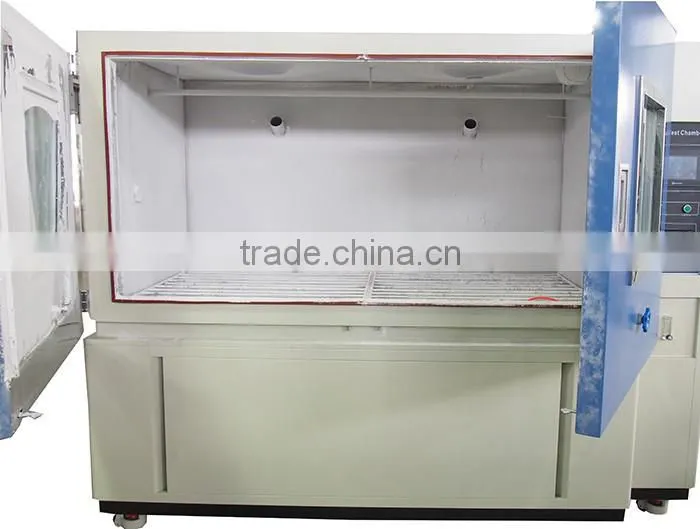

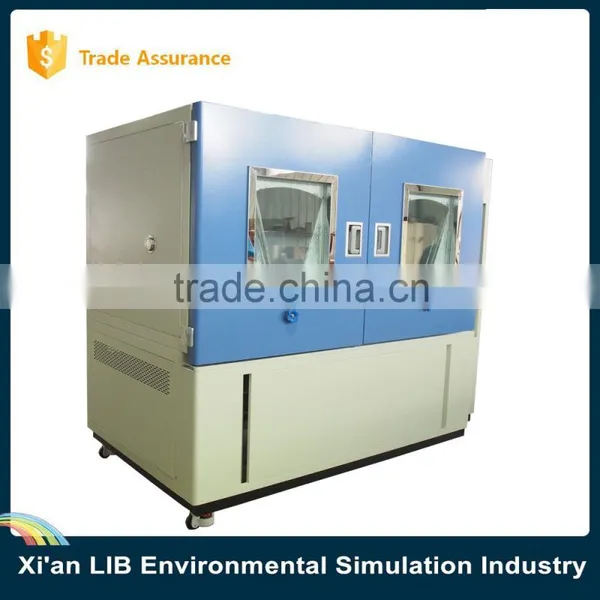

More pictures:
Lifelong Service
Warranty: 3 Years
Service:
Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products made by our company arise hardware problems caused by product itself rather than human error within three years warranty period since the date of delivery.
Firstly, we can provide the spare parts with you. And also provide the solution about the trouble of the products.
Secondly, Please send back the apparatus, which will be repaired by our company.
Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 20 days , if you need in urgent , we can speed up the production ,will short to 17 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
Xi'an LIB Enviroment Simulation Industry
Add: No.5 Zhangba First St, Xi'an High-Teach Area, Shaanxi Provinces P.R China 710065
Tel: +86(0)29 68918976
Fax: +86(0)29 68918977
Skype: lib_melody
Key words: Dust proof weathering chamber
