electric grain mill machine
- 20 Set / Sets per Month
- Shang hai Port
- T/T D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | dehui |
| Model Number: | SFSP | Type: | Mill Machine | Voltage: | 380V/400V/415V |
| Power(W): | 55kw | Dimension(L*W*H): | According to the model | Weight: | 4000 kg |
| Certification: | CE & ISO9001 & SGS | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
electric grain mill machine
We are manufacturing feed mill complete project,biomass processing complete project,Compound fertilizer processing. We can also provide Grinding and Pulverizing; Dosing and Mixing; Pelleting; Extruding and Expanding; Cooling, Pellet Crumbler and Sieving machine; Stabilizing machine, Dryer, Coating and Bagging machine; Compact feed mill; Cleaning, Magnets and Aspiration; Conveying and Other universal equipment.

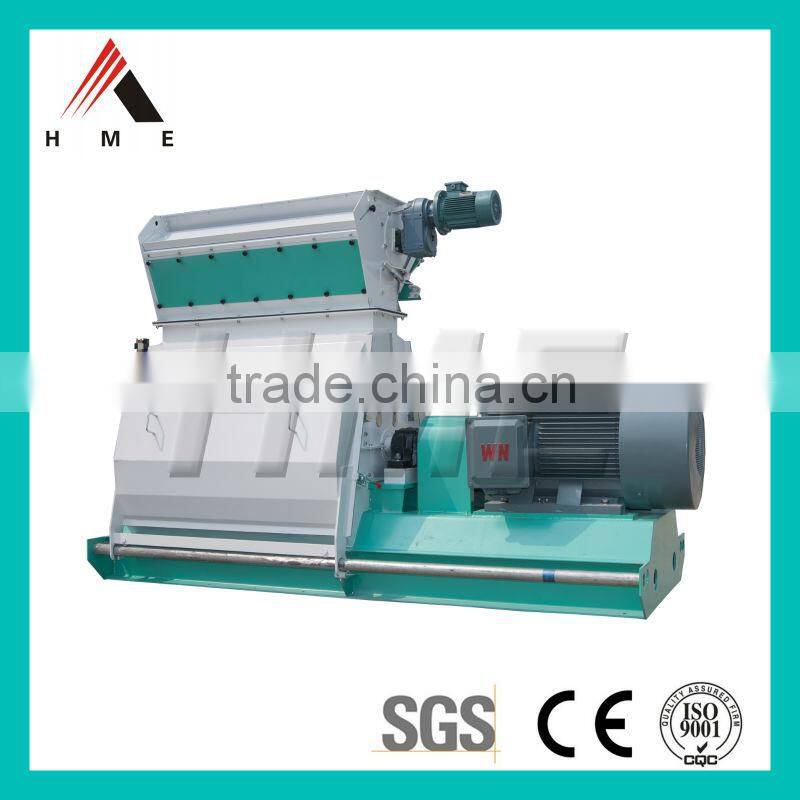

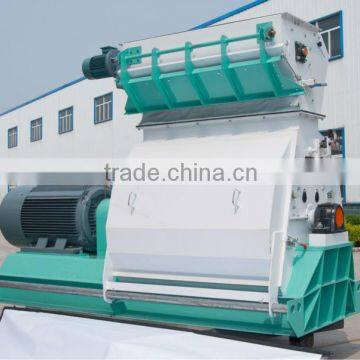

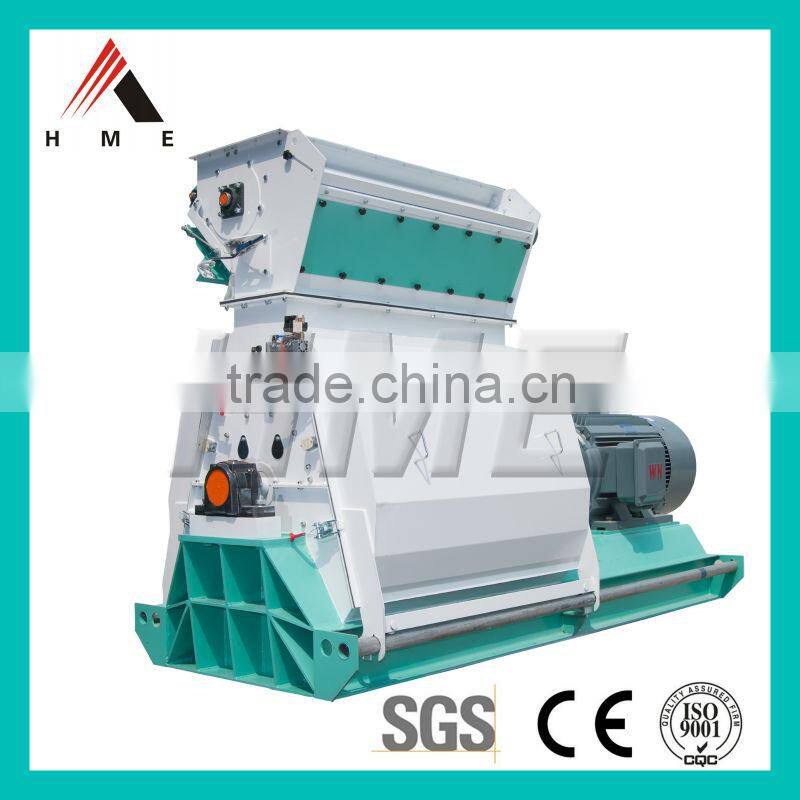

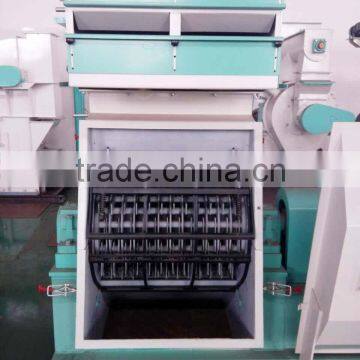

sfsp Feed hammer mill( Feed Grinder)
Feature
1. It is used for grinding raw materials of large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded;
2. It is derived from the tear circle type hammer mill and efficiency can be improved by 45%-90% compared to universal hammer mill;

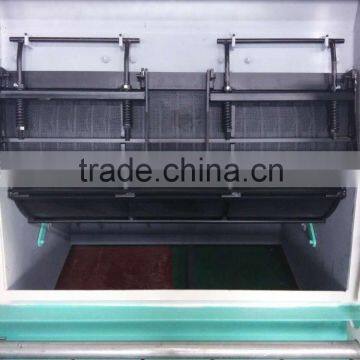

3. It can produce qualified aqua feed under full load with 0.8,1 screen and reduce jam significantly. Both coarse and fine grinding can be completed without changing screens;
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
Main Technical Parameters:
Parameters Model | Dia. Of Rotor (mm) | Width Of Grinding Chamber (mm) | Speed Of Rotor (r/min) | Speed Of Beater (m/s) | No. Of Beater (pc) | Power (kw) | Aspiration (m³/min) | Output(t/h) | |
Coarse | Fine | ||||||||
SFSP668-1 | 660 | 380 | 2970 | 94 | 56 | 22/30 | 30 | 34 | 5-6 |
SFSP668-2 | 660 | 450 | 2970 | 94 | 64 | 45/55 | 40 | 45 | 7-12 |
SFSP668-3 | 660 | 600 | 2970 | 94 | 88 | 55/75 | 48 | 53 | 10-15 |
SFSP668-4 | 660 | 750 | 2970 | 94 | 112 | 90/110 | 60 | 66 | 15-20 |
Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter 3mm, hole-opening rate not less than 33%.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 15 years of experience specializing in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.
3. Q: How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
We attended the Agrena Fair in Egypt, A lot of Africa and Middle east customers interested our products and come to our booth to discuss their case.

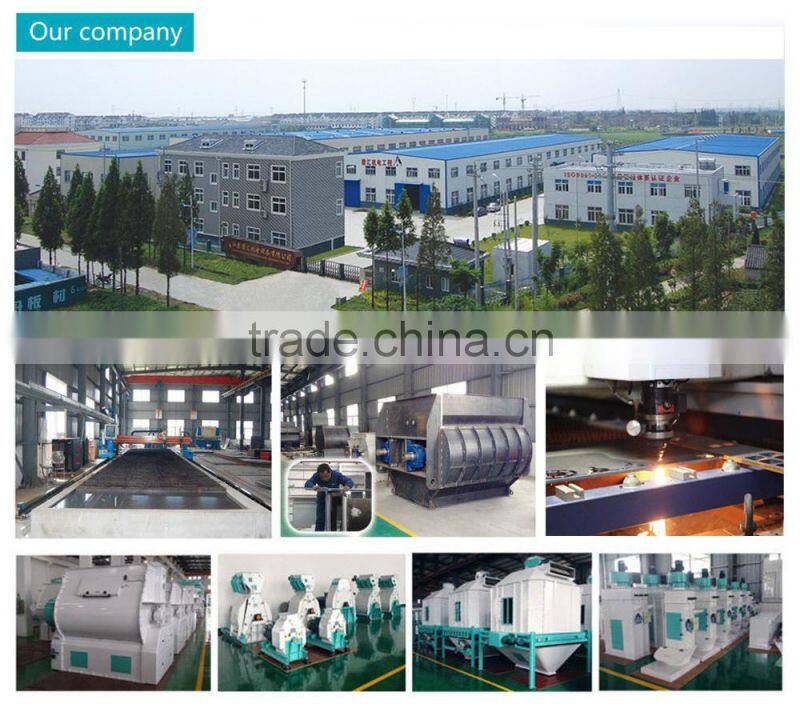

JIANGSU DEHUI MACHANICAL AND ELECTRICAL CO.,LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. HME has worked in this field for almost 15 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to HME products.
HME products have been exported to South Korea, Irag, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is making your business to the top level.
1.The quality assurance system of HME Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.
2.The products of HME are issued CE certification by European Union.
If you are interested in our products, please click "send" now! Pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
Contact Us
- Jiangsu Dehui Mechanical & Electrical Equipment Co., Ltd.
- Contact nameLowry Luo
- Phone86-0519-87366222
- Addresschangzhou liyang Changzhou,Jiangsu
-
