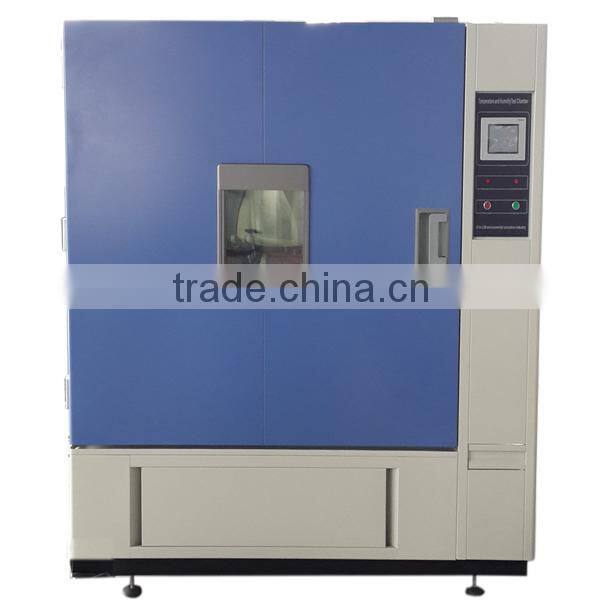

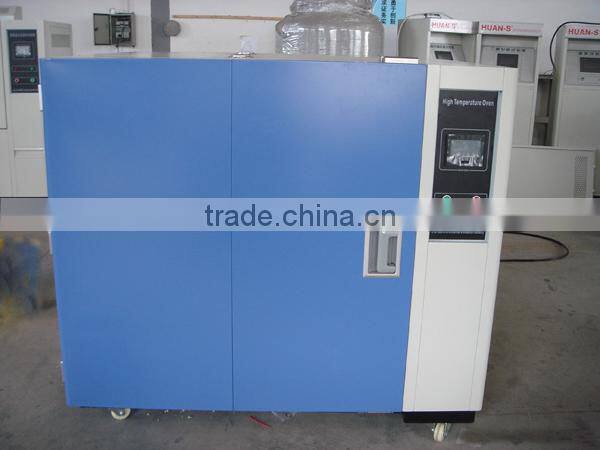

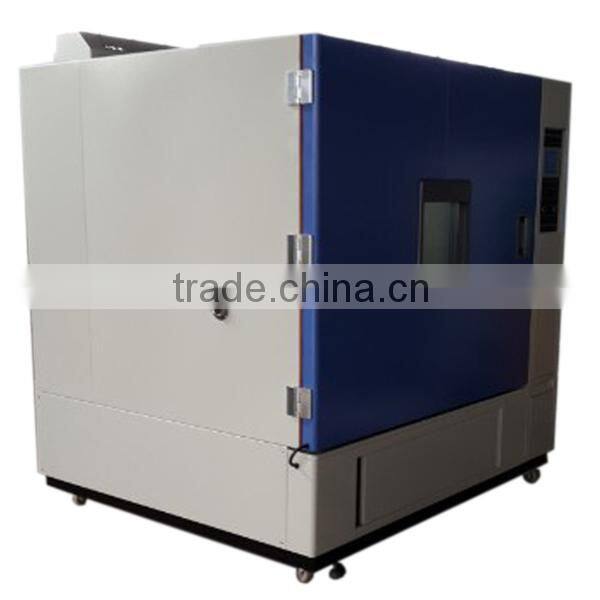

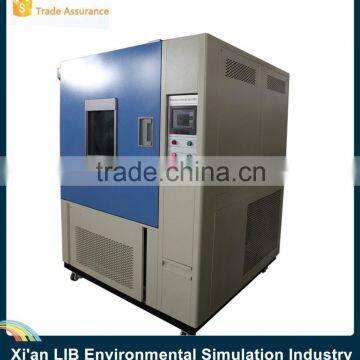

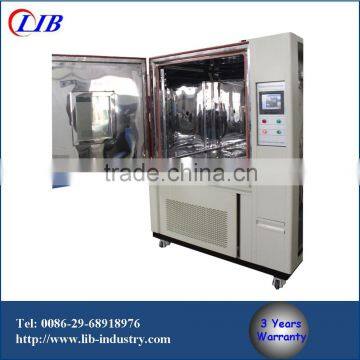

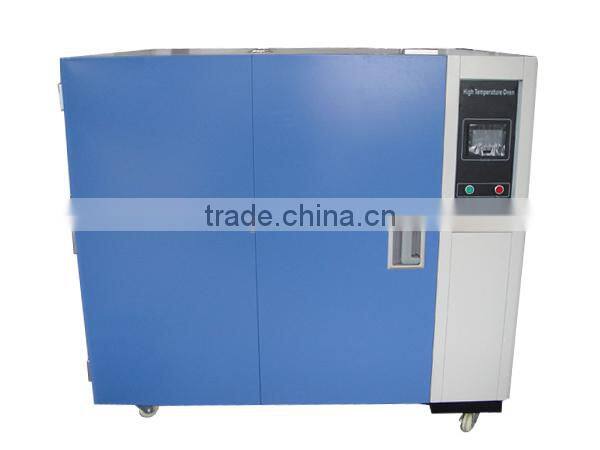

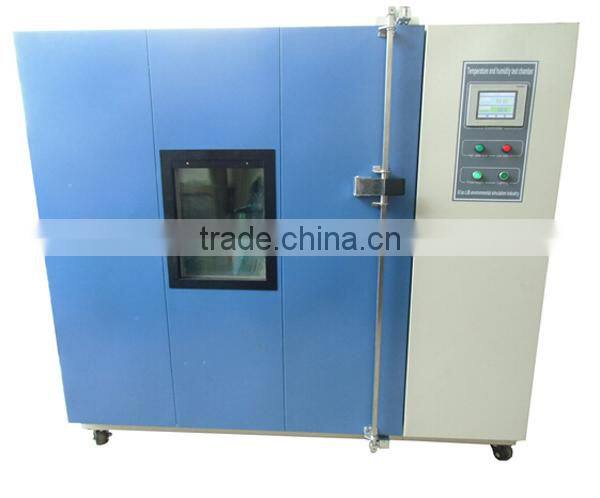

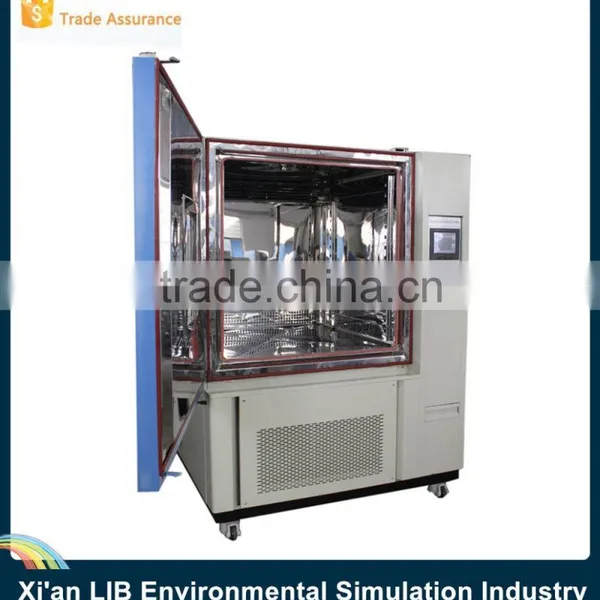

Industrial Drying Cabinet
Industrial Drying Cabinet
Technical Parameters
Model |
0-100 |
0-225 |
0-500 |
0-800 |
0-1000 |
|||||
Internal dimensions (mm) |
450*450*500 |
500*600*750 |
800*700*900 |
800*1000*1000 |
1000*1000*1000 |
|||||
Overall dimensions (mm) |
750*880*850 |
800*950*1000 |
1100*1100*1300 |
1100*1450*1400 |
1300*1400*1400 |
|||||
Technical structure | ||||||||||
Temperature range |
Ambient~+450 ℃ (Max to 500℃) |
|||||||||
Temperature fluctuations |
± 0.5 ℃ |
|||||||||
Temperature deviation |
± 2.0 ℃ |
|||||||||
Heating rate |
about 6 ℃ / min |
|||||||||
Control system | ||||||||||
Controller |
Digital PID Temperature Controller |
|||||||||
programmable color display touch screen, PC Link with software, R-232 interface (Optional) | ||||||||||
Temperature Sensor |
PT100 A-class |
|||||||||
Temperature Resolution |
± 0.1 ℃ |
|||||||||
Heating system |
Independent Nichrome electronic heating system |
|||||||||
Circulatory system |
Cold resistance and low noise centrifugal wind wheel |
|||||||||
Material | ||||||||||
Exterior material |
Steel Plate with Protective coating |
|||||||||
Interior material |
SUS304 stainlesssteel |
|||||||||
Insulation window |
Double thermostability silicone rubber sealing |
|||||||||
Standardconfiguration |
2 sets of shelf , 1 copy of operating specification |
|||||||||
Timing Function |
0.1~999.9 (S,M,H) settable |
|||||||||
Environmental conditional |
5℃~+30 ℃ ≤85% RH |
|||||||||
Nominal power |
2500W |
3000W |
3500W |
4500W |
6500W |
|||||
Power Supply |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC380V 50HZ |
|||||

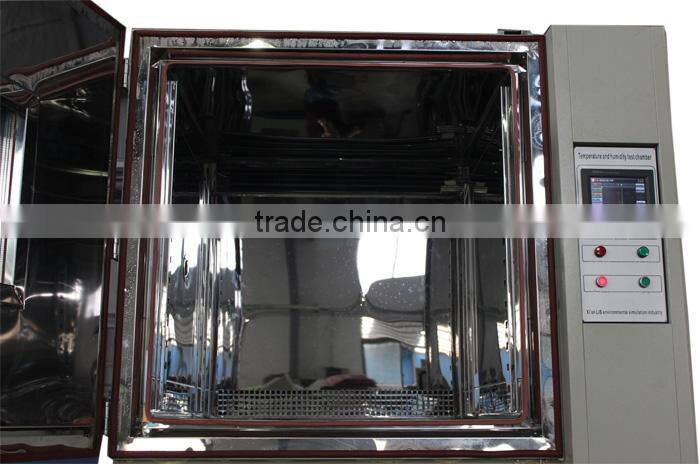

Air flow
The real wall of test area with chip-type wind board and return air inlet to achieve air flow.
Air flowing out from top of wind board which control air direction, and return into air let to achieve air flow .
Controller
Digital PID Controller

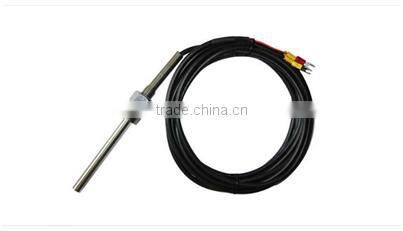

Sensors
Temperature sensor PT-100 A class
Resolution: temperature: ± 0.01 ℃
Safety protection
Independent over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Over-current circuit breaker
Earth leakage protection and so on
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
