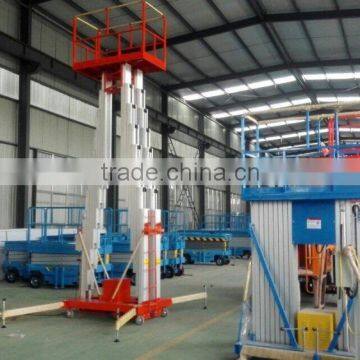

hydraulic telescopic ladder/man lift/electric lift ladder
one man lift introduction
Aluminum lift tableit is a new-are product through brand-new design, adopts new aluminum molding material.
The lift table has tiny deflexion and sawing ,because of high-strength molding material .
Handy and light appearance makes it freely exert maximum lifting ability in limited room.
As a result, this product makes it easy to carry out high-altitude working by one person.
one man lift introduction usage
1. Considering security problem, the platform generally is equipped with anti skid insulated
plastic water groove boards, easy to change.
2. Mobile hydraulic lift with artificial mobile hydraulic lift, electric portable hydraulic lift,
the other with a hand pump, used for power failure.
3. Mobile and flexible, smooth lifting, easy operation, large capacity
4. The series mobile hydraulic aluminum lift platform with a multi purpose, indoor and outdoor use
can be widely used in railway stations,airports, bridges, inquiries, internal and external mechanical plant installation,
equipment maintenance, construction and maintenance and so on.
one man lift introduction: features
You can control the lift both on the platform and ground, just need press
stop button, it can stop at any point if you need.
Personnel Lifts are available in various AC and DC powered models.
one man lift introduction :advantages
AC Powered Models (220v)
- Powered by a plugged power point
- No noise and air pollution
- Indoor Usage
- Longer usage time
DC Powered Models
- Battery operated, can be use outdoor
- Use for workspace constraints
1)Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.
2)Equipped with overload safety protection device
3) Equipped with safeguard valve to avoid hydraulic pipe rupture
4)It installs the emergency manual hydraulic valve to cope with power cut.
5)It also can add stretch platform to extend to the desired place when the platform length isn’t enough.
6)Double chains greatly improve the safety factor.
7)Adopt emergency stop button multiple safety protection measures.
8)The translatable supporting legs can ensure working dead zone minimization .
9)Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.
aluminum alloy aerial lift : type
Model |
Lifting height |
Working height |
Loading Capacity |
Table Size |
Overall Dimensions |
Weight |
Power |
|
(m) |
(m) |
(kg) |
(mm) |
(mm) |
(kg) |
(kw) |
||
Single mast |
||||||||
HTLH4-125-1 |
4 |
5.7 |
125 |
600*550
|
1300*800*1620 |
220 |
0.75 |
|
HTLH5-125-1 |
5 |
6.7 |
1300*800*1620 |
260 |
||||
HTLH6-125-1 |
6 |
7.7 |
1300*800*1620 |
270 |
||||
HTLH8-125-1 |
8 |
9.7 |
1375*830*1980 |
320 |
||||
HTLH10-125-1 |
10 |
11.7 |
100 |
1400*900*1980 |
350 |
|||

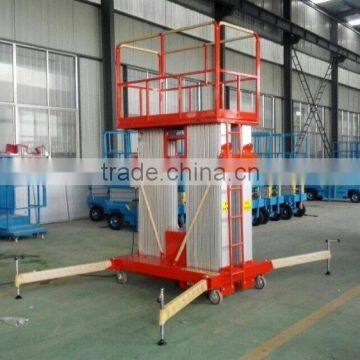

Double masts | ||||||||
HTLH6-200-2 |
6 |
7.7 |
200 |
1190*540 |
1450*890*1980 |
420 |
1.5 |
|
HTLH7-200-2 |
7 |
8.7 |
1190*540 |
1450*890*1980 |
480 |
|||
HTLH8-200-2 |
8 |
9.7 |
1200*600 |
1450*890*1980 |
520 |
|||
HTLH10-200-2 |
10 |
11.7 |
1400*600 |
1550*890*1980 |
550 |
|||
HTLH12-200-2 |
12 |
13.7 |
1500*600 |
1700*920*1980 |
640 |
|||
HTLH14-200-2 |
14 |
15.7 |
1550*600 |
1750*950*2300 |
720 |
|||

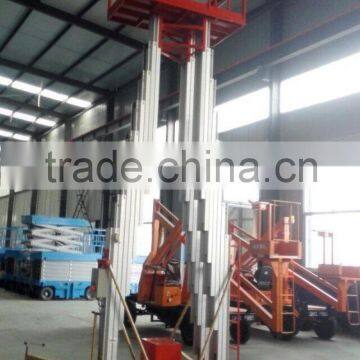

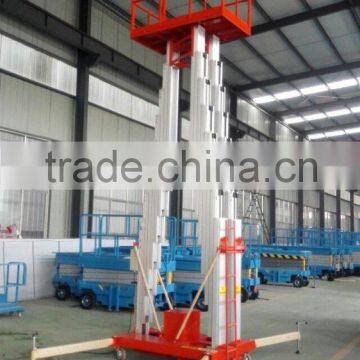

Triple masts | ||||||||
HTLH10-200-3 |
10 |
11.7 |
200 |
1300*540 |
1550*900*1980 |
720 |
1.5 |
|
HTLH12-200-3 |
12 |
13.7 |
1450*540 |
1700*890*1980 |
780 |
|||
HTLH14-200-3 |
14 |
15.7 |
1600*880 |
1800*1200*2480 |
980 |
2.2 |
||
HTLH16-200-3 |
16 |
17.7 |
1780*800 |
1800*1200*2580 |
1180 |
|||
Tiltable triple masts |
16( M )3100*1200*2000(put down) 18( M )3200*1200*2200(put down) |
|||||||
Four masts | ||||||||
HTLH14-200-4 |
14 |
15.7 |
200 |
1600*800 |
1800*1000*2420 |
1000 |
2.2 |
|
HTLH15-200-4 |
15 |
16.7 |
1700*800 |
2000*1000*2630 |
1200 |
|||
HTLH16-200-4 |
16 |
17.7 |
1700*800 |
2000*1000*2650 |
1300 |
|||
HTLH18-200-4 |
18 |
19.7 |
1700*500 |
2100*1000*2800 |
1400 |
|||
Tiltable four masts |
16( M )3300*1200*2000(put down) 18( M )3200*1200*2200(put down) 20( M )3650*1200*2200(put down) |
|||||||
packaging: standard international packaging . The wooden case can be customized as the machine size. Water-proof.
shipping: The loading port is Qingdao,China. We will delivery your machine once your order done within 15 days.
Name:Tiny
Skype : tiny-sale
whatsapp : 86+18763961675
Wechat : Tiny19931205
Please feel free to contact if you have any question ,
I will reply within 6 hours.
