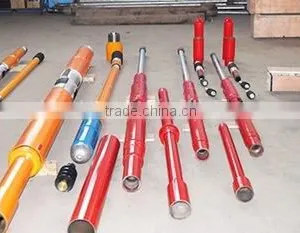

Help CenterAPI Liner Hanger for Cementing Tools Oilfield
Related Products
-
Oil Well Drill Pipe 2 3/8-5 1/2 API StandardNegotiableMOQ: 20 Metric Tons -
Stainless Pipe Fittings Casing and Tubing CouplingUS$ 0.01 - 200MOQ: 300 Pieces
-
API 5CT 5B Nipple JointNegotiableMOQ: 100 Metric Tons
-
API Swivel for Drilling RigNegotiableMOQ: 5 Pieces
-
API 5CT L80 Tubing CouplingUS$ 0.01 - 200MOQ: 500 Pieces
Specification:
The Mechanical Liner Hanger, with double cones, double-row slips and double cylinders, is set hydraulically by applying pressure through the run-in string. A setting ball is circulated or dropped to the ball seat built into the landing collar. Applied pressure pushes slips up the cone to the set position.
Features:
1. Applicable to different wells, especially to deep wells.
2. With two different setting mechanisms, the SSX-A can set easily.
3. Working with SQ setting-ball carrier, the DYX-C is suitable for applications in horizontal or highly-deviated wells.
4. The piston sealing element is made of nitrile/fluorine rubber for higher pressure and temperature ratings.
5. Main parts are fabricated with high-strength alloy steel providing high burst/collapse resistance.
Property Parameters
Specification, mm |
Φ244.5 X Φ177.8mm/139.7mm |
Φ339.7mm X Φ244.5mm |
Rated Load, t |
160 |
240 |
Sealing Capacity, MPa |
25 |
25 |
Shearing Pressure of Pins in Cylinder, MPa |
7~8 |
7~8 |
Casing Wall Thickness, mm |
10.03 |
9.65 |
11.05 |
10.92 |
|
11.99 |
12.19 |
|
Casing Weight, Kg/m |
59.52 |
54.5 |
64.73 |
68 |
|
69.94 |
85 |
|
Body Max O.D., mm |
215 |
308 |
Body Min I.D., mm |
155 |
220.5 |
