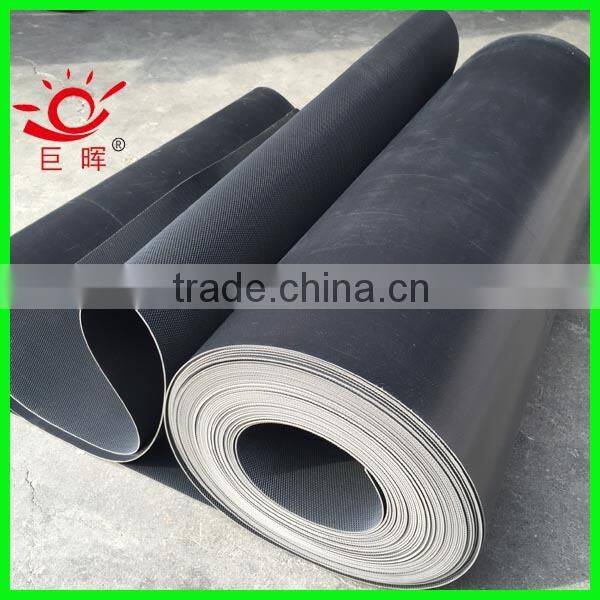

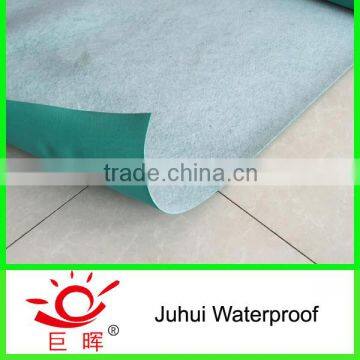

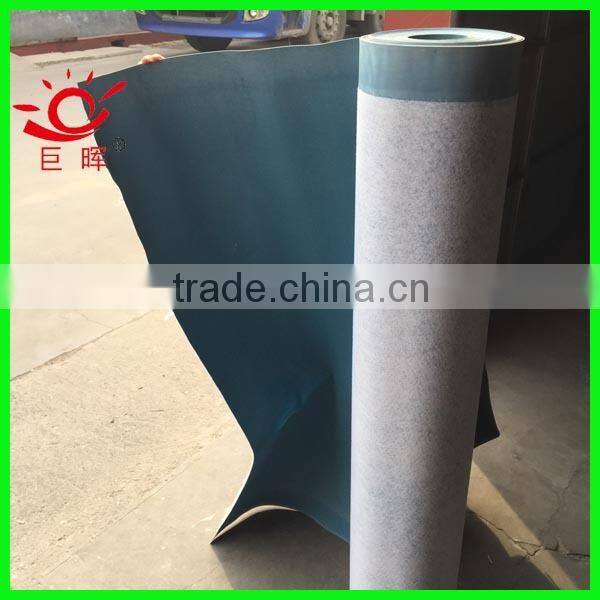

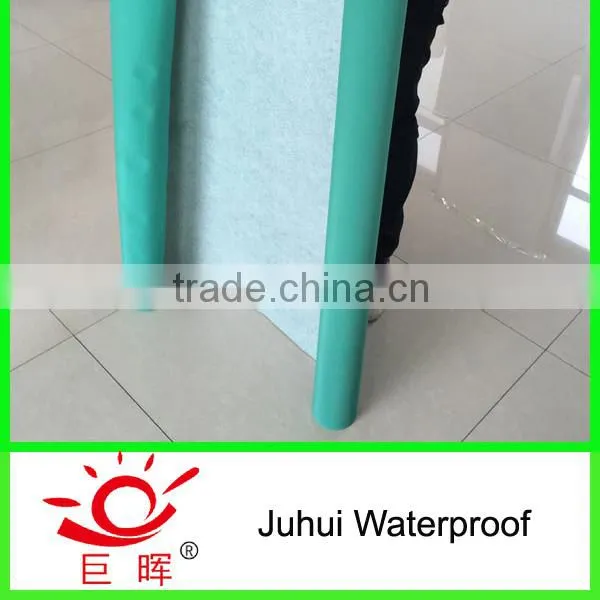

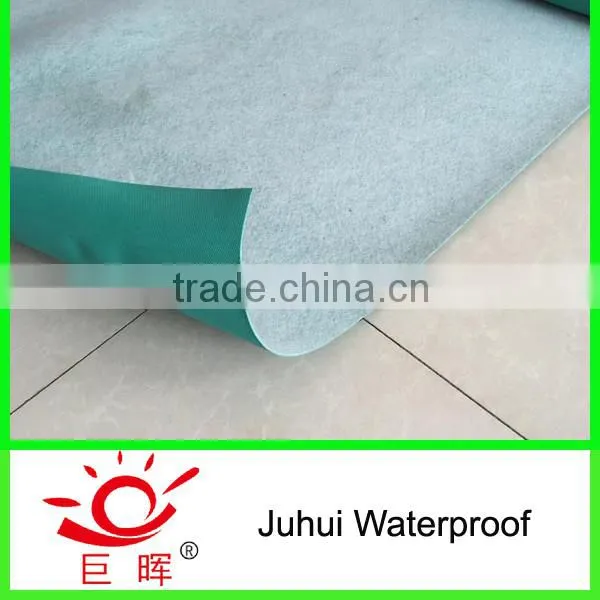

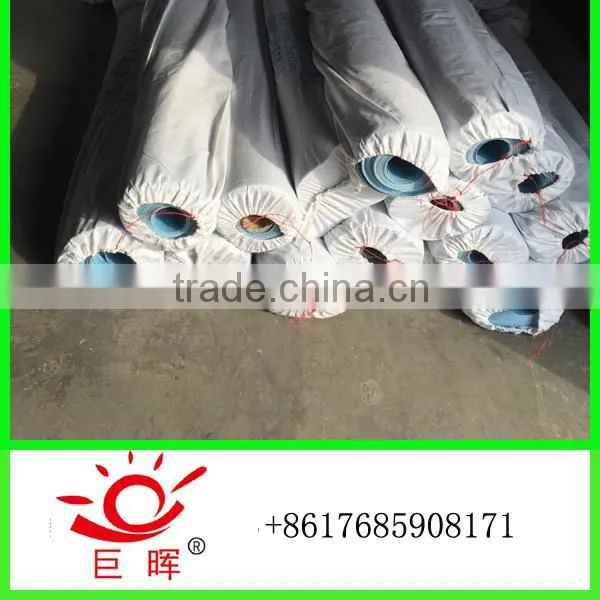

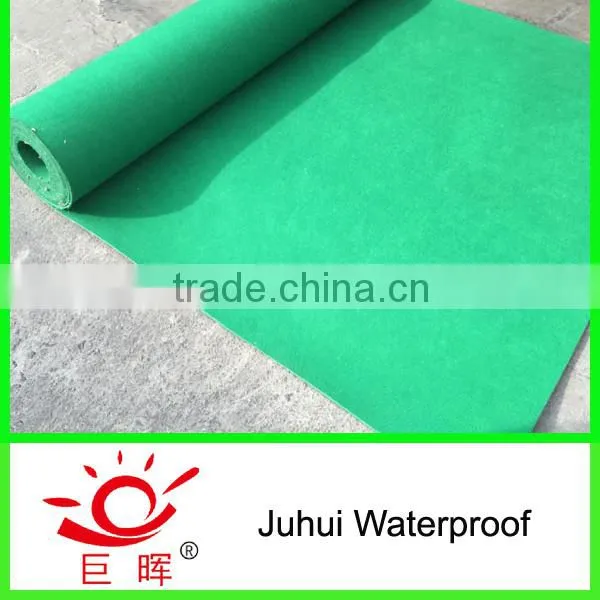

polyvinyl chloride PVC waterproof membrane/transparent pvc waterproof membrane
1.Specification:
Item |
PVC waterproof membrane |
Thickness |
1.0-2.0mm |
Width |
1-2m |
Length |
as customer’s request |

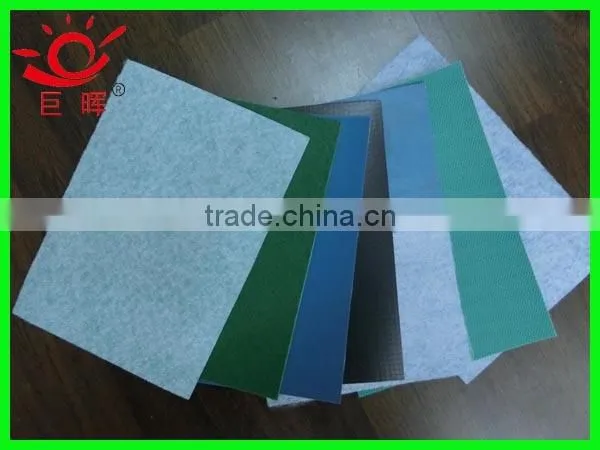

Color |
White, Green, Black, Grey,other |
Material |
PVC |
Surface |
smooth/textured surface/PET nonwoven fabric |
2.Technical data:
Item |
Index |
|||||||
H |
L |
P |
G |
GL |
||||
1 |
resin thickness over the fabric mm,≥ |
— |
0.4 |
|||||
2 |
tensile strength |
max tension (N/CM),≥ |
— |
120 |
250 |
|
120 |
|
tensile strength/Mpa,≥ |
10 |
— |
— |
10 |
— |
|||
elongation at max tension/%,≥ |
— |
— |
15 |
— |
— |
|||
break elongation/%,≥ |
200 |
150 |
— |
200 |
100 |
|||
3 |
thermal size change/%,≤ |
2 |
1 |
0.5 |
0.1 |
0.1 |
||
4 |
low temperature flexibility/℃ |
—25 no crack |
||||||
5 |
impermeability |
0.3MPa,2h impermeable |
||||||
6 |
anti-impact |
0.5kg.impermeable |
||||||
7 |
static load |
|
|
20kg impermeable |
||||
8 |
cut strength/(N/mm),≥ |
|
||||||
joint peeling strength/(N/mm),≥ |
4 |
3 |
||||||
9 |
vertical tearing strength/(N/mm),≥ |
50 |
— |
— |
50 |
— |
||
10 |
trapezoid tearing strength/(N/mm),≥ |
|
150 |
250 |
|
220 |
||
11 |
water absorption(70℃,160h)% |
after saturation≤ |
4 |
|||||
after dry≤ |
—0.4 |
|||||||
12 |
heating aging |
hour/h |
672 |
|||||
appearance |
no bubble,crack,seperation |
|||||||
tensile strength retention/% |
≥85 |
|||||||
elongation retention/% |
≥80 |
|||||||
low temperature flexibility retention/℃ |
—20 no crack |
|||||||
13 |
anti chemical property |
appearance |
no bubble,crack,seperation |
|||||
tensile strength retention/% |
≥85 |
|||||||
elongation retention/% |
≥80 |
|||||||
low temperature flexibility retention/℃ |
—20 no crack |
|||||||
14 |
artificial |
hour/h |
1500 |
|||||
appearance |
no bubble,crack,seperation |
|||||||
tensile strength retention/% |
≥85 |
|||||||
elongation retention/% |
≥80 |
|||||||
low temperature flexibility retention/℃ |
—20 no crack |
|||||||
3.Characteristic:
1.Strong tensile strength, high elongation, can fit big deformation of substrates.
2.Excellent anti-extreme weather property, can adapt to various environment temperature difference.
3.Suitable for exposed projects with long lifetime and good anti-aging property.
4.Can be welded firmly and reliably.
5.Outstanding root penetration resistance, best choice for planted roofs.
6.Simple and fast construction without pollution.
7.Great plasticity and fast treatment with corners and details.
4.Applicable scope:
polyvinyl chloride PVC waterproof membrane/transparent pvc waterproof membrane forms an effective barrier to liquid water or water vapor in the roof construction for industrial and civil engineering, underground engineering such as subway& tunnel, water conservancy such as water pools & ditch, shelter, grain depot, land filling, dyke, sewage treatment and basement.
5.Cautions:
1. Do not put the membrane on a pollution, water and ice ground.
2. Construcion of waterproof layer operations can't be crossed, device shall be installed on the waterproof layer, parts should be done to strengthen the basis of device and to take protective measures.
3. Do not touch the waterproof layer with thorn sharp objects after it's has been completed, don't put sundries or any additional buildings above the waterproof layer to avoid damaging it.
1.If you need some advises for the waterproof construction, we have the best engineer to serve you.
2.We send the free samples to you by freight collect.
3.We will guarantee the quality and the competitive price.

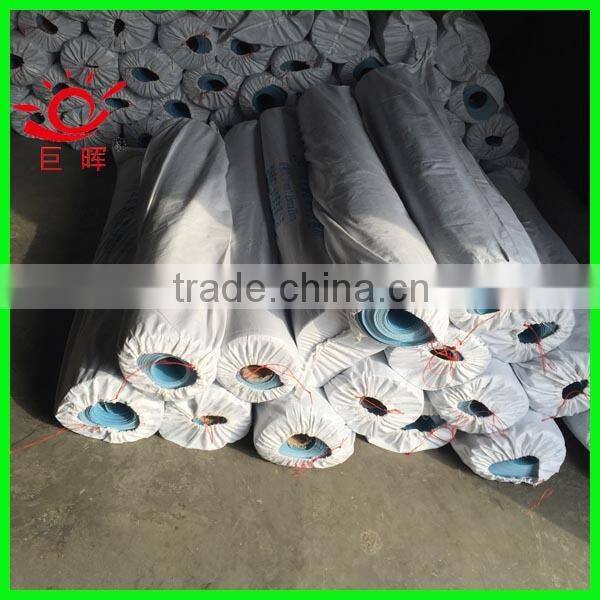

4.We will give you the best packaging and safe shipping.
5.If any problem, we will always be right here waiting for you.
Our company is specialized in the scientific research, development, production, sales, design and construction of waterproof materials,includingSBS/APP bitumen waterproof membrane,EPDM waterproof membrane,TPO waterproof membrane,Polyethylene polymer waterproof material,PVC waterproof membrane,self-adhesive bitumen membrane,drain board and so on.
Our goal is to meet the demands of all kinds of customers from all over the world.
