Specifications
Diverter(1)API Spec 16A
(2)API Q1&ISO/TS29001
(3)ISO9001:2000

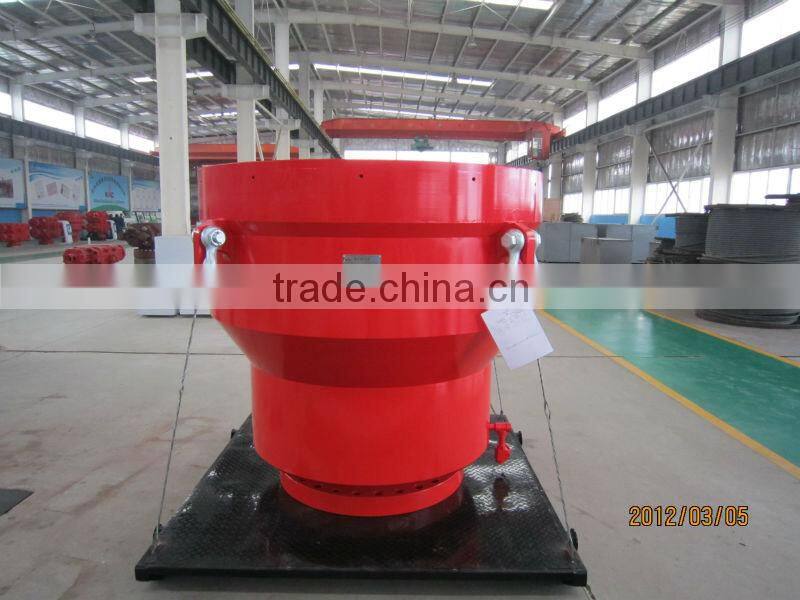

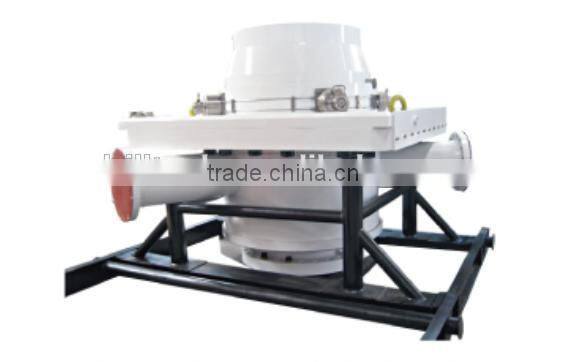

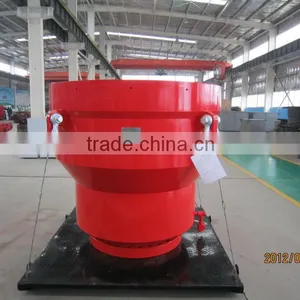

THE Diverter
The main functions of the Diverter

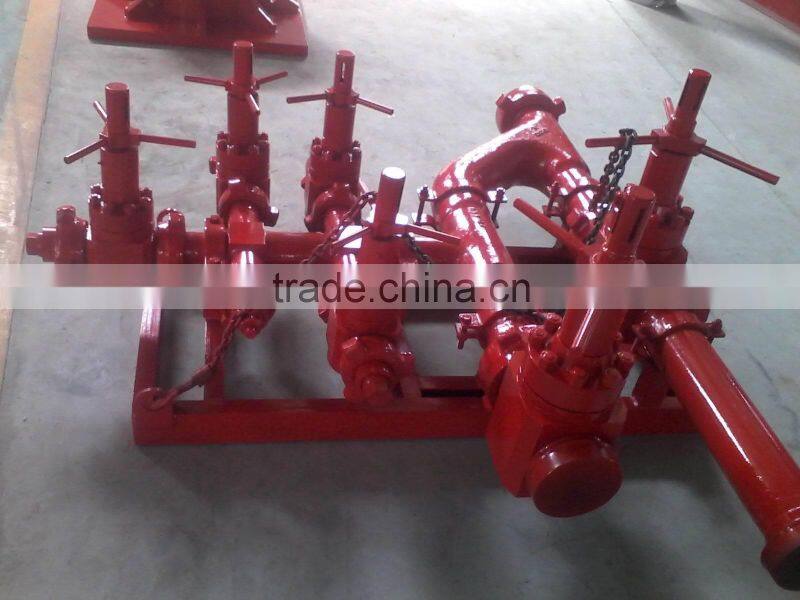

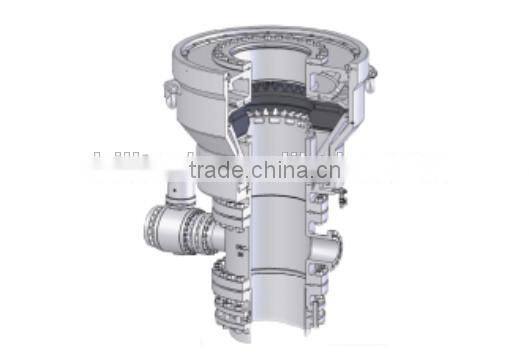

Diverter system iss a key component of offshore drilling mostly, and it always services the surface layer driling before BOP. The diverter assembly is the uppermost component of the riser system.It is not used to shut or seal the well completely, but to either direct the returning drill fluid or control the blowout and surface laye gas.When encountering the gas, the diverter can close off around drillepipe or casing, and open the special diection vent line on board at the same time.With the platform manifold, the gas will be guided and choked at special point.
Diverter system must be equipped with hydraylic control system to use. With the different size of packers, it is able to seal various shapes and sizes of driling tools including kelly, drill pipes, tool joints, drill collar,etc.
Technical Parameter
Bore 30"
Working pressure 500psi
Volume for Closing 245L
Volume for Opening ----------
control pressure 1200-1500psi
Manufacture specification API SPEC 16A
Dimenison 2070x2070x1749
Weight 10978kg
Top connection MSS 30"class300 R95 CRA Studded
Bottom connection MSS 30" class300 R95 CRA Flanged
