Double Mast Aluminum Lift,hydraulic Lift Elevator Sale

FOB Price

US$ 2,000 - 6,020 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	HONTY
Model Number	SJL0.2-8A	Lift Mechanism	Telescoping Lift
Lift Drive / Actuation	Hydraulic	Power	0.75kw
Rated Loading Capacity	200kg	Min. Lifting Height	1.98m
Max. Lifting Height	7.7m	Table Size	600mm
Overall Dimensions	12008501980mm	Weight	380kg
Certification	ce	Warranty	12 months apart from man made faults
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

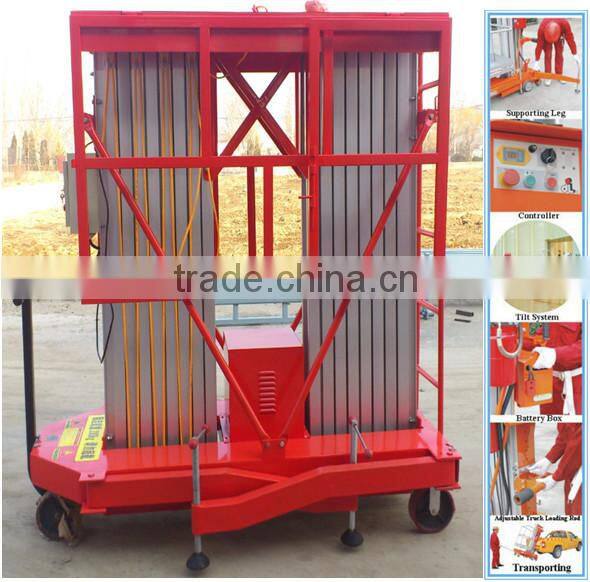

double mast aluminum lift,hydraulic lift elevator sale

Trailing aluminum lift

Trailing Aluminum Alloy Lift/sky lift

Specifications

1.Lifting height:6-8m

2.Load capacity:120kg

3.Lift motor power

4.1 year warranty

characteristics :

The series of products use high-strength aluminum alloy materials,and power source can choose electric, manual battery or diesel control device can be installed according to can according to the users' needs,which has advantages including small occupied space.

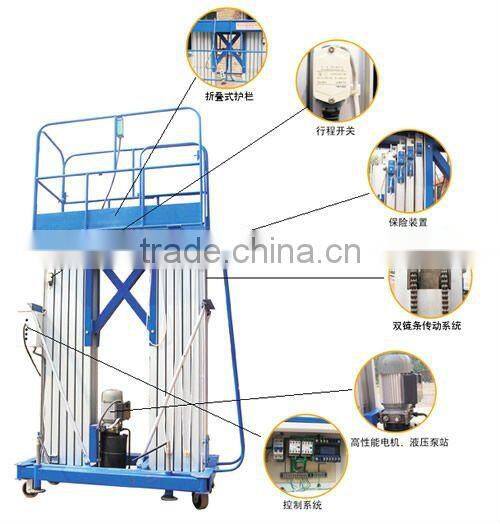

Features:

1)Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.

2)Equipped with overload safety protection device

3) Equipped with safeguard valve to avoid hydraulic pipe rupture

4)4)It installs the emergency manual hydraulic valve to cope with power cut.

5)It can add stretch platform to extend to the desired place when the platform length isn’t enough.

6)Double chains greatly improve the safety factor.

type	lifting heightm	loadkg	sizemm	power	weightkg
SJL0.1-4A	4	100	11007001980	220v/1.1kw	210
SJL0.1-6A	6	100	12007001980	220v/1.1kw	240
SJL0.1-6B	6	200	15008002100	220v/1.5kw	360
SJL0.1-8A	8	100	13008001980	220v/1.1kw	260
SJL0.1-8B	8	200	16008001980	220v/1.5kw	340
SJL0.2-10B	10	200	16009001980	220v/1.5kw	360
SJL0.2-12B	12	200	172010001980	220v/1.5kw	600
SJL0.3-12D	12	300	252012001980	220v/1.5kw	850
SJL0.2-14B	14	200	200010002650	220v/1.5kw	510
SJL0.2-14(D)	14	300	280012002000	2.2KW	900
SJL0.2-16B	16	200	170010003300	2.2KW	980
SJL0.3-16(D)	16	300	280012003200	2.2KW	1500
SJL0.3-18(D)	18	300	280012003200	2.2kw	2200
SJL0.2-20(E)	20	200	312013902650	2.2KW	2500
SJL0.2-22(E)	22	200	312016602850	2.2KW	2700
