grain processing machinery

Specifications

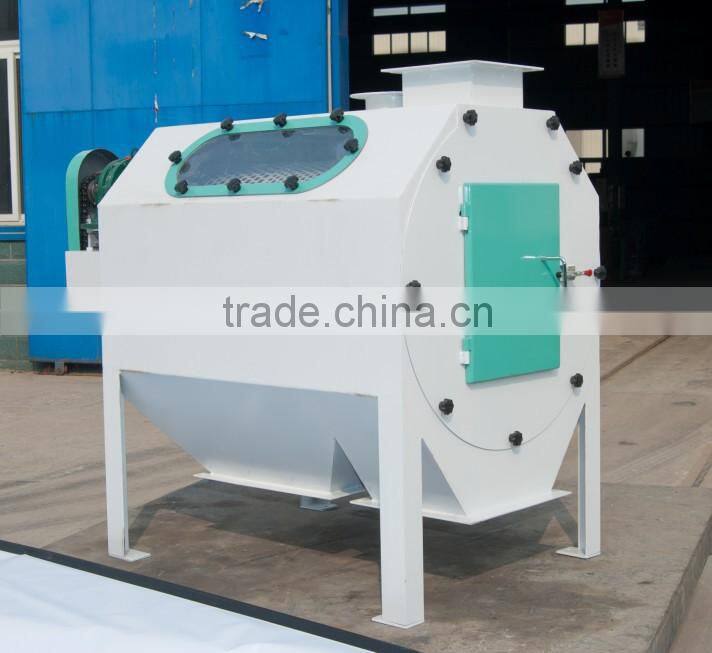

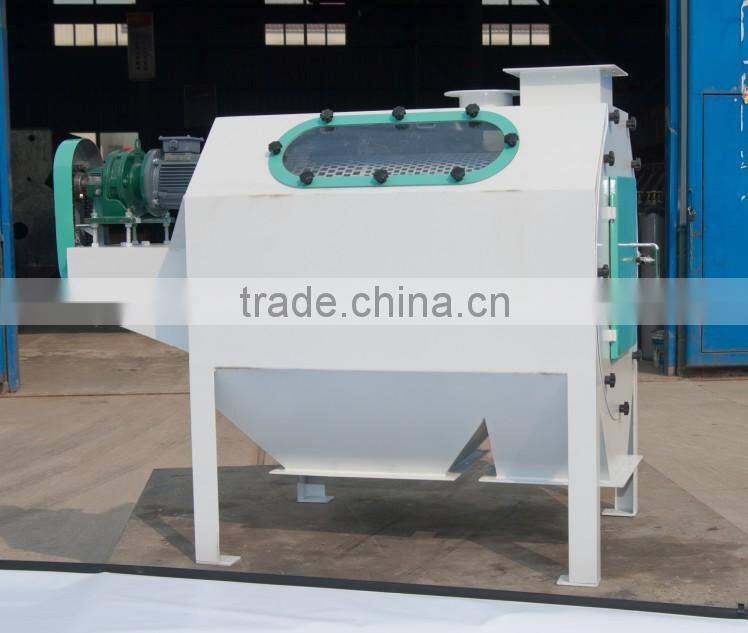

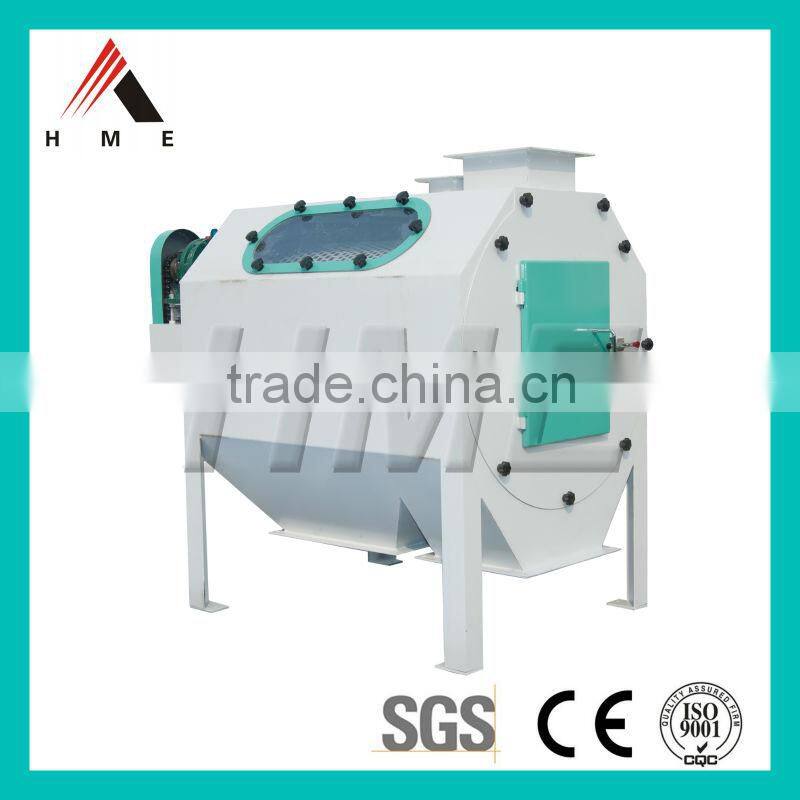

Drum Cleaner Is Used For Precleaning Of Raw Materials In The Industries Of Feed, Oil,Flour,Rice Milling,Grain Warehouse, Food.

We are  manufacturing and exporting Drum Cleaner, Powder Material Cleaner, Tube Magnet,Pulse Filter and so on for feed machinery. All of our feed machinery and bio-energy equipment have got CE and ISO9001:2000.



Grain Processing machinery

Feature:

1.It has good cleaning effect and high impurities removing efficcency. The efficiency of removing big impurities is higher than 99%. The big impurities do not contain complete granules or clean materials:

2.Horizontal contilever screen cylinder is adopted. Screen cylinder is divided into feeding section and discharging-sieving section. The use of different combinatin of screen holes can get ideal sieving efficiency:

3.Adverse feeding type is adopted. The discharging secion of screen cylinder is fitted with screw, which increase actual sieving length, reachinges sufficient sieving effectively prevents impurities from carrying clean materials:

4.The structure of inner sieving and outer brush cleaning is adopted. The fiber impurities and paddy straw are discharged in the shape of ball through guide screw and are cleaned automatically and reliably:

5.It has low power, high capacity, smooth and reliable running, convenient screen replacing and maintenance, compact structure and less floor space:

6.It is widely used for pre cleaning of raw materials in the industries of feed, oil, flour, rice milling,grain warehouse,food,ect.



Main Technical paremeters:

Model	SCY50	SCY63	SCY80	SCY100
Output(t/h)	10-20	20-40	40-60	60-80
Power(kw)	0.55	0.55	0.75	1.5















About HME



Questions

1. Q: Are you a trading company or a manufacturer?     A: We are a manufacturer, which has almost 20 years of experience in this industry. 2. Q: How can I get to your company?     A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport. 3. Q: How long is your guarantee?     A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience. 4. Q: Will you send engineers to install the plant?     A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.



Exported Equipment

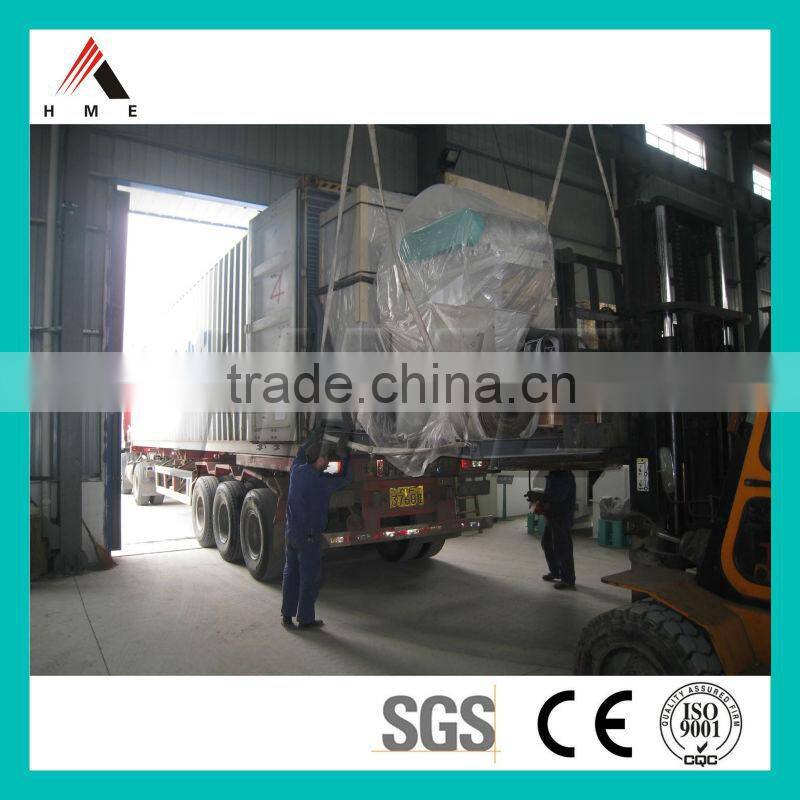

HME products have been exported to South Korea, Irag, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is making your business to the top level.





Our Project

JIANGSU DEHUI MACHANICAL AND ELECTRICAL CO.,LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. HME has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to HME products.







Certification
