Product Details
| Place of Origin | Hebei, China | Brand Name | XINGHE | |
| Model Number | ZLP630,ZLP800 |
Product Description
Parts contains:

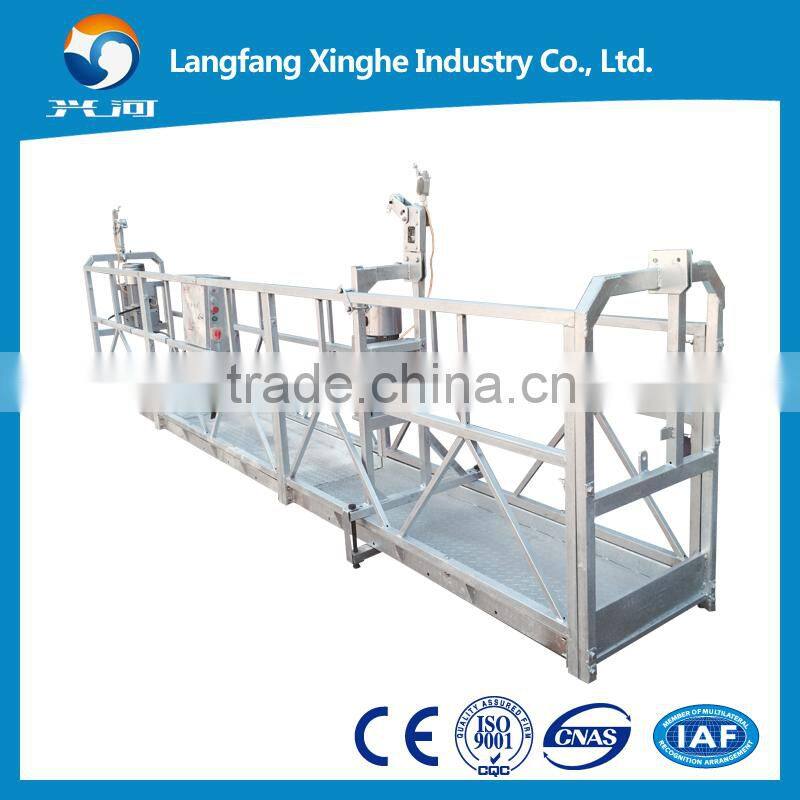

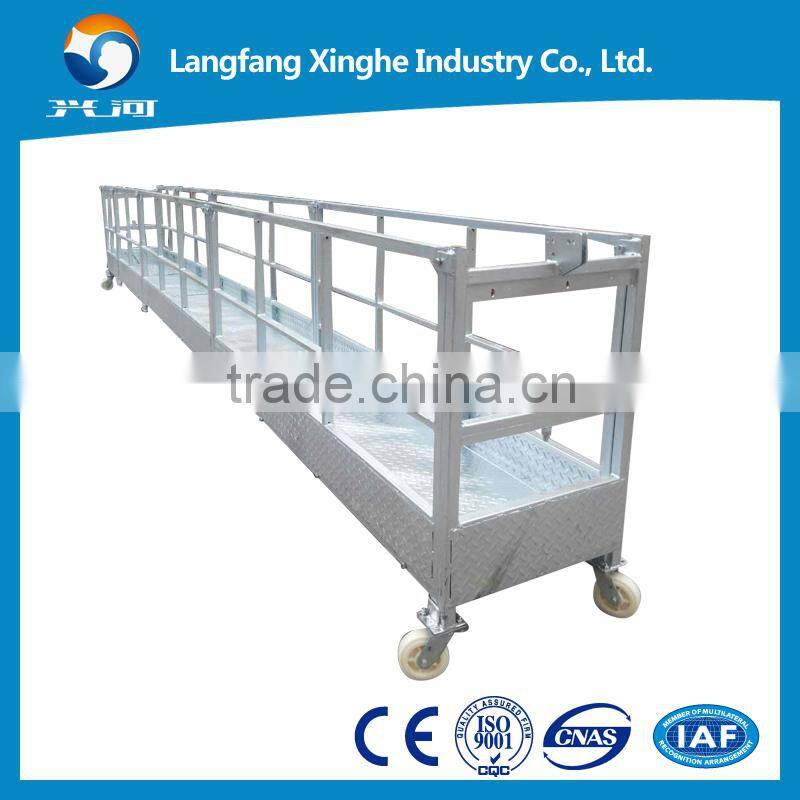

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)

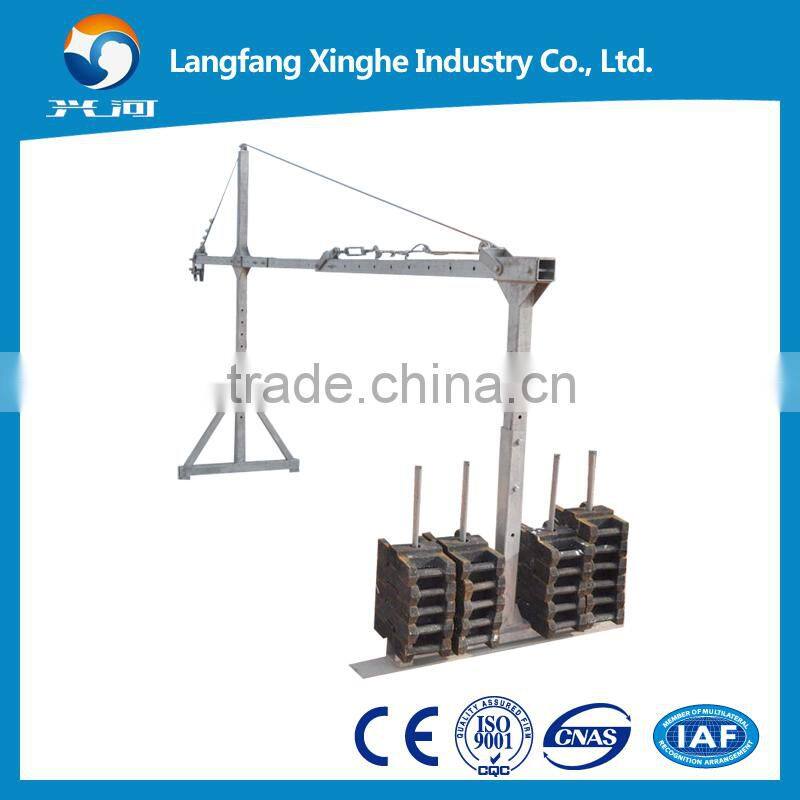

2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD63 or LTD80
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement , cement with steel cover & Iron counterweight
9. Spare parts
Key Points:
1. Max lifting height: 100m;
2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight.;
6. H.S Code: 8428909090;
7. Certification: CE & ISO;
8. We can also customize for you.
zlp series suspended platform / cradle / gondola technical parameters
| Item | zlp630 suspended platform | zlp800 suspended platform |
| Rated Loading | 630kg | 800kg |
| Lifting Speed | ~9.5m/min | ~8.5m/min |
Platform size(L*W*H) | (3*2000mm)*690mm*1180mm | (3*2500mm)*690mm*1180mm |
Suspension Mechanism
|
Rated exerted length of front beam
| 1.1m~1.5m |
Terrain clearance of front beam | 1.45m~1.75m |
| Type | LTD63 | LTD80 |
| Motor type | Customization | Customization |
| Power | 2*1.5Kw | 2*2.0Kw |
Voltage | 380v/415v/220v(50hz) | 380v/415v/220v(60hz) |
Speed | 1400n/min | 1400n/min |
Braking torque | 15N.M | 15N.M |
Safety Lock | ||
| type | LS30 | |
Angle of tilted locking rope | 3°~8° | |
Allowable impact force | 30KN | |
| Quality | ||
Suspension platform | 300kg | 370kg |
Hoist | 52kg*2 | 56kg*2 |
Safety lock | 5.5kg*2 | 5.5kg*2 |
Suspension mechanism | 320kg (not including counter weight) | 320kg (not including counter weight) |
Electricity box | 18kg | 18kg |
Complete machine | 753kg | 831kg |
Counter weight | 1000kg(25kg*40pcs) | 1000kg(25kg*40pcs) |
| Loading quantity | 20GP | 12sets suspended platform |
40HQ | 30sets suspended platform |
| Wire rope | ||
| Type | 4*31SW+FC-φ8.3 Broken pulling force≥53500N | 4*31SW+FC-φ8.6 Broken pulling force≥62500N |
| Cable line | Type | 3*2.5+2*1.5YC-5(one picec) |

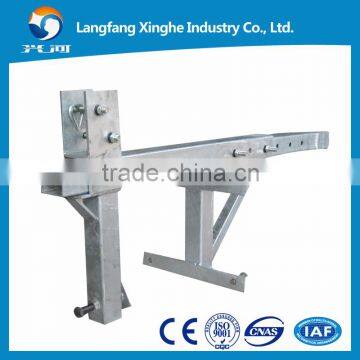

1. Working platform, suspension mechanism
With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.

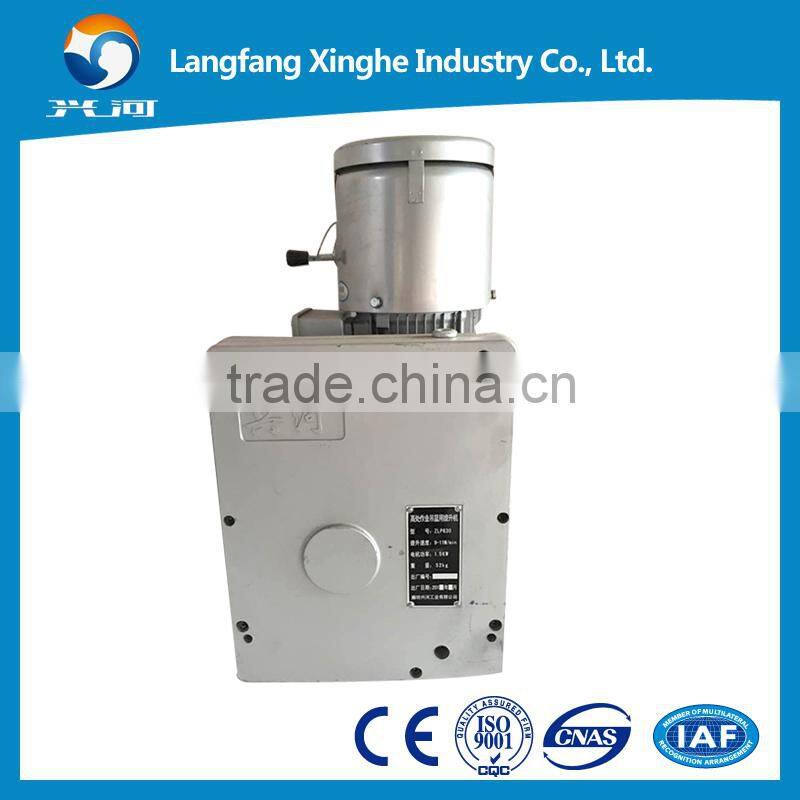

2. Hoist
With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,the motor stops working, so that factor of safety is increased meantime, maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.

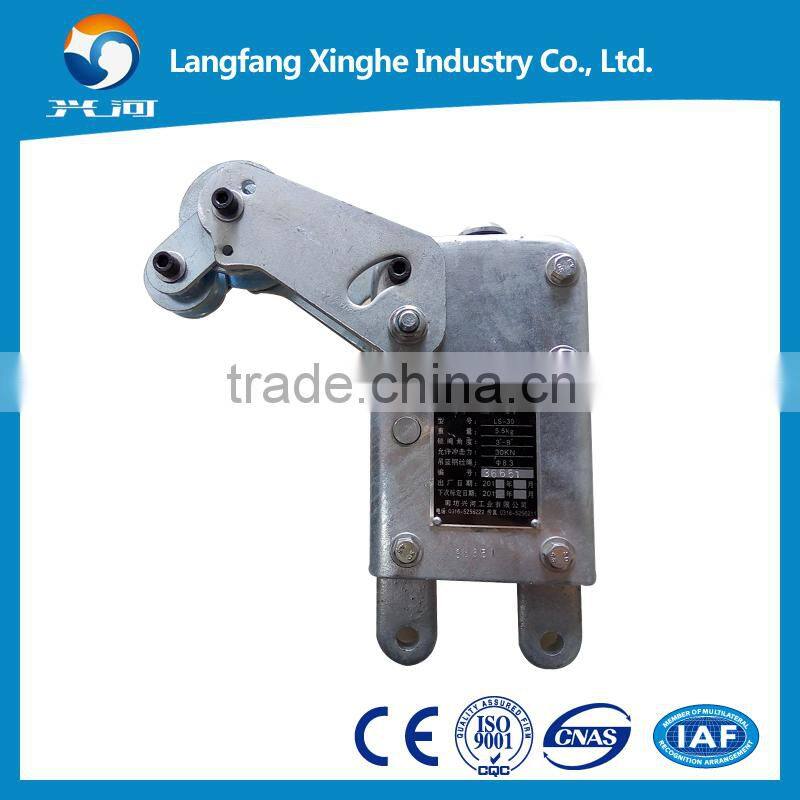

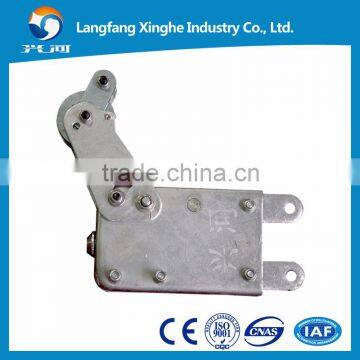

3. Safety lock
The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.

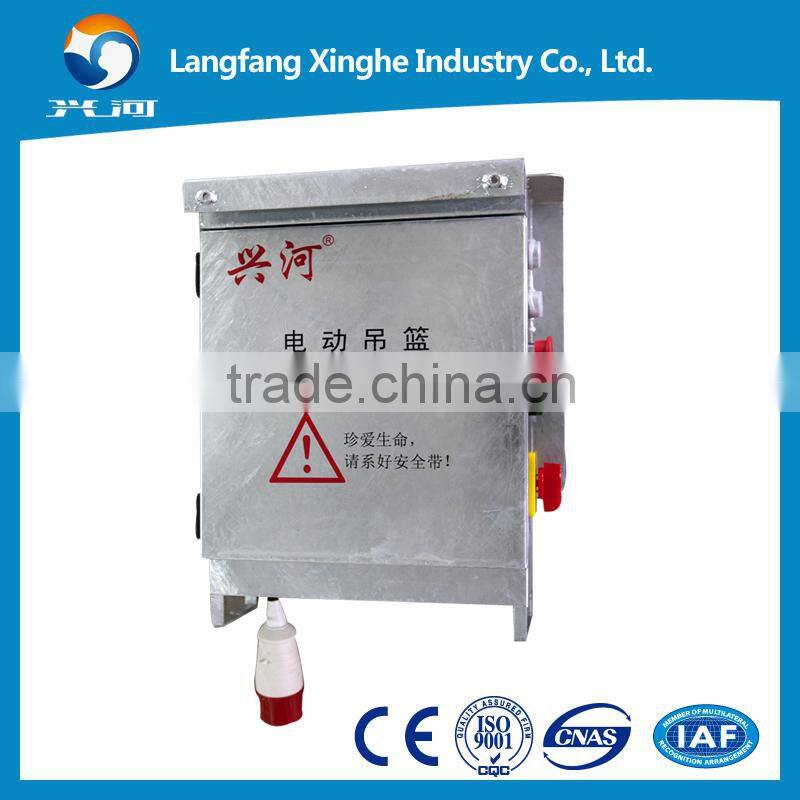

4. Electric system
The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.
5. Counter weight
The shell of counter weight uses 1.5mm steel plate, the using life can be more than 5 years.
6. Wire rope
4*31sw high quality wire rope
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and kowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.
Langfang Xinghe Industry Co,Ltd are willing to make our world safe and wonderful.
