Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK

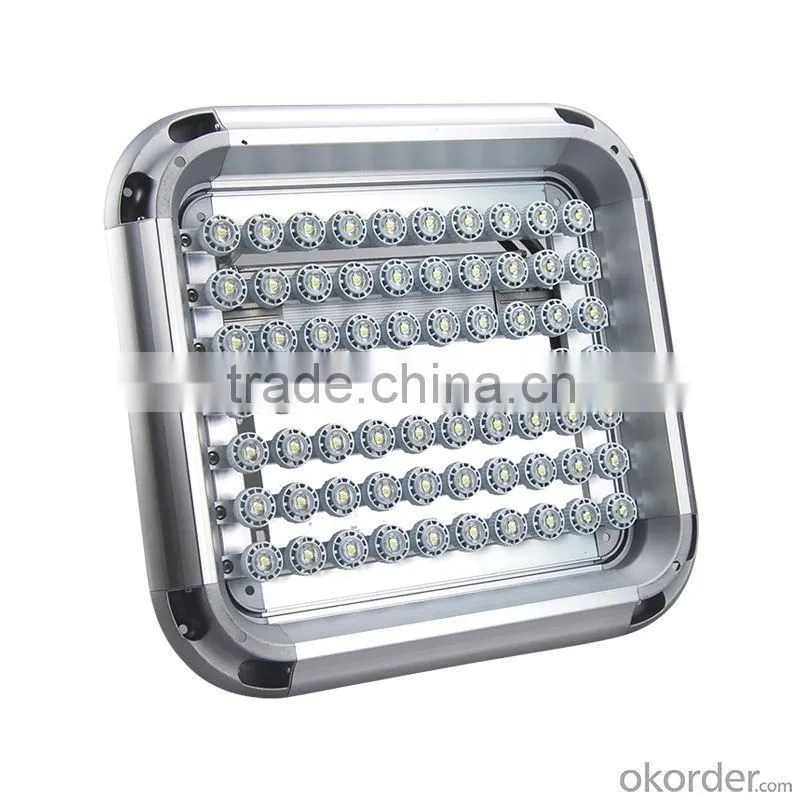

LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK

LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK thumbnail-1
LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK thumbnail-2
LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK photo-1
LED High Bay Light / LED Low Bay Light High Bay/ Low Bay Light C0820-EC/C0820-BK photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
IP Rating:
IP66
Certification:
CE, ETL, VDE
Contact Supplier Request Quote Chat Now
CNBM International Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
IP Rating IP66
Certification CE, ETL, VDE

Product Description:

Product Features


Composed of high quality aluminum


Environmently-friendly with high luminous efficiency


AC85~264V wide input voltage range


Operating Temp-40℃~+55℃






Technical Parameters



Model Power Wattage Luminous Flux CCT CRI IP Dimension Net Weight
C0820-EC-60W          60W       6000lm 4000K/5000K ≥65 IP65 L568×W568×H102    3.8 kg
C0820-EC-80W          80W       8000lm 4000K/5000K ≥65 IP65 L568×W568×H102    3.9 kg
C0820-EC-100W         100W      10000lm 4000K/5000K ≥65 IP65 L568×W568×H102    4.2 kg
C0820-EC-120W         120W      12000lm 4000K/5000K ≥65 IP65 L568×W568×H102    4.4 kg
C0820-EC-140W         140W      14000lm 4000K/5000K ≥65 IP65 L568×W568×H102    5.0 kg
C0820-EC-160W         160W      16000lm 4000K/5000K ≥65 IP65 L568×W568×H102    5.5 kg
C0820-EC-180W         180W      18000lm 4000K/5000K ≥65 IP65 L568×W568×H102    6.0 kg
C0820-EC-200W         200W      20000lm 4000K/5000K ≥65 IP65 L568×W568×H102    6.5 kg
C0820-BK-60W          60W       6000lm 4000K/5000K ≥65 IP65 L280×W414×H315    3.8 kg
C0820-BK-80W          80W       8000lm 4000K/5000K ≥65 IP65 L280×W414×H315    3.9 kg
C0820-BK-100W         100W      10000lm 4000K/5000K ≥65 IP65 L315×W414×H315    4.2 kg
C0820-BK-120W         120W      12000lm 4000K/5000K ≥65 IP65 L350×W414×H315    4.4 kg
C0820-BK-140W         140W      14000lm 4000K/5000K ≥65 IP65 L385×W414×H315    5.0 kg
C0820-BK-160W         160W      16000lm 4000K/5000K ≥65 IP65 L420×W414×H315    5.5 kg
C0820-BK-180W         180W      18000lm 4000K/5000K ≥65 IP65 L455×W414×H315    6.0 kg
C0820-BK-200W         200W      20000lm 4000K/5000K ≥65 IP65 L490×W414×H315    6.2 kg
C0820-BK-220W         220W      22000lm 4000K/5000K ≥65 IP65 L525×W414×H315    6.4 kg
C0820-BK-240W         240W      24000lm 4000K/5000K ≥65 IP65 L560×H414×H315    6.8 kg
C0820-BK-260W         260W      26000lm 4000K/5000K ≥65 IP65 L595×W414×H315    7.8 kg
C0820-BK-280W         280W      28000lm 4000K/5000K ≥65 IP65 L630×W414×H315    8.6 kg
C0820-BK-300W         300W      30000lm 4000K/5000K ≥65 IP65 L665×W414×H315    9.5 kg
C0820-BK-320W         320W      32000lm 4000K/5000K ≥65 IP65 L770×W414×H315    10.2 kg
C0820-BK-340W         340W      34000lm 4000K/5000K ≥65 IP65 L735×H414×H315    11.0 kg
C0820-BK-360W         360W      36000lm 4000K/5000K ≥65 IP65 L770×H414×H315    11.7 kg
