Home > Products > Window cleaning > pin type suspended working platform / electric suspended scaffolding platform / gondola platform for sale
pin type suspended working platform / electric suspended scaffolding platform / gondola platform for sale
- 400 Set / Sets per Month
- Tianjin Port
- T/T
Product Details
| Place of Origin: | Hebei, China | Brand Name: | XingHe | Model Number: | zlp800 |
Product Description

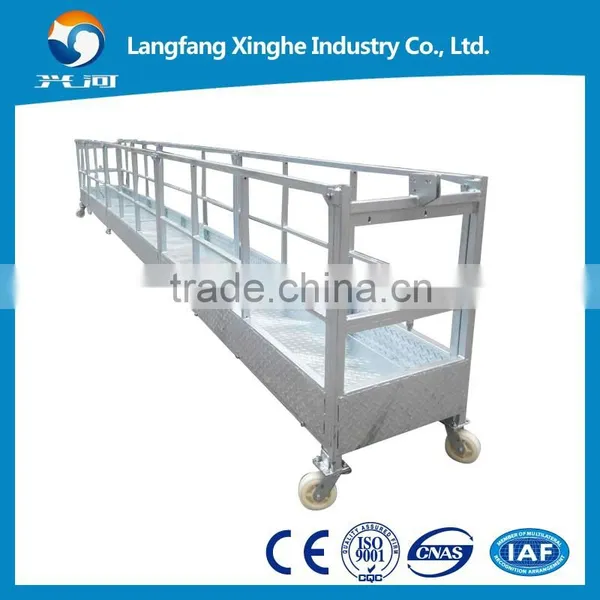

Powered suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
The welding of the support structure of the platform is made of quality steel profiles
The connection of the individual parts of the structure in each unit is made with nuts and bolts.
The powered suspended platform is equipped with wheels for easy movement around the construction site.
ZLP Suspended platform / Cradle / Gondola
Specification :
1.Type: zlp 630 & zlp800 & zlp 1000
2.Surface finished: Hot galvanized & aluminum alloy
3.Lifting height: 100m , 300m maximum
4.HS Code: 84289090
5.Certificate: ISO9001 & CE
6.Warranty : The whole machinery is for one years, some main components are 6 years
7.We can also customize for you
Technical parameters:
| Model | zlp630 | zlp800 | zlp1000 |
| Material of platform | Steel & Aluminum alloy | ||
| Rate loading capacity | 630kg | 800kg | 1000kg |
| Length of platform | 6m | 7.5m | 7.5 |
| Safety lock | LS30 | ||
| Hoist Model | LTD63 | LTD80 | LTD80(S dirve ) |
| Loading quantity (20 gp) | 9 | 8 | 7 |
| Counter weight | 25kg*40 | 25kg*40 | 25kg*40 |
| Diameter of wire rope | 8.3mm | 8.6mm | 8.6mm |
| Voltage | 220v/380v/415v 50/60hz 3 phase or single phase | ||
Parts List of Complete Suspended Platform / Cradle / Gondola
| NO. | Parts Name | Quantity | Description |
| 1 | Working platform | 3 | The length of work platform include 1m,2m,3m,1.5m,2.5m The work platform can be made in any combination based on customer's requirement . |
| 2 | Hoist | 2 | LTD 63 & LTD80 Surface finished : hot galvanized |
| 3 | Safety lock | 2 | LS30 |
| 4 | Suspension machanism | 2 | Surface finished : hot galvanized |
| 5 | Control panel | 1 | Along with hoist |
| 6 | Limit position switch | 2 | |
| 7 | Limit position plate | 2 | |
| 8 | Wire rope | 100m*4 | 4*31SW- FC- 8.3 &8.6&9.1 |
| 9 | Electric cable | 1 bundle | 3*2.5+2*1.5YC-5 |
| 10 | Counter weight | 25kg*40 | three types: cement & cement with steel cover & iron-casting |
| 11 | Heavy hammer | 4 | |
| 12 | Life rope | 100m*1 | Selective |
| 13 | Self -lock device | 1 | Selective |
Suspended Platform / Cradle / Gondola Product Show
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
20GP can load 8 sets with counter weight, 10~12 sets without counter weight
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.
Langfang Xinghe Industry Co,Ltd are willing to make our world safe and wonderful.
