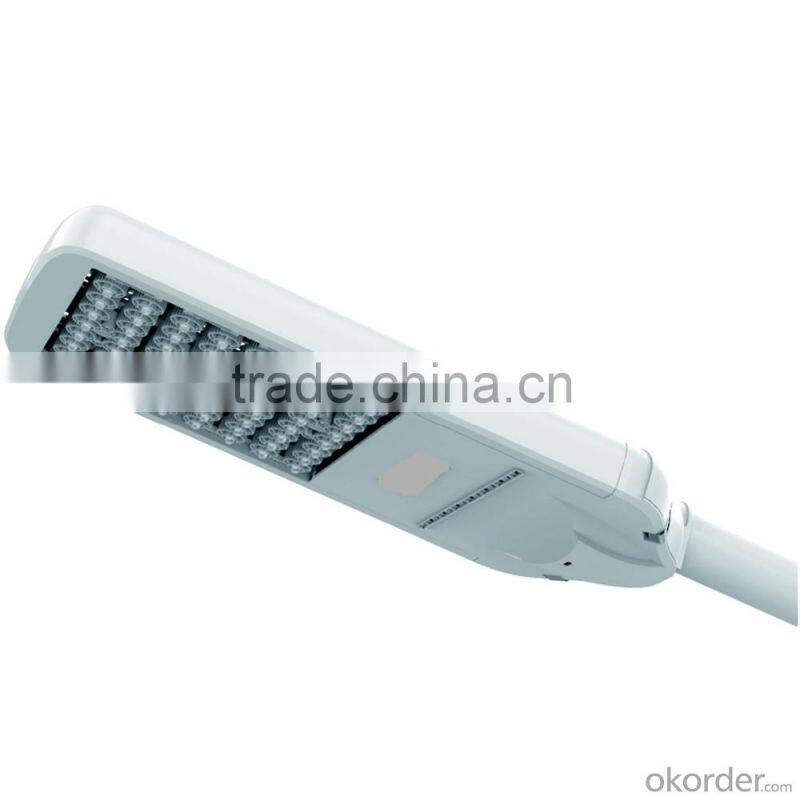

Help CenterLED Road Light/LED Cobra Head /LED Street Light - Replaceable LED Light Engine for Easy Replacement and Maintenance
Related Products
-
LED FloodlightThe LED Lamp Tower Crane LED Light Industrial and Mining Lamp400WNegotiableMOQ: 1 Unit -
The LED Streetlamp CE ,CQC,CCC With New Type of Energy Conservation, Environmental Protection and EfficientNegotiableMOQ: 1
-
LED Downlight Square Cob Competitive Price Dimmable Led Downlight 7W/10W Led Downlight With Wood Grain HousingNegotiableMOQ: 1 Unit
-
Led Cob Ceiling Spot Light 15W 20W 30W 40W for 3 Years Warranty Certificates:CE,RoHS ,CCC,SAANegotiableMOQ: 1
-
LED Downlight Adjustable Round Surface Mounted Led Cob Downlight 7W/10W 15WNegotiableMOQ: 1 Unit
ABOUT THE PRODUCT
- Replaceable LED light engine for easy replacement and maintenance
- Sleek and slim housing design
- Lens customization according to light distribution and color temperature
- Nichia Japan LED chips
AREAS OF APPLICATION
Roadways, Highways, Area Lots, Car Dealership and more.
TECHNICAL DATA
Electrical Specifications
Wattage options: 60W-250W
Voltage options: 120-277 VAC, 347/480 VAC (optional)
Frequency: 50/60 Hz
Power factor: ≥ 0.95
THD: < 15% at full load
Surge Protection:10kv
Optical Performance
Chip brand: Nichia
Color temperature: 4000K/5000K (Standard), 2700K/3000K (Customized)
Fixture efficacy: 100lm/w
Luminous flux: 6000lm - 25000lm
Color render index (CRI): >65
IESNA Distribution Types: SI, SII, MII, MIII
Surage Protection: 10kv
Colors and Materials
Body material: Aluminum
Product color: White, black, silver, bronze, gray
Temperatures
Ambient temperature range: -40~+55°C
Lifespan
Lifespan: 50,000 hours
Capabilities
Type of installation: Pole-mounted
Dimmable: Yes
Photocell: Yes
Wireless Control System: Yes
Test & Certifications
Standards: ETL SGS RoHS DLC TUV ENEC
Protection class: I
Type of protection: IP66
Test reports: LM79, LM80, Intertek, TUV
SYSTEM SPECIFICATIONS
Model Number |
Wattage |
Lumen output |
Dimensions (mm) |
Net weight |
C0820-HR-60W |
60W |
6000 |
605x280x146 |
5.0kg |
C0820-HR-100W |
100W |
10000 |
738x347x165 |
7.2kg |
C0820-HR-120W |
120W |
12000 |
738x347x165 |
7.4kg |
C0820-HR-160W |
160W |
16000 |
899x428x193 |
9.4kg |
C0820-HR-200W |
200W |
20000 |
899x428x193 |
9.8kg |
C0820-HR-220W |
220W |
22000 |
899x428x193 |
10.0kg |
C0820-HR-250W |
250W |
25000 |
899x428x193 |
10.3kg |
