building maintenance unit
Specifications

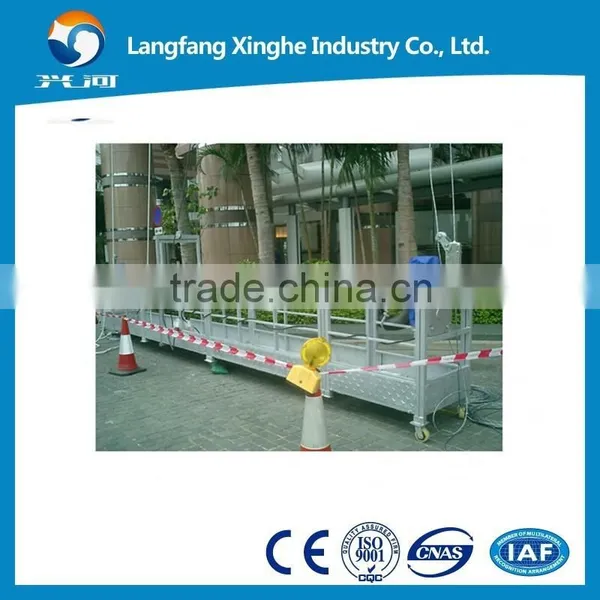

Suspended Platform
1. Easy to use
2. Cost effective solutions
3. Reasonable prices, advanced technology
4. Quality Guarantee
Breif introduction
Just as computers have taken over the role of typewriters, suspended platforms have taken over the role of scaffolding ladders.
Suspended platforms are mechanical devices that lift workers into the air to complete work at hard to reach heights. It is widely used
in exterior wall construction, cleaning, maintenance, painting, power station, ship yards, municipal projects, etc.
Application:
1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components, repairing, checking,
maintenance and cleaning for external wall
2. Large-scale project: construction, repairing and maintenance for large tank, chimney, dams, bridges, derrick
3. Large ships: welding, cleaning and painting
4. billboard: installation billboard for high-rise building
Parameters of Suspended Platform:
Model |
ZLP250 |
ZLP500 |
ZLP630 |
ZLP800A |
ZLP800S |
Material |
Steel or Aluminum Alloy |
||||
Rated Capacity(kg) |
250 |
500 |
630 |
800 |
800 |
Lifting Speed (m/min) |
9-11 |
9-11 |
9-11 |
8-10 |
8-10 |
Motor Power (kw) |
LTD5 |
LTD5 |
LTD6.3 |
LTD8 |
LTD8 |
Platform Length (m) |
2.5 |
5 |
6 |
7.5 |
7.5 |
Counterweights (kg) |
625 |
750 |
900 |
1000 |
1000 |
Diameter of Wire rope (mm) |
8.3 |
8.3 |
8.3 |
8.6 |
8.6 |
Standard lifting height (m) |
100 |
100 |
100 |
100 |
100 |
Superiority:
1. We had already passed the authorization by ISO9001:2008 and CE and established a complete set of quality assurance system.
2. Under such a complete set of quality assurance systems, there is a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working out production plan, production, test and inspection, packaging, storage, delivering, trace, keep in touch with clients, etc.
3. The CNC control center and PC-based production and marketing system not only improves the working efficiency but also assures the products quality.
4. Our test lines are equipped with a large amount of online test instruments, so that they can ensure and improve the products quality.
5. We also have a complete set of equipment and techniques for testing and controlling the performance of products, which ensures our Suspended Platform quality to take a leading position among the fellow products at home and reach the international standard.
Company profile
Langfang Xinghe Industry Co.,Ltd is a professional manufacturer of temporary installed suspended platform in China, with more than 20 years production and service experience.

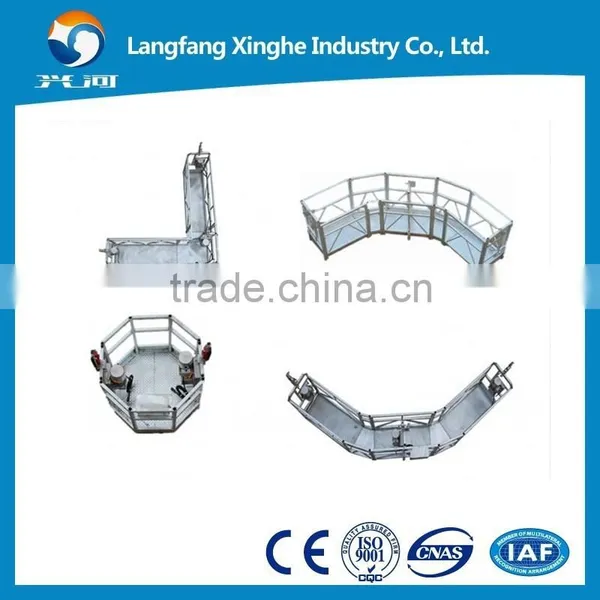

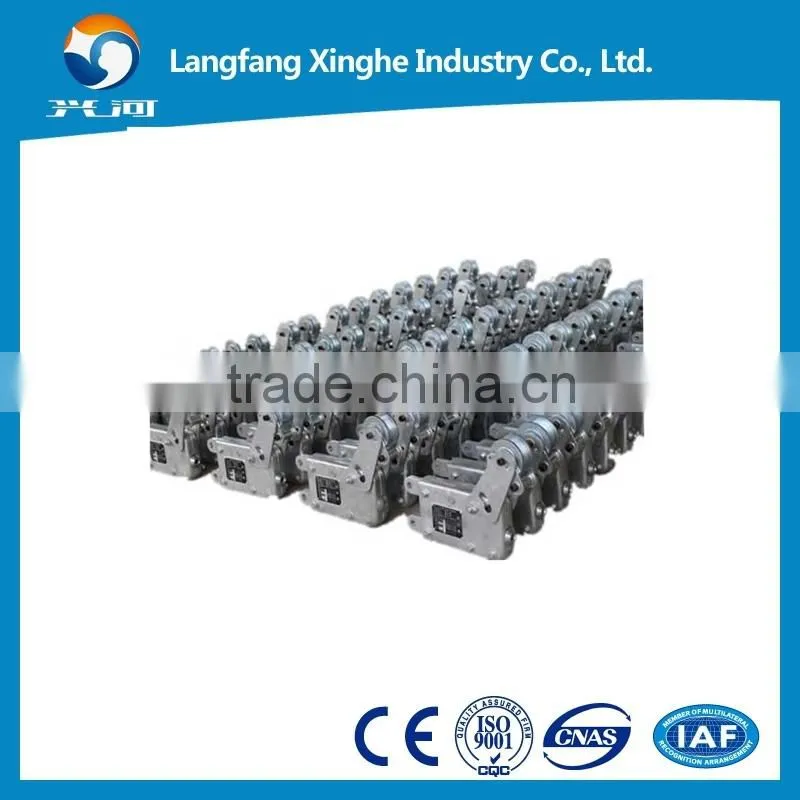

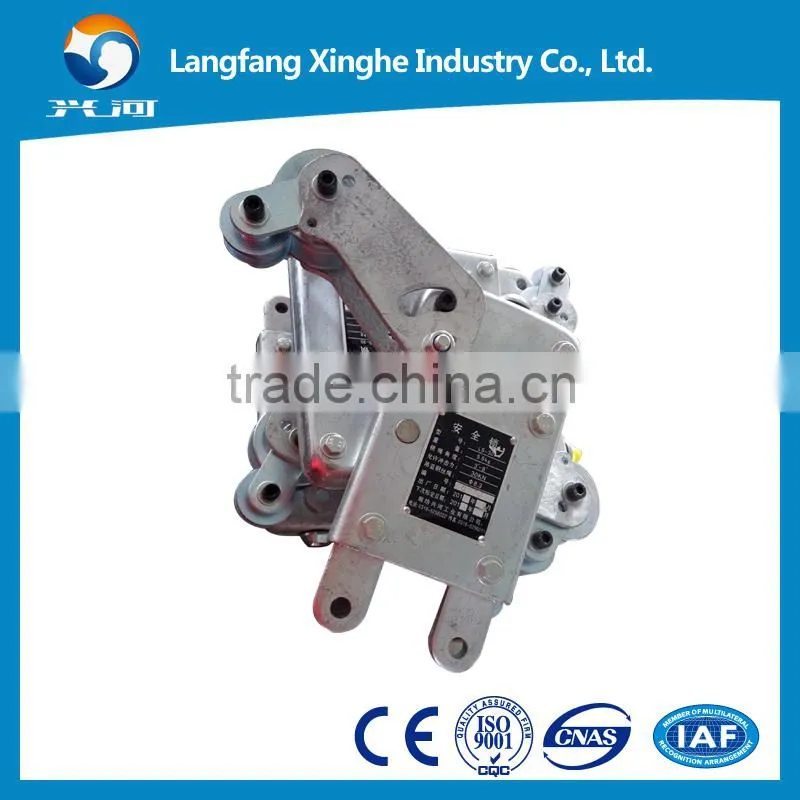

Our products mainly includes ZLP630,ZLP800,and components,hoist,safety lock and others. We also produce special suspended platform, such as angle suspended platform,adjustable suspended platfor,double angle platform and other special
platform as per customer's requiments.
We always adhere to the "integrity based, customer first" purpose , and provide the best quality products and super services for per customers.
