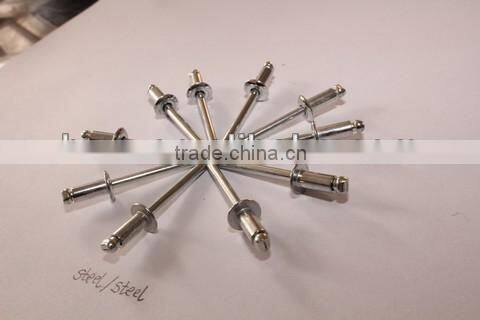

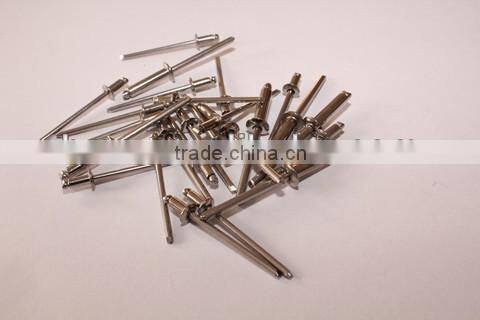

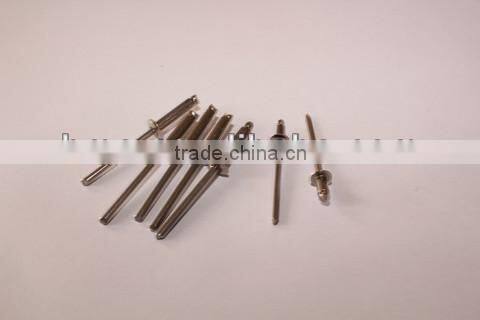

Stainless steel Open type blind rivet

Specifications

Open type blind rivet
1. Material: Aluminum, Steel
2. With dome head
3. Good price, fast delivery, high quality.

Blind Rivet

Open type blind rivet:

- Aluminum/Steel open type

- Al steel open type

- All stainless steel open type

- Stainless steel/Steel open type

- All aluminum open type

- Copper/Steel open type

- Colored blind rivet

- Large flange open type



Peel type blind rivet:

- Aluminum/Steel peel type



Closed end type blind rivet:

- All steel closed end type

- All tainless steel closed end type

- Aluminum/Steel closed end type



Special type Rivets:

- Hem-Fix type

- Unigrip Type

- Multi-grip type

- Cup-Fix type

- Grooved type



Open type series Rivets

Rivet size D (mm)	Rivet Length mm	Grip Range	Head Dia.	Head Height (max. mm)	Mandrel Dia. mm	Hole Size (Drill)
2.4mm	4, 6, 8, 10, 12mm	0.5~9.5	4.2-5.0	1.0	1.55	2.5
3.0mm	6, 8, 10, 12, 14, 16, 18, 20mm	1.5~17.0	5.4-6.3	1.3	2.00	3.1
3.2mm	6, 8, 10, 12, 14, 16, 18, 20, 25mm	1.5~22.0	5.8-6.7	1.0	2.00	3.3
4.0mm	6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35mm	1.0~30.0	6.9-8.4	1.7	2.45	4.1
4.8mm	6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40mm	1.5~35.0	8.3-10.1	2.0	2.95	4.9
6.4mm	10, 12, 14, 16, 18, 20, 25, 30, 35, 40mm	3.0~33.0	11.6-13.4	2.7	3.90	6.5

Other Dia. 5.0mm, 6.0mm available as per customer's request.







Please send email to us for more infomation & price list.
