aluminum / hot galvanized elevation platform for construction / building cleaning lift gondola / new wire rope cradle

ZLP Series Suspended platform / Cradle / Gondola  mainly include two types: zlp630 & zlp800

Suspended platform is mainly used in exterior wall construction and maintenance of high-rise and multi-story buildings. For example: exterior wall plastering, brushing coating, paint, cleaning, sticking marble, curtain wall construction, repairing works of bridges and dams. It is also applied for installation of elevators, hull outside repairs in ship construction. This is an ideal machine for construction companies, curtain wall companies and cleaning companies.

Structure of Suspended Platform

Five main structure: (1) Platform (2) Hoist Assembly (3) Satety Device (4) Electric System (5) Suspension Mechanism

Parts contains:

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)

2. Suspension Mechanism: Steel (painted or hot galvanized)

3. Electric hoists:LTD6.3 or LTD8

4. Safety Lock: LST30

5. Electric control box: Along with hoists

6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm

7. Electric cable: 3*2.5+2*1.5

8. Counterweights: Cement , cement with steel cover & Iron counterweight

9 Spare parts

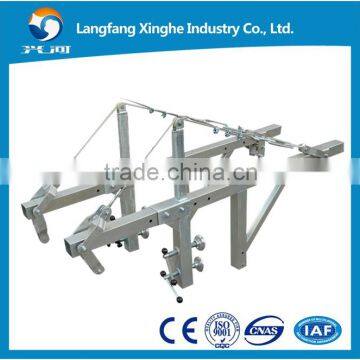

1. Working platform, suspension mechanism

With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.

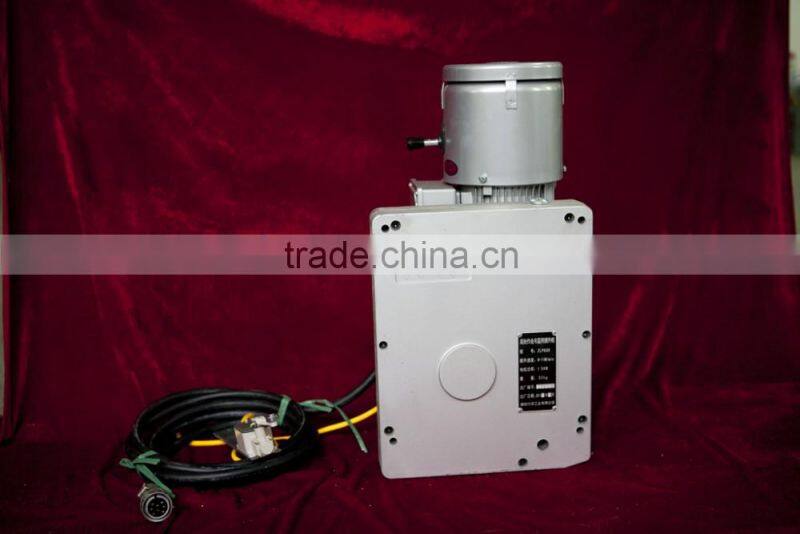

2. Hoist

With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,the motor stops working, so that factor of safety is increased meantime, maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.

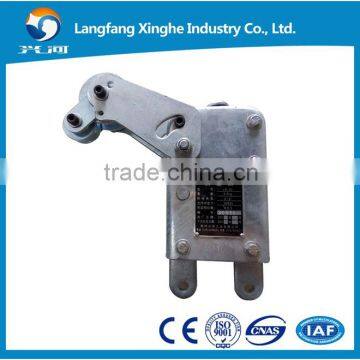

3. Safety lock

The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.

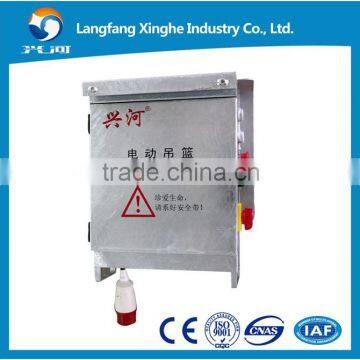

4.  Control Panel / Control Box

 The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.

5. Counter weight

1. Hot galvanized stee sheet with build concrete

2. Cast iron

6. Wire rope

 4*31sw high quality wire rope

Hoist and safety lock are packed in one plywood case, size 610*310*340mm;

Control box/ control panel is packed in a plywood case,size 570*440*270mm;

Other components are fastened by rope and then by pallet

20GP can load 8 sets with counter weight, 10~12 sets without counter weight

Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.

As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and kowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.

Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.

Langfang Xinghe Industry Co,Ltd has advanced processing center, large hydraulic&punching equipment. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share, and bring more benefit for our clients in the global.

Langfang Xinghe Industry Co,Ltd are willing to make our world safe and wonderful.
