China Original Carbon Steel Welding Rods E6013 Electrodes Quality Choice

China Original Carbon Steel Welding Rods E6013 Electrodes Quality Choice photo-1
US$ 750 - 960 MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
MACRO,PALADIN,OSUN,
Model Number:
E6013,E6011,E7018,E7015
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name MACRO,PALADIN,OSUN,
Model Number E6013,E6011,E7018,E7015
Material Steel Alloy
Length 250mm, 300mm,350mm,400mm,450mm
Operating Current AC,DC,DC+
Welding Current 40A to 300A
Operating Temperature -35°C to 40°C
Diameter 2.5mm, 3.2mm,4.0mm,5.0mm
Application low and mild steel or alloy steel, carbon steel,low allory steel,medium carbon steel

Specifications

China original carbon steel welding rods E6013 electrodes
Perfact welding forming
Stable arc
less splash and smoking

China original carbon steel welding rods E6013 electrodes



Introduction: J421 is a kind of carbon steel electrode with titania type coating. AC/DC. All-position welding. It has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.



Chemical Composition of Deposited Metal (%)
Chemical Composition
C
Mn
Si
S
P
Guarantee Value
≤0.12
0.3~0.6
≤0.35
≤0.035
≤0.040

Mechanical Properties of Deposited Metal
Test Item
Rm(MPa)
ReL(Mpa)
A(%)
KV2(J)
KV2(J)
Guarantee Value
≥420
≥330
≥17
-(normal temperature)
-(0°C)
General Result
460~540
≥340
18~26
50~80
≥47

X-ray Radiographic Inspection: ⅡDegree

Reference Current(AC, DC)
Electrode Diameter(mm)
φ2.0
φ2.5
φ3.2
φ4.0
φ5.0
Welding Current (A)
40~70
50~90
90~130
130~210
170~230

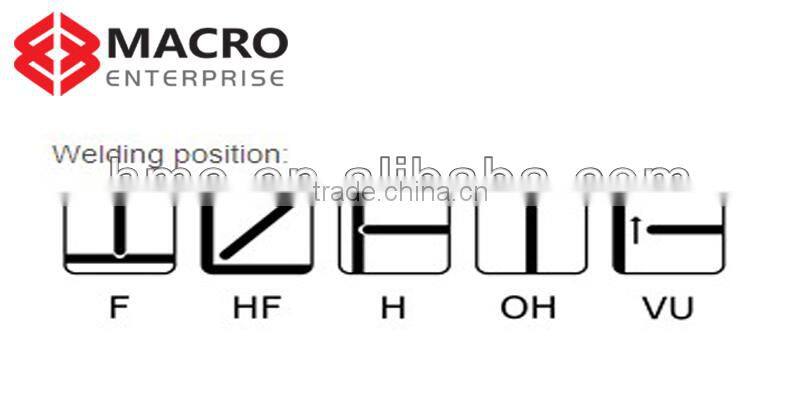

Welding Positions: be used for all position weldings

China original carbon steel welding rods E6013 electrodes







Stronger seaworthy packing style as below, for special package,please request with us when ordered.



China original carbon steel welding rods E6013 electrodes





Pallets for shipped by sea



China original carbon steel welding rods E6013 electrodes
