Belt Conveyor roller bearing housing

Specifications

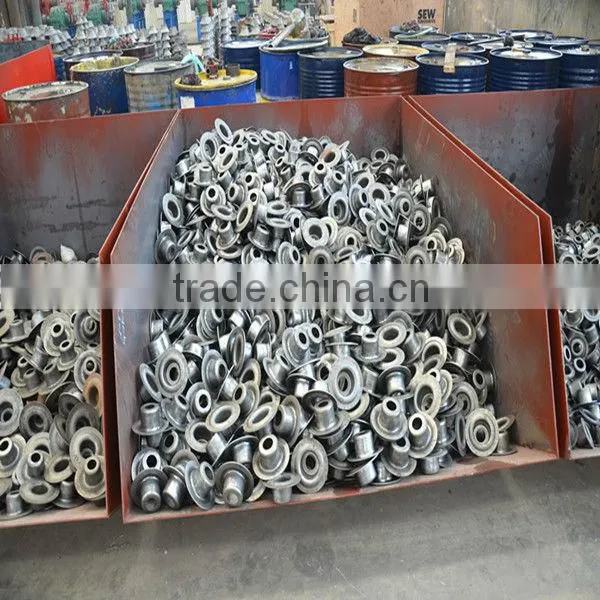

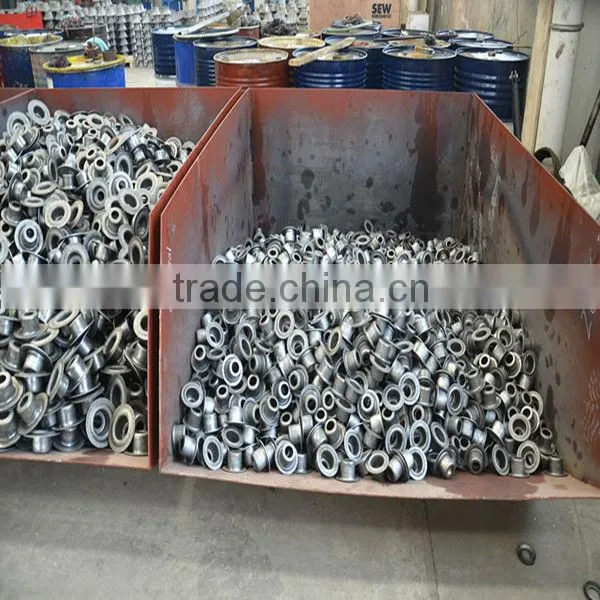

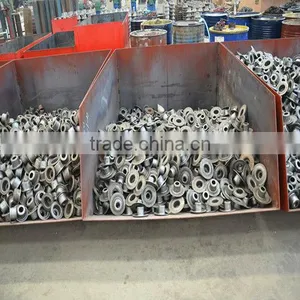

Conveyor roller bearing housing
1 Mine Conveyor Roller Bearing Housing
2 Dia:89,108,114,133,159
3 Bearing No. : 6204/6305

Conveyor roller bearing housing

Key features:

1. Mould



(1)Material: DC53 from Japan, Cr12Mo1V1 from China



(2)Minimal usage: 600 thousand times







2. Material



(1)Name: SPHC



(2)Feature: Even thickness



                  Surface iron oxidation



                  Easy to weld,coat and paint oil.



GS carbon steel idler conveyor roller bearing housing





Specification	External D(mm)	Bearing seat (mm)	Caliber (mm)	Hole (mm)	Height (mm)	Deep (mm)	Thickness (mm)
89*6204	84	47	47	35	28	28	3
108*6204	104	47	47	35	28	28	3
159*6204	153	47	47	35	28	28	3
89*6205	84	52	52	40	32	32	3
108*6205	104	52	52	40	32	32	3
133*6205	128	52	52	40	32	32	3
159*6305	153	62	62	40	36	36	3
133*6306	128	72	72	53	38	38	3
194*6308	188	90	90	65	47	47	3











Generally, a set of GS bearing housing has 3 parts







                1. housing







                2. inner labyrinth seal







                3. outer labyrinth seal















Material: 1. SPHC: housing







                 2. POM: inner labyrinth seal , outer labyrinth seal
