Specifications
steel cord conveyor beltUsage: transport materials
Material: Rubber& steel cord
Certification: ISO certificated
Types:NN/EP/COTTON Conveyor Belt, Chevron Conveyor Belt,Endless Conveyor Belt
Heat Resistant Conveyor Belt(120 CD,150 CENT DEGREE,180CD);
Cold Resistant Conveyor Belt(-50 Cent degree);
High temperature Resistant Conveyor Belt (200-500 Cent degree)
Acid and Alkali Resistant Conveyor Belt; Oil Resistant Conveyor Belt
DPEM Conveyor Belt(which is very suit for Cement plant)
3. Width:300 to 2600 mm
4.Tensile Strength: 8Mpa-24Mpa
5. Abrasion: 350mm3 - 90mm3
6. Standard:DIN22102 (DINW,DINX,DINY,DINZ,DINK)
RMA(RMA Ⅰ, RMAⅡ)
AS1332( M24,N17 )
SANS 1173 (A,C,M,N)
GB7984-87
7. Fabric:cotton or polyester-cotton,EP80--EP630, NN80-NN630
8. we manufact lots of conveyor belts as below requirement.
| Item | Unit | Cover Rubber Proerties | ||||||||
| DINW | DINX | DINY | DINZ | RMA Ⅰ | RMAⅡ | |||||
| Tensile Strength≥ | N/mm2 | 18 | 25 | 20 | 15 | 17 | 14 | |||
| Elongation at Break≥ | % | 400 | 450 | 400 | 350 | 400 | 350 | |||
| Abrasion | mm3 | 90 | 120 | 150 | 250 | 175 | 250 | |||

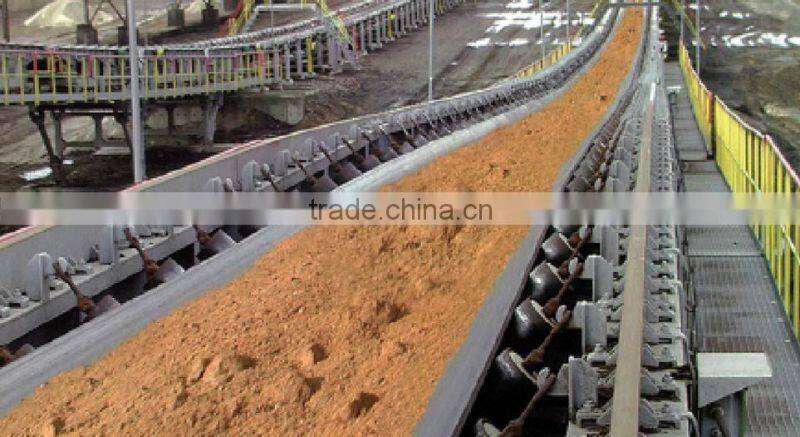

9. Useage: It is suitable for conveying materials at medium or long distance and under conditions of heavy load and high speed.
10. Varieties: In accordance with the characteristics of the covered rubber , there are belts of general,heat resistance, fire resistance, cold resistance, acid-basic resistance,and oil resistance
11. Characteristics:
(1)Under standard load condition ,the spreading atio is small,The spreading is small in use.
(2)The flexure is good .As a result a trough can be easily made.
(3) It resists impact and wear.
(4)The water resistance is good .When damp or in water,it can be used without any decrease of the strength
(5)As the mode number of EP is greater ,if a design for conveyer belt is made, lower safety efficient can be adopted.
(6)Resistance to heat is stronger.
(7)No corrosion of mould will occur
