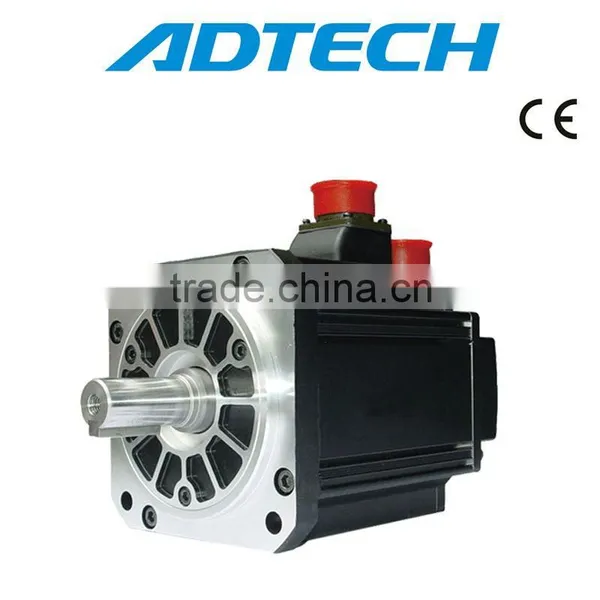

Stable AC Servo Motor ACH-13150A

Name: Stable AC Servo Motor ACH-13150A
Brand: Adtech
SKU: 107843885
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Adtech

Model Number:

ACH-13150A

Type:

Servo Motor

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Adtech

Model Number ACH-13150A

Type Servo Motor

Output Power 1.5KW

Phase Three-phase

AC Voltage Other, 220V

Place of Origin Guangdong, China

Specifications

1) 1500W high speed and torque servo motor;
2) Servo motor with low noise;
3) Easy installation AC servo motor.

Motor model	ACH-13150A
Rated power (W)	1500W
Rated rotation (r/min)	1500
Rated torque (N.m)	10
Maximum torque (N.m)	25
Rated line current (A)	6
Rated line voltage (V)	220
Rotor inertia (Kg.m²×10^-4)	19.4
Brake	---
Coder line number (PPR)	2500
Suitable drive model	QS5AA030M
Weight (Kg)	10.3
Insulation grade	B
Rating	Continuous
Ventilation protection	Completely sealed, self cooling
Installation mode	Flange (60, 90 110, 130)
Over-heating protection	None
Place, altitude and atmosphere	Indoor, lower than 1000m, no corrosive and inflammable gas, dust and oil mist
Ambient temperature and humidity	Environment temperature: -20°C ~+50°C; relative humidity: <90% (no condensing)
