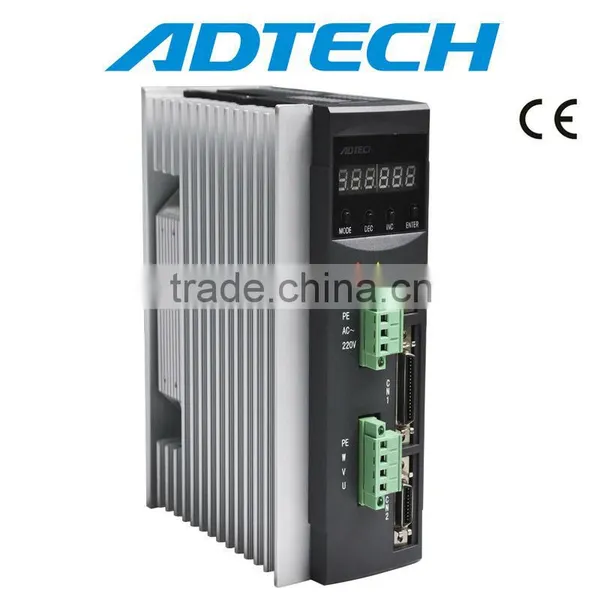

QS7AA020M is a new generation of universal servo drive products based on QS6 optimization and improvement, adhering to the QS6 series of excellent quality, more stable and more convenient. The QS7AA020M servo controllers are more mature and stable with rich and complete data. New adding 485 communication function makes to connect with the upper computer software or controller more convenient and reliable.
QS7AA020M AC Servo Driver Paramenter:
Input Voltage |
AC220V -15%~+10% |
Driver Current |
20A |
Matching Motor |
400W~750W motor |
Using Temperature |
Working environment temperature:45°C Storage environment temperature:-40°C~55°C |
Relative Humidity |
40%~80% (none condensing) |
Atmosphere |
86-106kpa |
Control Mode |
Position control;JOG control;Speed control;Torque control ;Position and speed control;Inside pulse control;Electric tool carrier control |
Pulse Command |
Pulse+ Direction;CW + CCW Pulse;Two-phase AB orthogonal pulses |
Control Precision |
0.01% |
Response Frequency |
≤200Hz |
Pulse Frequency |
≤500kHz |
Speed Ratio |
1:5000 |
Regenerative Brake |
Internally Installed |
Electronic Gear |
1/30000~30000/1 |
Overload Capacity |
≤300% |
Feedback Pulse |
2500p/r, frequency division can be set arbitrary within 0-128 |
Display Function |
Rotate speed, motor current, motor torque, current location,positional deviation, command impulse count, current pulse frequency, space rate, I/O diagnose, analog input values, etc |
Protection Function |
Over current, overvoltage, low voltage, overload, over heat, lack phase, over speed, ncoder abnormal, out of tolerance, mode abnormal alarm etc. |
