ADTECH-HC4500 CNC Plasma/Flame Cutting Controller
US$ 1,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADTECH
Model Number:
HC4500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADTECH-CNC4620 Two Axis Turning /Lathe CNC ControllerUS$ 800 - 1,000MOQ: 1 Set -
ADTECH-QS7AA010M AC Servo DriveUS$ 100 - 999MOQ: 1 Piece
-
Emobotic Servo Driver With Ethecat and PowerlinkUS$ 1 - 999MOQ: 1 Unit
-
56BYG Series 2-phase Stepper MotorUS$ 1 - 999MOQ: 10 Pieces
-
Ac Servo Motor Drive Can Match With Many Brand MotorsUS$ 100 - 999MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ADTECH
Model Number
HC4500
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
ARM9 processor, super large customized type of IC chip,7 Inch color LCD display screen,
high Speed /precision and stable

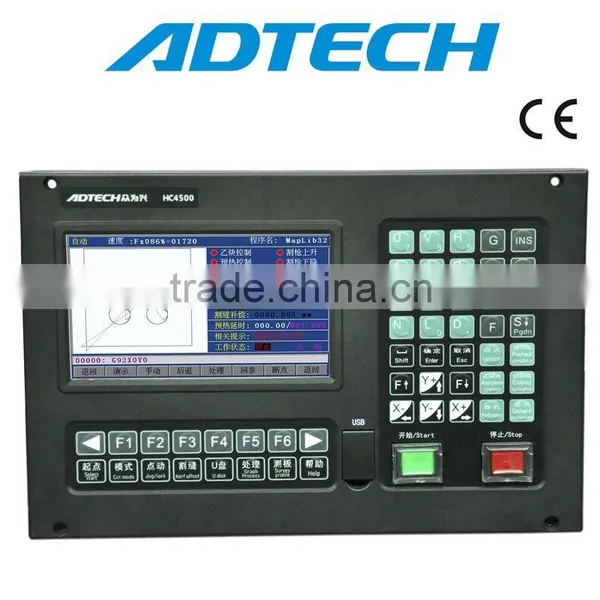

ADTECH-HC4500 CNC Plasma/Flame Cutting controller
ADT-HC4500 is a new style Flame/Plasma cutting controller based on HC4300. It adopt ARM9 processor, super large customized type of IC chip, 7 Inch color LCD display screen, high Speed /precision and stable quality of hardware, mature and completely of software.
Feature
- ARM9 high-speed Microprocessor and super large programmable FPGA
- Real time multitask control technology and hardware interpolation technology
- 7 Inch real color display screen, Friendly and easily operation interface,
- Supporting multi language display;
- All Photovoltaic isolation control, super large anti-interface ability;
- Large storage space process file: 256M, demand complicated/large program running and processing
- Plasma /flame controller can control 3 step/servo motor at the same time, which adopt doubt axis at one time or develop 3 axis according customer requests;
- Graphic library: 63 graphs, which can cutting hole or slice as choose;
- Graphic Dealing function, which are supporting edit Radom rotation, correction and mirror image function etc;
- Delay, preheating, perforating, changing nozzle, moving parts, moving parts etc process control;
- Break point recovery function
- USB, RS232 serial communication control, directly read file buy U disk
- Customized software: strong>it can apply for Plasma, Punch and engraving function within one machine, simple laser cutting etc.
Parameters
Power Request |
DC 24V 50/60Hz |
Power Dissipation |
<10W |
Work Temperature |
0°C-60°C |
Storage Temperature |
-20°C-80°C |
Work Humidity |
20%-95% |
Storage Humidity |
0%-95% |
Digital Input:
- Channel: 32, All Photovoltaic isolation
- Input Voltage: 12-24V DC
- High Level >4.5V
- Low Level <1.0V
- Isolation Voltage: 2500V DC
- Counting Input:
- Channel: Spindle ABZphase coding input, All Photovoltaic isolation
- Maximum counting frequency: 2MHz
- Input Voltage: 5-24V DC
- High Level>4.5V
- Low Level<1.0V
- Isolation voltage: 2500V DC
- Channel: 3 Axis Pulse, 3 axis direction, All photovoltaicisolation
- Maximum pulse frequency: 2MHz
- Output type: 5Vdifferential output
- Output mode: Pulse +direction or pulse + pulse
- Output Channel: 16, All photovoltaic isolation
- Output type: NPN open-collectorout put 12-24V DC, Max current 100mA.
- RS-232 Baud rate(bps):
- 1200,2400,4800,9600,19200,38400,57600,115200
Application
- CNC plasma/Flame cutting machine
- Laser cutting machine
- Plasma, punch, engraving all in one machine.
