facade cleaning system / working platform / construction gondola / suspended platform
ZLP suspended platform provide safer, easier and more efficient work platforms for your workers. They are ideal for plaster, painting, repairing, decoration, cleaning, elevator installing, loading heavy row materials to higher grounds, etc. It is also widely used in the construction works of big-size tank, bridge, dam and chimney.
Our suspended platform machinery helps improve working efficiency, and fast construction at reduced cost. Along with standard platforms we also manufacture Special Suspended Working Platforms with 90°, 45° and Circular shapes. We can also manufacture platforms as per client’s specific requirements.
Specifications
1.ZLP630 and ZLP800
2.Type:Hot Galvanized,Aluminum
3.Lifting Height:100m maximum
4.With 9 years' experience.
Technical Parameters( ZLP630,800,etc.)
Model |
ZLP1000 |
ZLP800 |
ZLP630 |
ZLP500 |
Material: steel or aluminum alloy | ||||
Rated load(kg) |
1000 |
800 |
630 |
500 |
Length of platform |
7.5m |
7.5m |
6m |
4m |
Safety lock type |
LST30 |
LST30 |
LST30 |
LST30 |
Hoist model |
LTD8.0 |
LTD8.0 |
LTD6.3 |
LTD6.3 |
20'Container(pcs) |
7 |
8 |
9 |
10 |
Counter weight(kgxpcs) |
25x44 |
25x40 |
25x36 |
25x30 |
Diameter of steel rope(mm) |
8.6 |
8.6 |
8.3 |
8.3 |
Voltage(V) |
380 |
380 |
380 |
380 |

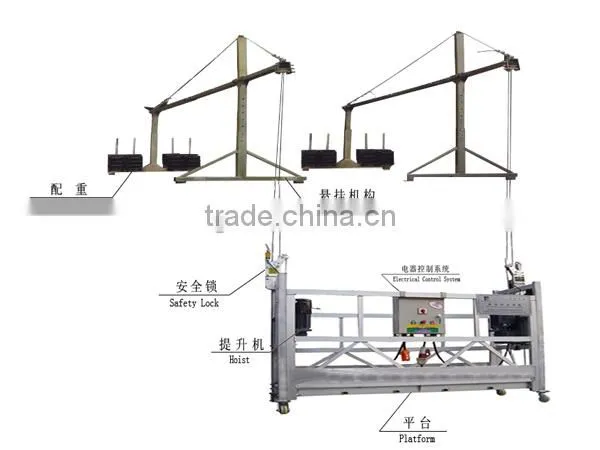

Parts contains:

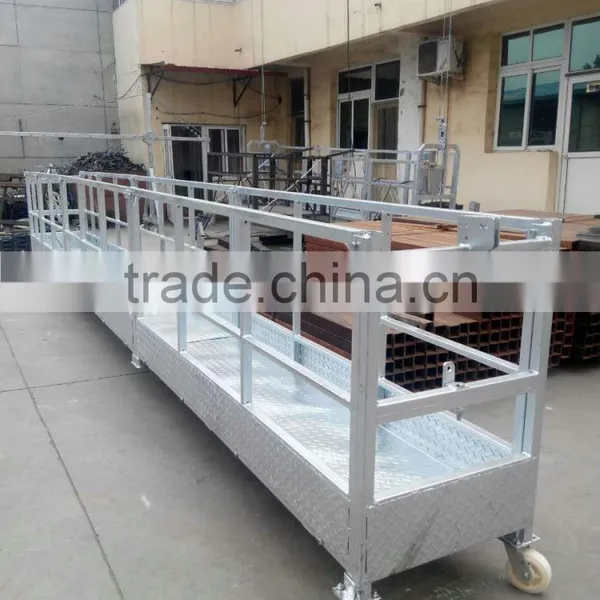

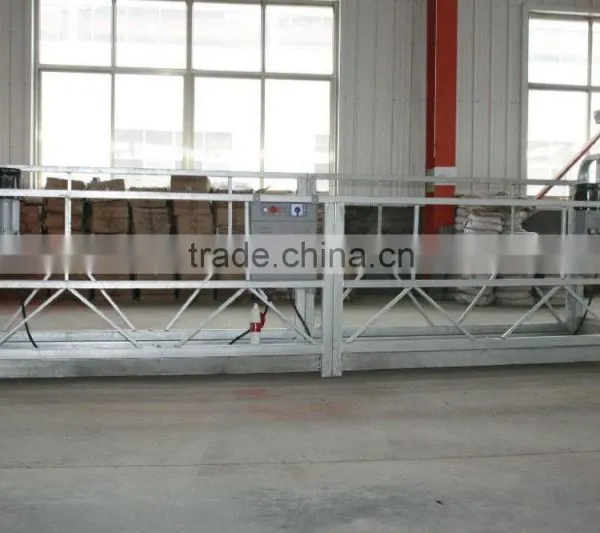

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)

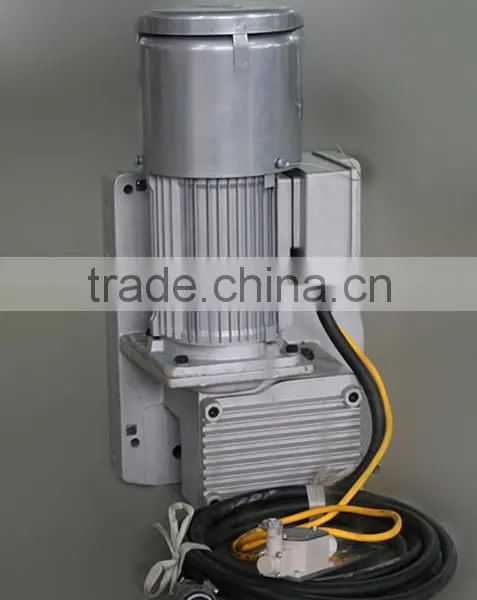

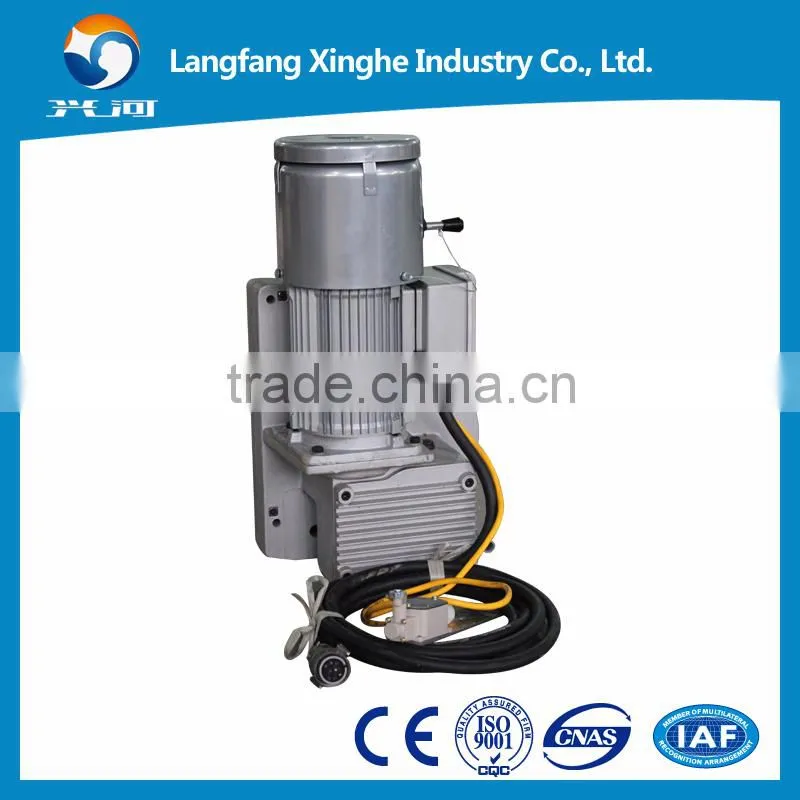

3. Electric hoists:LTD6.3 or LTD8

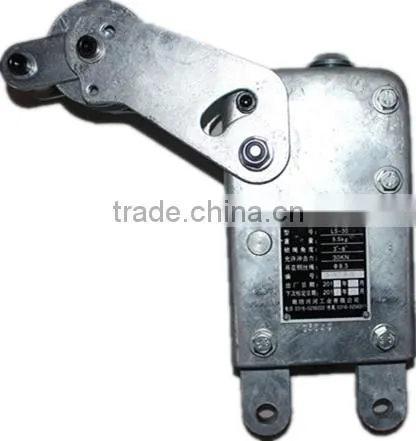

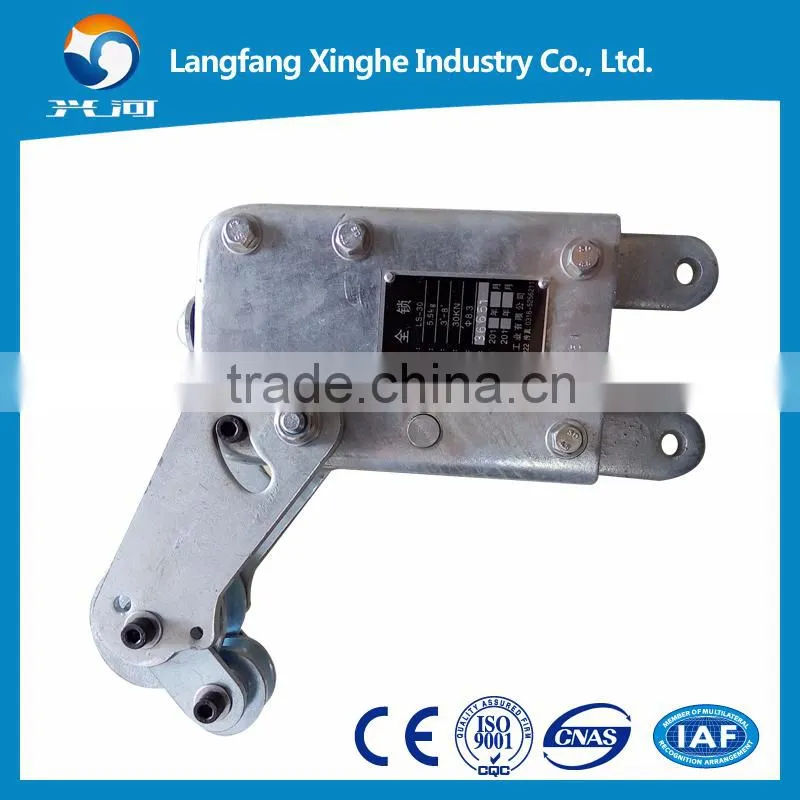

4. Safety Lock: LST30

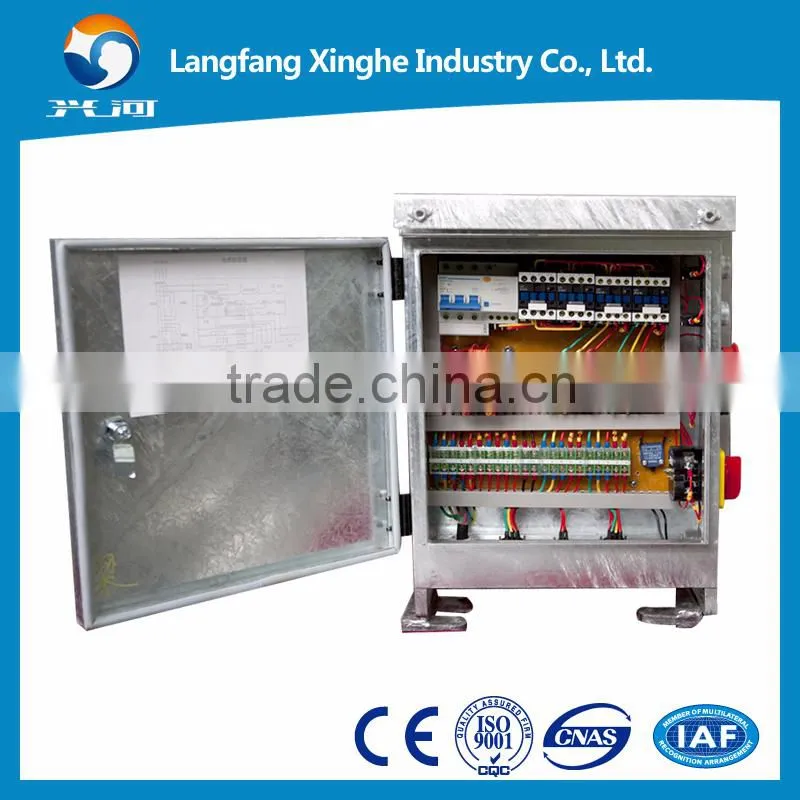

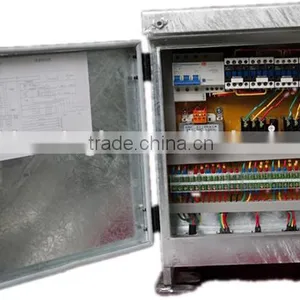

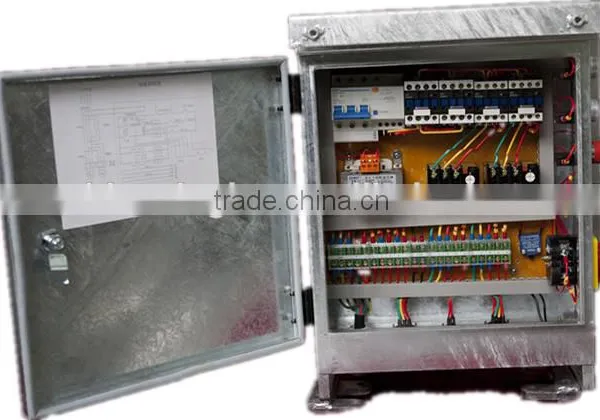

5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement , cement with steel cover & Iron counterweight
10. Spare parts
Key Points:
1. Max lifting height: 100m;
2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight
6. H.S Code: 8428909090;
7. Certification: CE & ISO;
8. We can also customize for you.
Contact Information:
Langfang Xinghe Industry Co., Ltd
Add:Xiguangzhou Village, WenanTown, LangFang, Hebei, China (Mainland)
Tel:18533637819
WhatsAPP:13833654401
Skype:liyanxia12345
Email:export001(mounse)
