Auto Darkening Welding Helmet, Welding Helmet, Helmet
US$ 11 - 35
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
WELHEL
Model Number:
L1307086
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan shanghai ningbo etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto-darkening CE Verified Classic HelmetUS$ 11 - 35MOQ: 200 Pieces -
Top Sales Popular Eagle Decals HelmetUS$ 11 - 35MOQ: 200 Pieces
-
Good Sensitivity Big Viewing Area Protective Mask for WelderUS$ 11 - 35MOQ: 200 Pieces
-
High Quality Top Sale Self-darkening Welding MaskUS$ 11 - 35MOQ: 200 Pieces
-
Beautiful Unique Colorful Welding MaskUS$ 11 - 35MOQ: 200 Pieces
Place of Origin
Hubei, China
Brand Name
WELHEL
Model Number
L1307086
Auto-Darkening
Yes
Switch Time
1/25,000S
View Area
100*67MM
Solar Powered
Yes
Cartridge Size
110*90MM, 110*90*8mm
Sensitivity
Stepless adjustment, Stepless Adjustment
Power Supply
Li-Mi & Solar Combination
Helmet Material
Nylon
Specifications
Auto darken welding helmetBig view area at 100*67mm
UV & IR protection:shade15
10-year manufacturer
ANSI/CE/ISO9001
Auto darkening welding helmet, welding helmet, helmet
Mask: WH8000 series
Filter Optional: WH900 series, WH700 series, WH500 series, WH400 series, WH100 series,
Mask material: Nylon

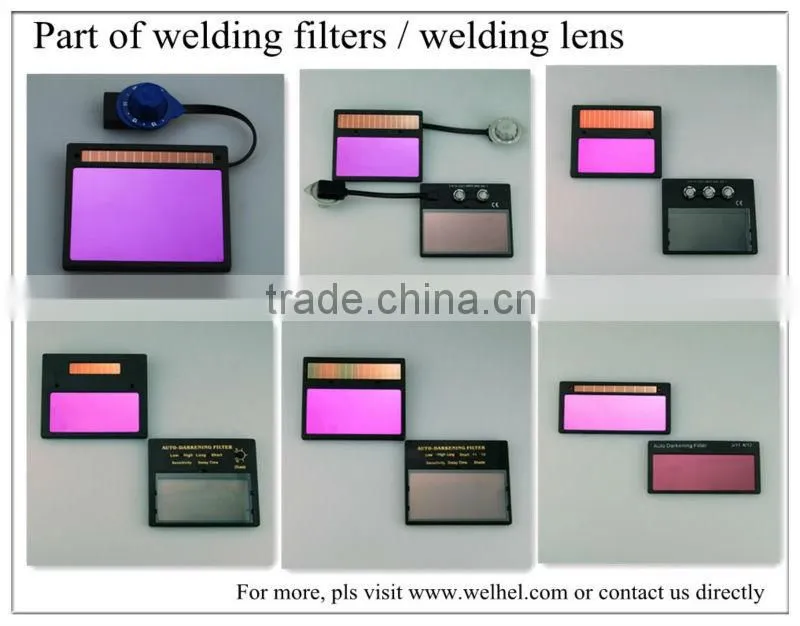

Auto Darkening Lens Specifications (technical parameters)
| AUTO DARKENING LENS SPECIFICATIONS | |||||||||||||||||||||||||
| Best | Economic Solution | ||||||||||||||||||||||||
| MODEL | WH900 Series | WH700 Series | WH500 Series | WH400 Series | Single Shade Series | ||||||||||||||||||||
| 913 | 912 | 711 | 712 | 713 | 714 | 715 | 716 | 500 | 501 | 511 | 512 | 513 | 514 | 515 | 516 | 521 | 400 | 401 | 403 | 300 | 111 | 101 | 103 | ||
| Cartridge Size (mm) | 110* 90 | 110*90 | 110*90 | 110*90 | 110*90 | 108 x 50.8 | |||||||||||||||||||
| Viewing Window Size (mm) | 100*67 | 100*49 | 92*42 | 92 *42 | 100 *49 | 98 *35 | 98* 35 | 95*31 | |||||||||||||||||
| Lens Thickness (mm) | 8 | 8 | 8 | 8 | 8 | 8 | 5 | ||||||||||||||||||
| Weight (g) | 108 | 105 | 103 | 100 | 90 | 45 | 36 | ||||||||||||||||||
| Light State | DIN4 | DIN4 | DIN4 | DIN4 | DIN3 | ||||||||||||||||||||
| Dark State | DIN9-13 | DIN9-13 | DIN9-13 | DIN5-9 / 9-13 | DIN9-13 | DIN11 | |||||||||||||||||||
| Switching time (ms) | 0.04 | 0.04 | 0.04 | 0.1 | 0.5 | ||||||||||||||||||||
| Delay time Adjustment | Inside & Stepless (0.15~0.80s) | √ | √ | √ | |||||||||||||||||||||
| Inside & Switch (Fast/Slow 0.25s/0.70s) | √ | √ | √ | ||||||||||||||||||||||
| Sensitivity Adjustment | Inside & Stepless | √ | √ | √ | |||||||||||||||||||||
| Inside & Switch (Low/High) | √ | √ | √ | ||||||||||||||||||||||
| Shade Adjustment | Outside & Stepless | √ | √ | √ | √ | √ | √ | ||||||||||||||||||
| Inside & Stepless | √ | √ | √ | √ | |||||||||||||||||||||
| Grinding | Outside | √ | √ | √ | |||||||||||||||||||||
| Inside | √ | √ | |||||||||||||||||||||||
| Power Supply | Solar power & Lithium Battery combination | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||
| Solar power & replaceable battery | √ | √ | √ | √ | √ | ||||||||||||||||||||
| Solar power & rechargeable battery | √ | ||||||||||||||||||||||||
| Water & Dust proof | √ | ||||||||||||||||||||||||
| TIG enhanced | √ | √ | √ | √ | |||||||||||||||||||||
| Warranty (years) | 2 | 2 | 2 | 2 | 2 | 1 | |||||||||||||||||||
| Certification | CE EN379 | 1/1/1/2 | 1/1/1/2 | 1/1/1/2 | 1/2/1/1 | 1/1/1/2 | 1/1/1/2 | 1/1/1/2 | 1/2/1/2 | ||||||||||||||||
| ANSI Z87.1 | √ | √ | |||||||||||||||||||||||
Functions of auto darkening welding helmet
Grinding
TIG enhanced
Water & Dust proof
Warranty (years): 2 years
Package of auto darkening welding helmet
Our factory & office
Certificate for auto darkening welding helmet
CE
EN379
ANSI Z87.1
ISO9001:2008
