Shijiazhuang Zhanbang Electromechanical Tech Co., Ltd.

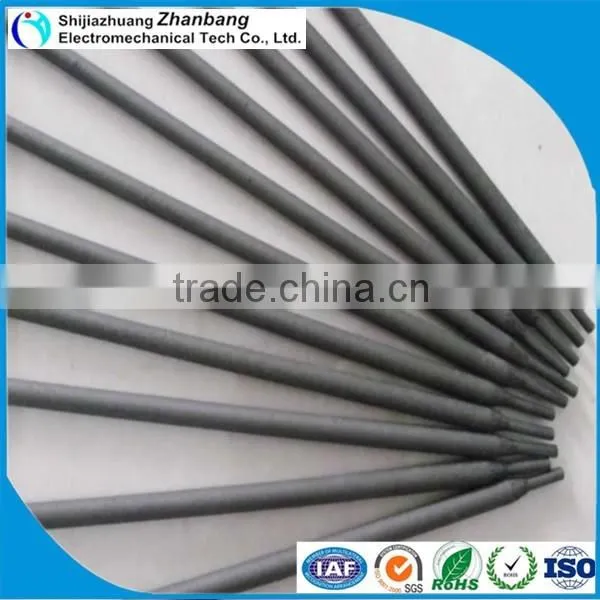

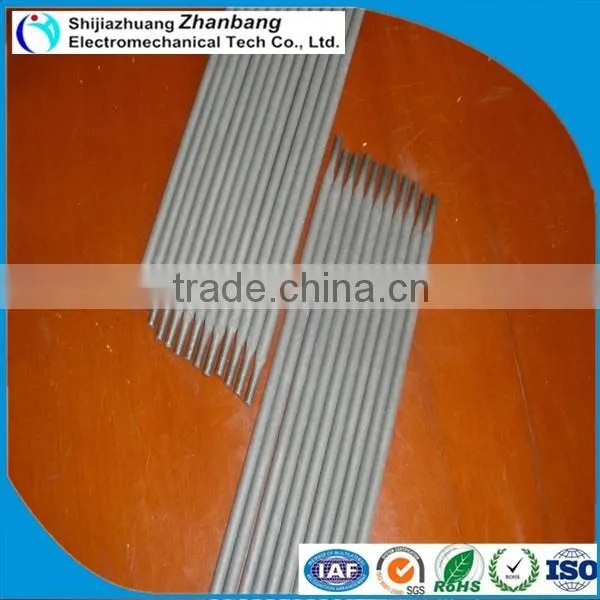

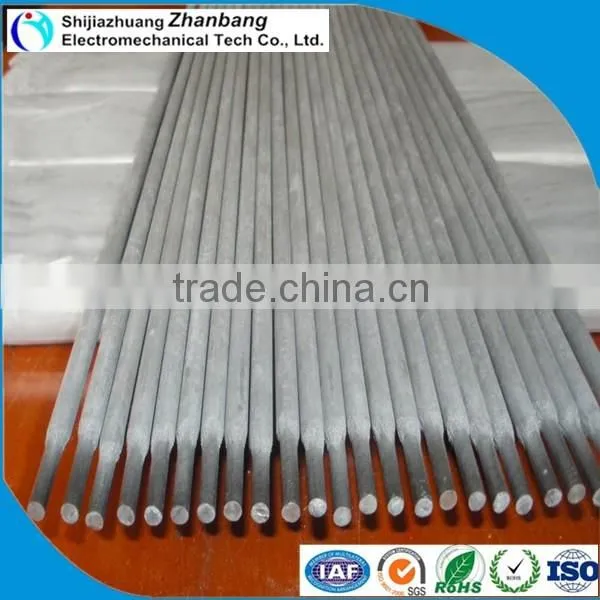

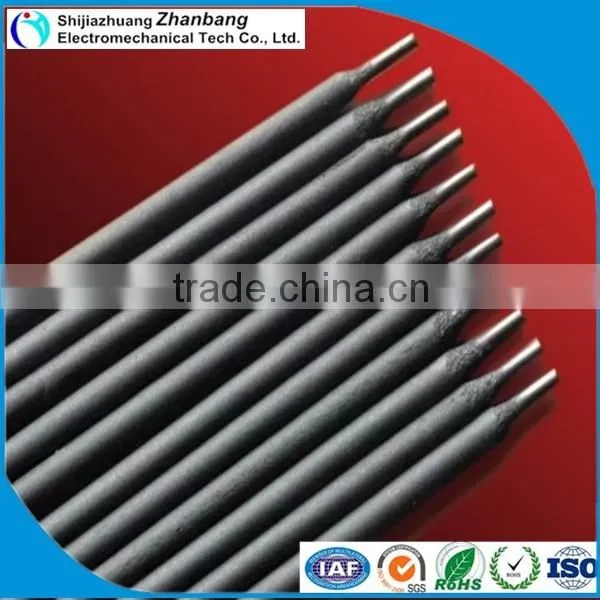

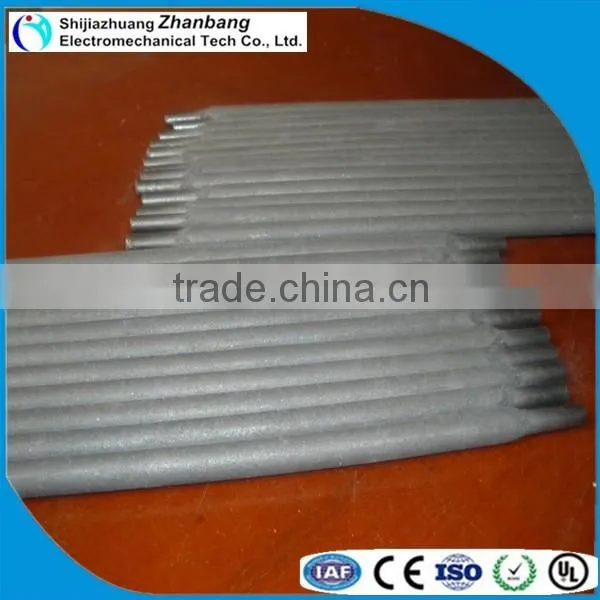

Smokeless Titanium Type Low Alloy Carbon Steel Welding Rod E6013 E7018 E6011 E6010 E7024 E7016 Mild Steel Welding Electrodes
Hot sale and free sample !!!!
We hope we can get a chance to cooperate with you.
And free sample could be supplied for your inspection.
We will deal with your problems online,time: 8:00 am.-23:00 pm.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Low Carbon Steel Welding Electrode AWS E6013 Introduction:
1. Model No.: Welding Electrode AWSE6013(J421, J38.12)
2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm
Welding Electrode AWS E6013:
1.Stable arc, small spatter, easy to clean slag
2.Used for AC or DC at all position
Welding Electrode AWS E6013 Application:
The E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.
Low Carbon Steel Welding Electrode AWS E6013 Specification:
Details Specification for Welding Electrode AWS E6013(J421, J38.12)
Chemical Compossition of Deposited Metal (%)
|
C |
Mn |
Si |
S |
P |
Guaranteed value |
≤0.12 |
0.3~0.6 |
≤0.35 |
≤0.035 |
≤0.040 |
Typical value |
0.07 |
0.4 |
0.25 |
0.019 |
0.025 |
Welding Electrode AWS E6013:
Sizes, Length & Recommended Current (AC/DC)
Diameter (mm) |
φ2.0 |
φ2.5 |
φ3.2 |
φ4.0 |
φ5.0 |
Length (mm) |
300 |
300 |
350 |
400 |
400 |
Current (A) |
40~70 |
50~90 |
90~130 |
130~210 |
170~230 |
Welding Electrode AWS E6013:
Mechanical Properties of Deposited Metal
|
Rm (Mpa) |
A(%) |
KV2(J) |
KV2(J) |
Guaranteed value |
σb≥420 |
δ5 ≥ 17 |
(normal temperature) |
-(0°C) |
Typical value |
460~540 |
18~26 |
50-80 |
≥ 47 |
Welding Electrode AWS E6013 Packaging Details:
(1) Size (2)Packing (Net weight) (3)Measurement
2.5*300mm 2.5kgs/box, 8boxes/carton=20kgs 0.009CMB/Carton, 2.2Tons/CBM
3.2*350mm 5.0kgs/box, 4boxes/carton=20kgs 0.009CMB/Carton, 2.2Tons/CBM
4.0*400mm 5.0kgs/box, 4boxes/carton=20kgs 0.009CMB/Carton, 2.2Tons/CBM
5.0*400mm 5.0kgs/box, 4boxes/carton=20kgs 0.009CMB/Carton, 2.2Tons/CBM
Show our company products
1. If samples available?
Answer: We are happy to provide free samples to you. But you need to pay for the express charges for the first cooperation. We can return it as soon as you start an order.
2. If OEM available?
Answer: Yes, as we usually do.
3. What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
4. What are your company normal export terms?
Answer: We normally export with CFR, CIF and FOB.
5. How many days it will take you to produce mass production for us?
Answer: Normally it will take about 7-15 days. It also depends on the quantity and production seasons.
