Stainless Steel Storage tanks
1. This kind of storage tanks are widely used for storage water,storage oil,storage liquid,etc.
2. Suitable for such fields as dairy, juice,beverage, medicine chemical or bio-engineering project, etc .
3. We can manufacturing according your special requirements.

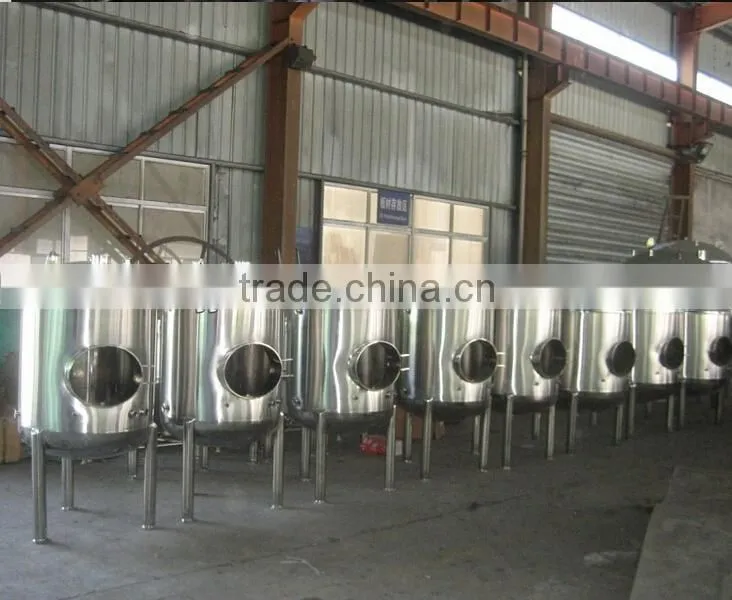

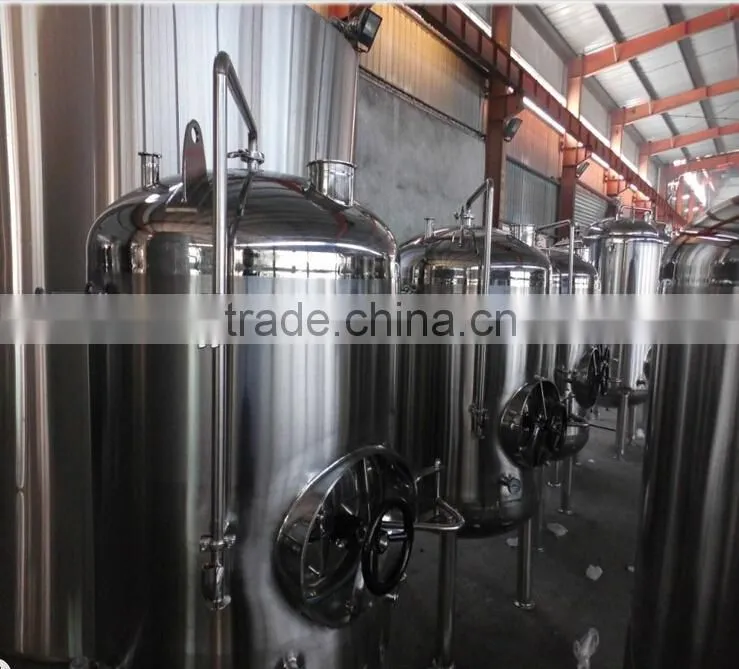

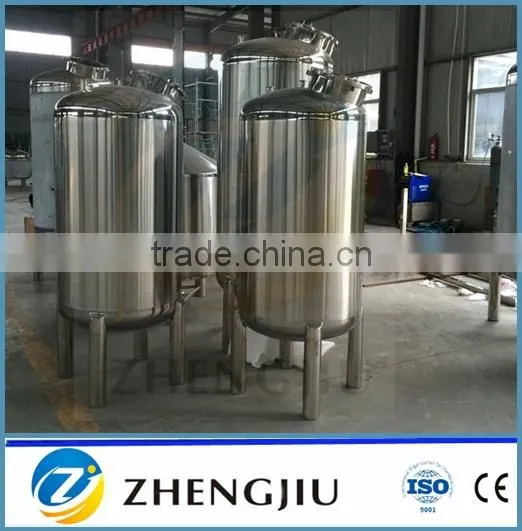

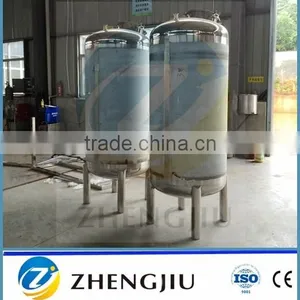

PRODUCT NAME: ZJ-800L Sanitary Stainless Steel Storage Tank
Applications:
It’s widely used in Wineries, Wine brewery, Wine village, Wine packaging factory, wine storage warehouse, etc.
Specifications:
Material |
To be made of AISI 304 stainless steel or AISI 316 stainless steel according to customer specific requirements |
AISI 316 stainless steel floating lid with vinyl tube seal | |
Product description |
Flat bottom tanks with a slight slope for easy rinsing (versatile tanks suitable for red and white, fermentation and storage) |
Cconical bottom for complete emptying and easiest rinsing | |
"Red Ferment" Bottom for more easily emptying skins, complete emptying, easy rinsing | |
Micro-spiral finish on the outside | |
Mirror finish on the inside | |

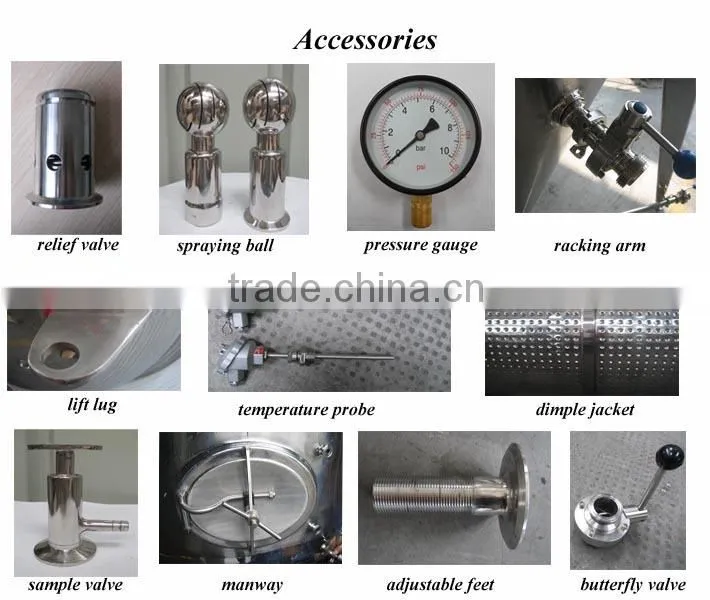

Pressure gauge with pump | |
2-way air valve on lid | |

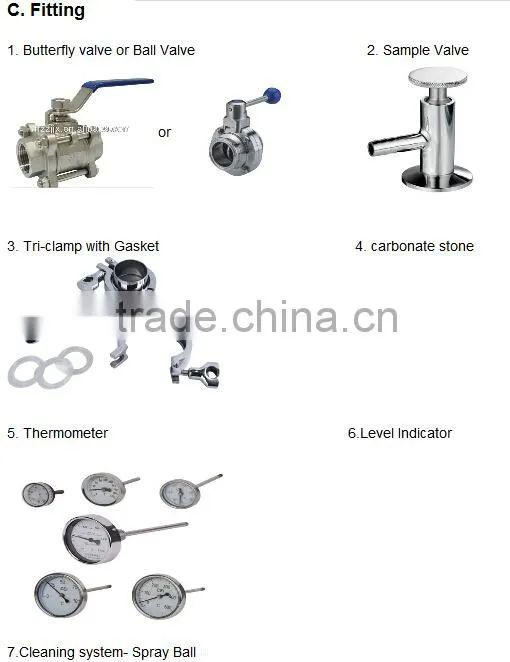

One bottom tri-clamp butterfly or ball valve for draining | |
One side mounted tri-clamp butterfly or ball valve for racking | |
Also available with flat bottom, one valve and no legs |
1 - When Delivered by LCL (Less Container Loading), The tank will be covered by Pearl Wool, then Packed in Wooden case !
2 - When Loaded in Whole Container, The tank will be covered by Pearl Wool, Lay down & fixed on a Iron frame, finally the whole tank will be fixed in the container !
Service:

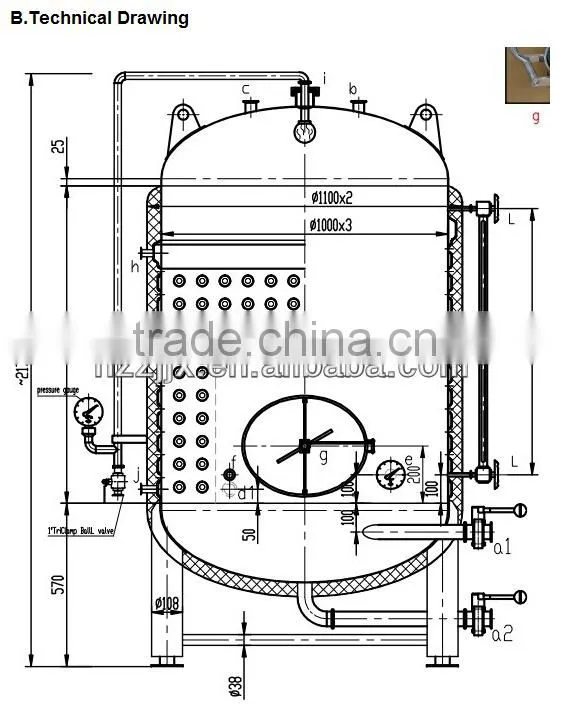

1) we will supply and confirm you with drawing before manufacturing.
2) we manufacture the equipment according the drawings.
3) we will free to sending the fittings which has broken at accident during two years.
