MMA / TIG Welder (with Pulse) (Air / Water Cooled)
Descriptions:
The pulsed MMA/TIG welder is another series of invertr welding machine of ours. What distiguishes it from the professional series is the variable high frequency pulse. The pulse can adjust the arc focus to be fit for different applications. Thereby, heat input is less, seaming is more controllable, distortion is less likely to occur, and welding speed is higher.
The series of industrial welder is suitable for welding of carbon steel, stainless steel, alloy steel, copper, titanium and other material. It is widely used in mould maintenance, petroleum, electric power construction and pipeline installations.
Features:
1. The Pulse function furthers the activity of weld pool. It assists in forming beautiful scalelike welding seams.
2. The MMA TIG welder is equipped with a digital welding preset meter. The meter can freeze the display and has a built-in variable pulse. The control panel shows the count of welding. It is user-friendly and easy to understand.
3. PWM control achieves a constant current effect, and therefore enables accurate current control for stable and aesthetical welding.
4. The advanced inverter technology features high efficiency and low no-load loss. The high-frequency arc starting features low failure rate.
5. The built-in automatic fan cooling system can effectively reduce power consumption and prevent dust from entering the MMA/TIG welder.
6. The MMA TIG welder can weld without staining workpieces. The seaming is consistent and beautiful in appearance.
7. This series not only has sound structure, but also has features of professional TIG welding machine. It can perform some difficult welding operations.
Specifications:
Model |
315A |
400A |
500A |
630A |
Input voltage(V) |
3ph, 380V +-15%, 50/60Hz |
3ph, 380V +-15%, 50/60Hz |
3ph, 380V +-15%, 50/60Hz |
3ph, 380V +-15%, 50/60Hz |
Rated power capacity(KVA) |
TIG: 8 MMA: 12 |
TIG:12 MMA: 16.5 |
TIG: 17.5 MMA: 23.5 |
TIG: 25 MMA: 31 |
Rated input current(A) |
TIG: 16.5 MMA: 22.5 |
TIG:23 MMA: 28.5 |
TIG: 28.5 MMA: 36 |
TIG: 41 MMA: 50 |
Output current range(A) |
10-315 |
10-400 |
10-500 |
10-630 |
No-load voltage(V) |
75 |
75 |
80 |
80 |
Down slop time(S) |
0-10 |
0-10 |
0-10 |
0-10 |
Pre-flow time(S) |
0.1-1 |
0.1-1 |
0.1-1 |
0.1-1 |
Post-flow time(S) |
0.1-10 |
0.1-10 |
0.1-10 |
0.1-10 |
Cooling |
AF |
AF |
AF |
AF |
Efficiency(%) |
84 |
84 |
84 |
84 |
Rated duty cyle(%)(40degree) |
TIG: 100% 210A MMA: 100% 200A |
TIG: 100% 360A MMA: 100% 320A |
TIG: 100% 450A MMA: 100% 400A |
TIG: 100% 550A MMA: 100% 500A |
Protection class |
IP23S |
IP23S |
IP23S |
IP23S |
Insulation class |
F |
F |
F |
F |
Weight(kg) |
36 |
38 |
55 |
62 |
Dimensions(mm) |
600*340*600 |
600*340*600 |
650*340*700 |
650*350*700 |
Standard Accessories:
(1). 2.4*150 Tungsten(1PC)

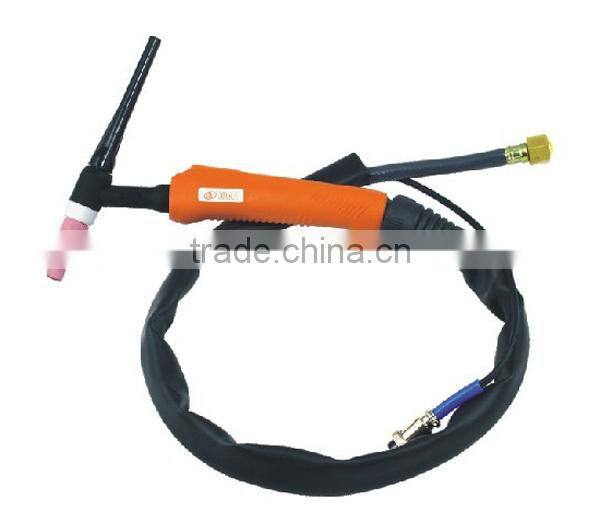

(2). TIG torch
(3). Water cooling connector(1PC)
(3). Fast cooling device
(4). Earth clamp with cable
(5). Spanner(1PC)
(6). Electrode holder
