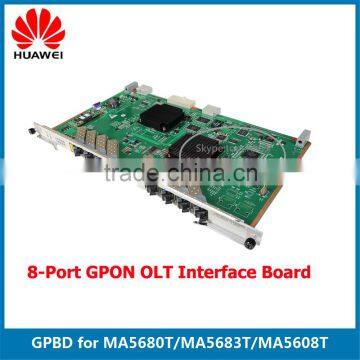

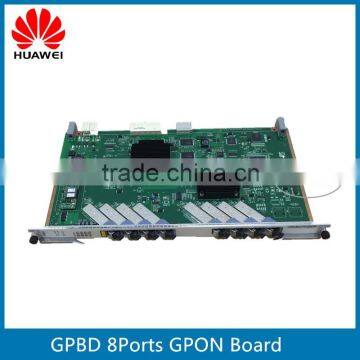

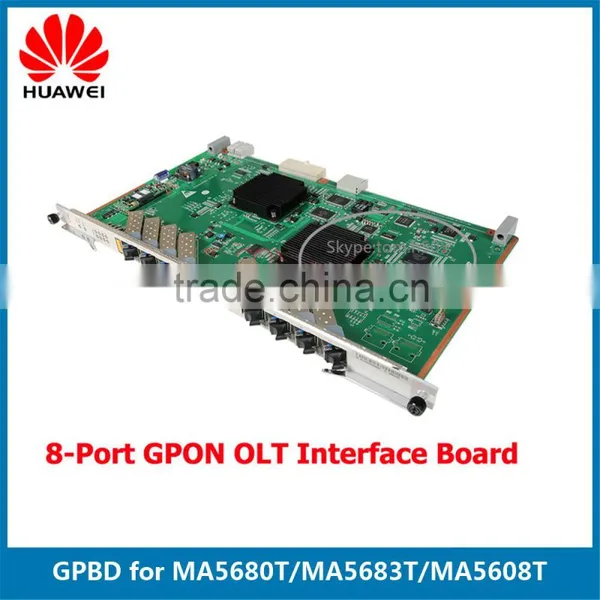

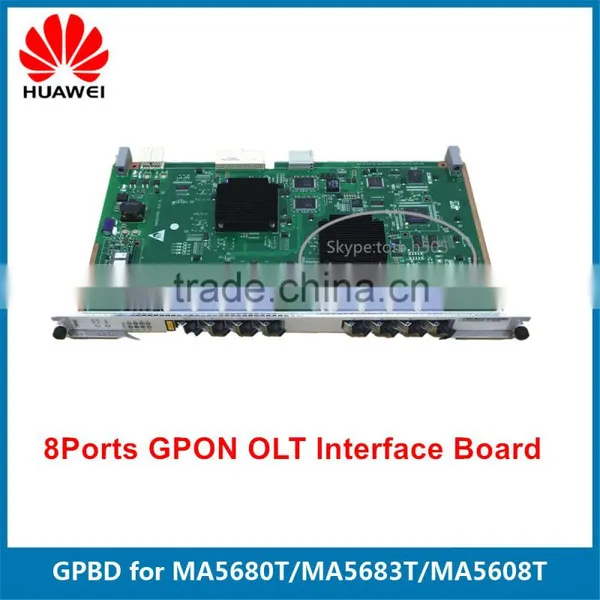

HUAWEI GPBD 8 ports GPON OLT Interface Board for MA5608T MA5680T MA5683T MA5600T

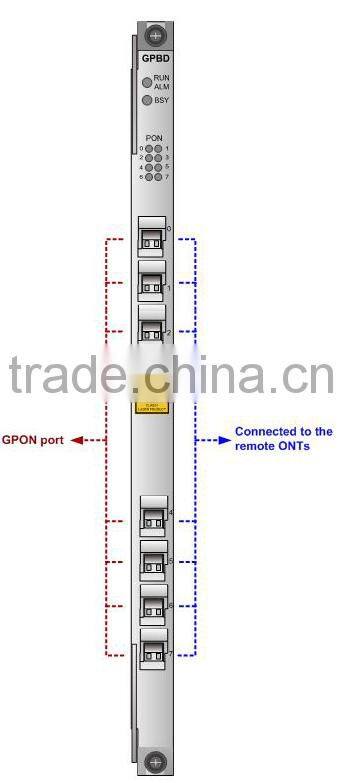

The H802GPBD board is an 8-port GPON OLT Interface Board. It works together with the optical network terminal (ONT) to provide GPON access services.
Note: the latest one is H807GPBD, we could also provide the old version of GPBD.
|

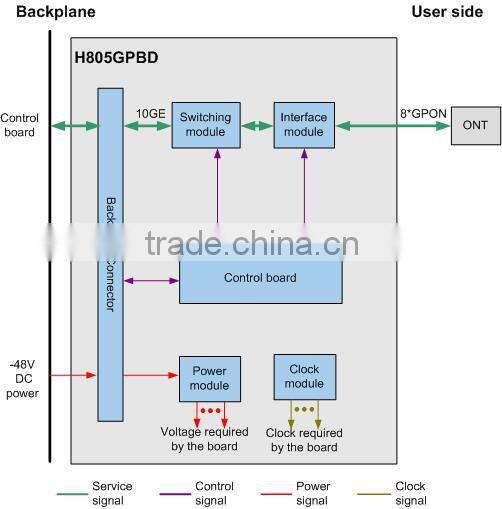

Working principle of the H805GPBD board
The basic working principle of the H805GPBD board is as follows:
|
| Specification | H802GPBD | H805GPBD |
| Port quantity | 8 | 8 |
| MAX Split ratio (Class B+) | 1: 64 | 1: 64 |
| MAX Split ratio (Class C+/Class C++) | 1: 128 | 1: 128 |
| ONU-based shaping | No | Yes |
| Optical performance monitor | Yes | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | Yes | Yes |
| ONU-based rate limitation | Yes | Yes |
| CAR group | Yes | Yes |
| Temperature query and high temperature alarm | Yes | Yes |
| Automatic power shutdown in case of a high temperature | Yes | Yes |
| Maximum differential fibre distance (km) | 20 | 20 |
| Maximum Number of Service Flows Supported by the Board | 8184 | 8184 |
| Maximum Number of MAC address Supported by the Board | 32768 | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238784 | 1238784 |
| Number of T-CONT supported by each GPON port | 1024 | 1024 |
| Board supporting downstream FEC | Yes | Yes |
| Board supporting upstream FEC | Yes | Yes |
| Rogue ONT detection | Yes | Yes |
| Number of ONUs supported by a GPON port | 128 | 128 |
| Number of GEM ports supported by each board | 8192 | 8192 |
| Number of GEM ports supported by each GPON port | 3872 | 3872 |
| Number of service ports supported by each GEM port | 8 | 8184 |
| Power budget supported by a GPON port |
Class B+ (28.5 dB, mostly used), Class C+ (32 dB long reach transmission) Class C++: 35 dB |
|
| Minimum bandwidth supported by a T-CONT |
1 Mbit/s (in the minimum delay mode) 128 kbit/s (in the maximum bandwidth usage mode) |
|
|
|
|
|
MA5680T Kit 2 SCUN 2 GICF (X2CS 10G for Optioin) 2 PRTE 1 GPBD (EPBD EPFD GPFD ) 2 Power Cable 1 Earth Cable | ||
|
|
|
|
MA5683T Kit 2 SCUN 2 GICF (X2CS 10G for Optioin) 2 PRTE 1 GPBD (EPBD EPFD GPFD ) 2 Power Cable 1 Earth Cable | ||
|
|
|
|
MA5608T configuration:

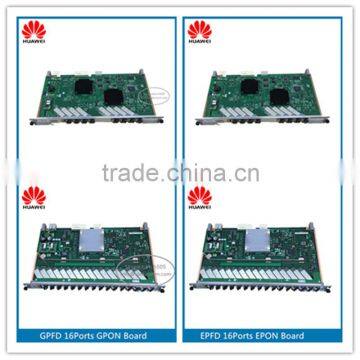

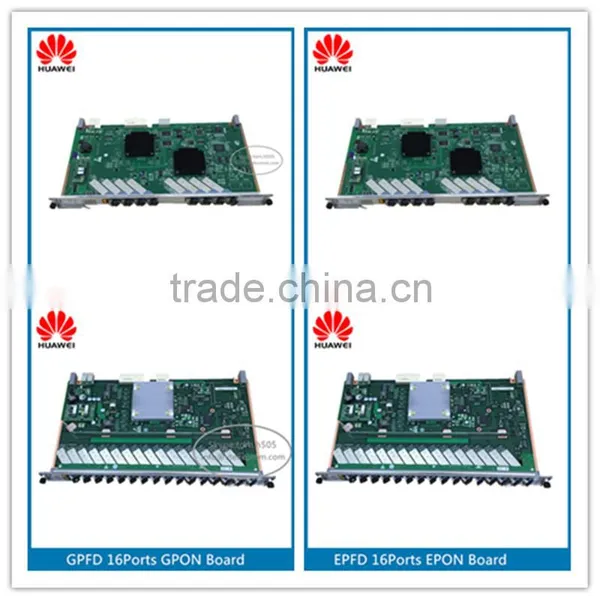

2 MCUD (MCUD1 10G Uplink for Option) 1 MPWC Dual DC power board (MPWD AC & DC Power for Option) 1 GPBD (EPBD EPFD GPFD for Option ) Acessories: Power cable, Earth cable, Patchcords, Banding ribbon, Screws etc
| ||
EMERSON 220V To 48V 30A Power Converter EPS30-4815AF for Below OLTC300 C320 C220 MA5600T MA560T MA5683T MA5608T AN5516-01 AN5516-06 AN5516-04 OLT DC Power supply | ||
