China Products Medium Copper Wire Making Equipment

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Inlet Diameter	2.2mm-1.6mm
Outlet Diameter	1.0mm-0.5mm	Place of Origin	Jiangsu, China
Brand Name	Xiangle	Model Number	CL-15D
Voltage	380V	Power(W)	7.5KW
Dimension(LWH)	150012001800	Weight	1250Kg
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

China Products Medium Copper Wire Making Equipment

Product Description

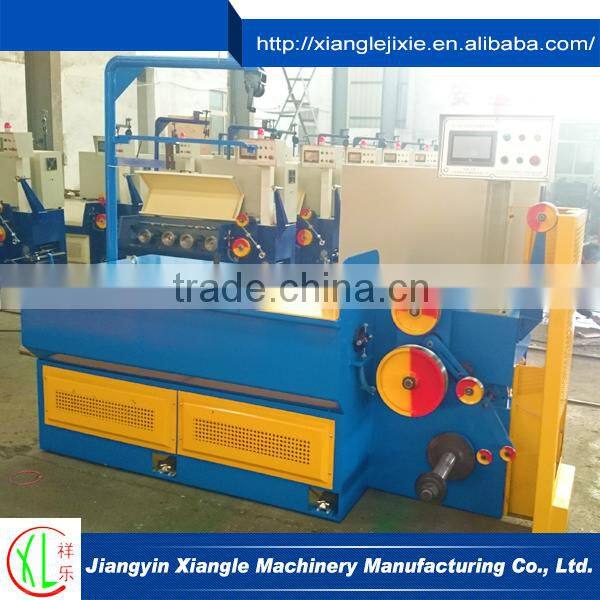

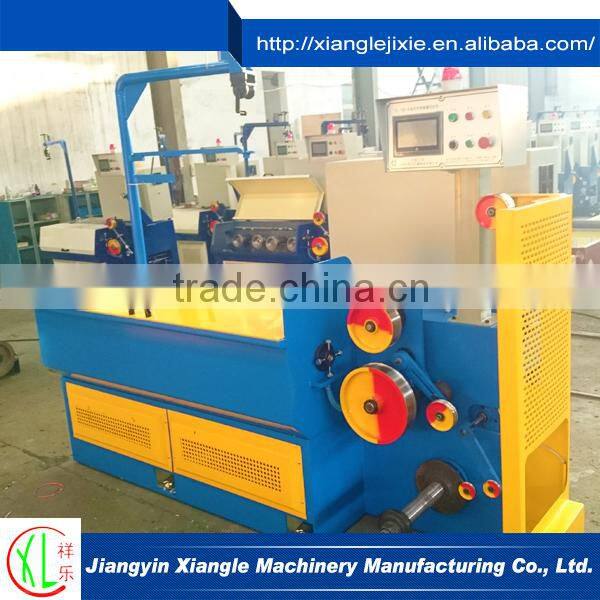

Equipment Pictures

Technical Parameters

Inlet	2.2mm-1.6mm
Outlet	1.0mm-0.5mm
Max Modules	15
Mechanical Reduction	15.60%
Drawing Method	Horizontal Four-step Pulleys Type
Max Line Speed	200m/min
Control System	PLC Dual Frequency Conversion
Drawing Capstan	Mold Steel Vacuum Annealing Treatment
Main Motor's Power	11KW
Take-up Machine's Power	1.5KW
Driving Method	Synchronizing Sheel,Synchronizing Belt, Flat Belt
Drawing Lubrication Method	Modules, Step Pulley By Full Immersion
Braking Method	Electronmagnetic Brake

Product Advantages

1. Low cost;

2. Energy efficiency;

3. Stable and reliable performance;

4. Cleaner Production.

The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel

equipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,

Vietnamese, India and other countries.

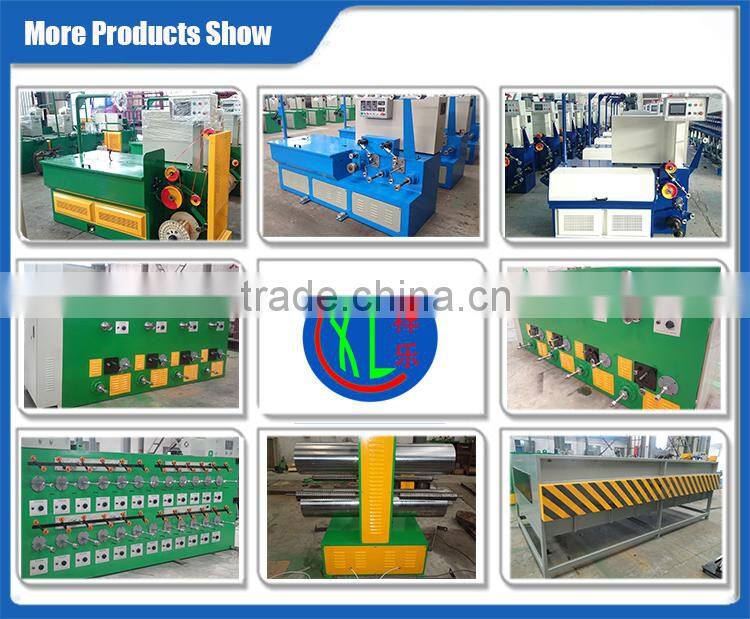

More products
