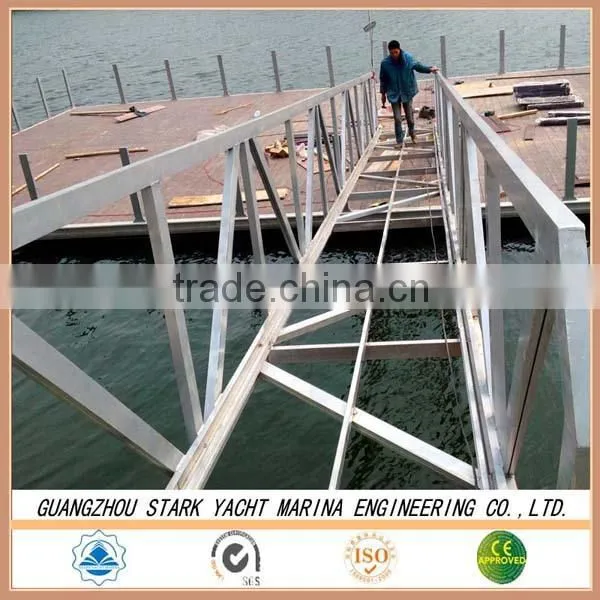

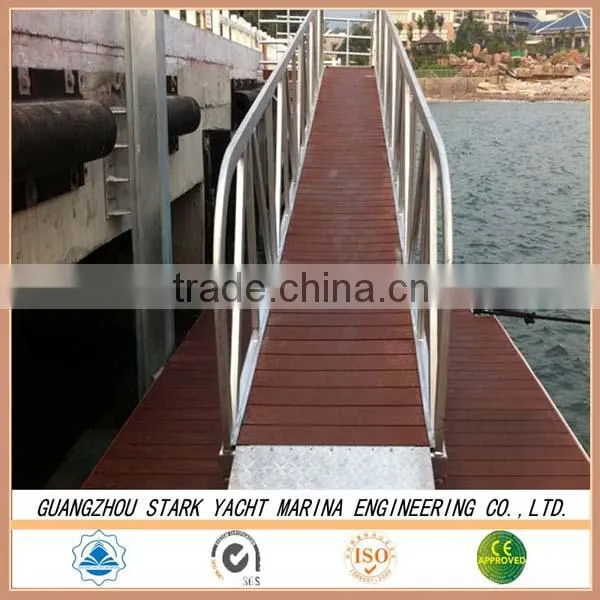

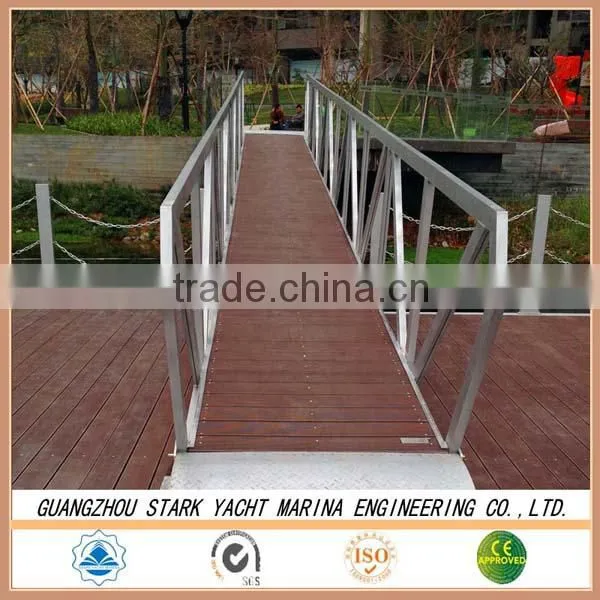

Marina gangway for floating dock description:
1.Compose: gangway is consisted of aluminum alloy frame, handrails, decking, rolls,ect
2.Decking:24mm thickness board with grooved anti-slippery surface fixed by 316L stainless bolts and screws. The material can be WPC or other imported woods.
3.The main advantages are elegant,long life span,a shortened installation time and much lower maintenance cost.
4.Strong Loading capacibility,safe and stable,environmentally friendly,UV resistant.
5.The fexibility design make it can adjust to the water level change: the gangway is with wheels, so that it can adjust the changing water level.
6. Connection on the quay: Rotatable hot dip galvanized steel platform fixed by concrete expansion screws.
7. Connection the pontoon: Rolling system composed of rubber rollers and flap cover to ensure continuous walkway without steps
Size |
Length |
5M/10M/15M/Customized |
Width |
1.5M/1.65M/2M/Customized |
|
Weight |
45KG/ Square Meter |
|
Load |
50-300KG/ Square Meter |
|
Freeboard |
350-750MM |
|
Frame |
Aluminum alloy frame |
|
Decking Material |
WPC decking polo decking, hardwood decking |
|
Decking Color |
Different color for your optioned |
|
Handrails |
Aluminum alloy handrails |
|
Bolts and Screws |
Stainless Steel |
|
Life Span |
More than 30 years |
|
The difference between steel gangway and aluminum gangway
1.Galvanized Steel gangway is heavy than aluminum alloy gangway, which makes aluminum alloy gangway more easy for installation and help to reduce the stress of the gangway platform.
2. Galvanized Steel gangway is a little cheaper than aluminum alloy gangway.
If you have any questions, pls feel free to contact us any time!
