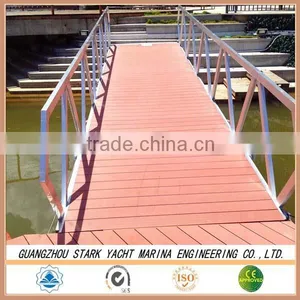

Marine aluminium gangway ladder with handrail

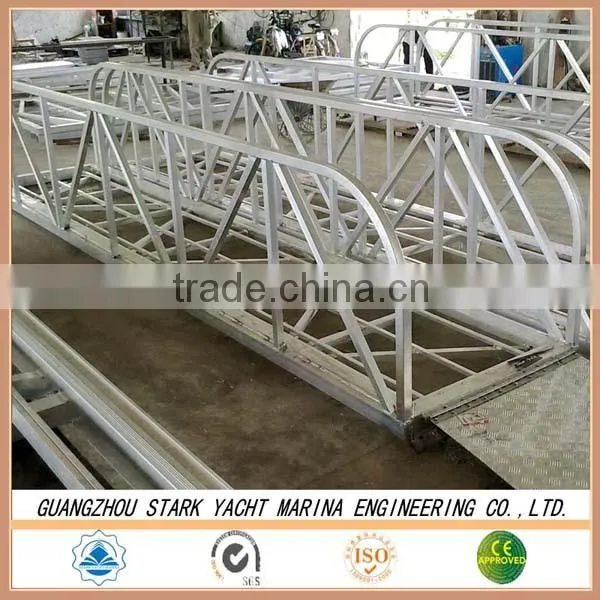

1.Compose: gangway is consisted of aluminum alloy frame, handrails, decking, rolls,ect

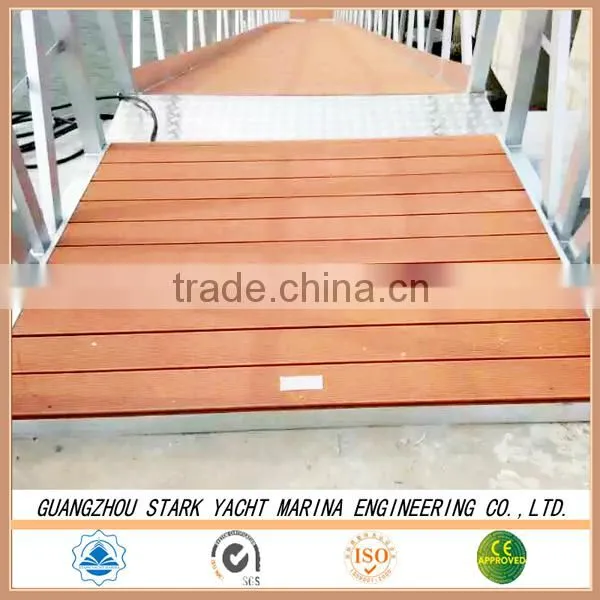

2.Decking:24mm thickness board with grooved anti-slippery surface fixed by 316L stainless bolts and screws. The material can be WPC or other imported woods.
3.The main advantages are elegant,long life span,shortened installation time much lower maintenance cost.
4.Strong Loading capacibility,safe and stable,environmentally friendly,UV resistant.
5.The fexibility design make it can adjust to the water level change: the gangway is with wheels, so that it can
adjust the changing water level.
6. Connection on the quay: Rotatable hot dip galvanized steel platform fixed by concrete expansion screws.
7. Connection the pontoon: Rolling system composed of rubber rollers and flap cover to ensure continuous
walkway without steps
Marine gangway main features:
Size |
Length |
5M/10M/15M/Customized |
Width |
1.5M/1.65M/2M/Customized |
|
Weight |
45KG/ Square Meter |
|
Load |
50-300KG/ Square Meter |
|
Freeboard |
350-750MM |
|
Frame |
Aluminum alloy frame |
|
Decking Material |
WPC decking polo decking, hardwood decking |
|
Decking Color |
Different color for your optioned |
|
Handrails |
Aluminum alloy handrails |
|
Bolts and Screws |
Stainless Steel |
|
Life Span |
More than 30 years |
|
