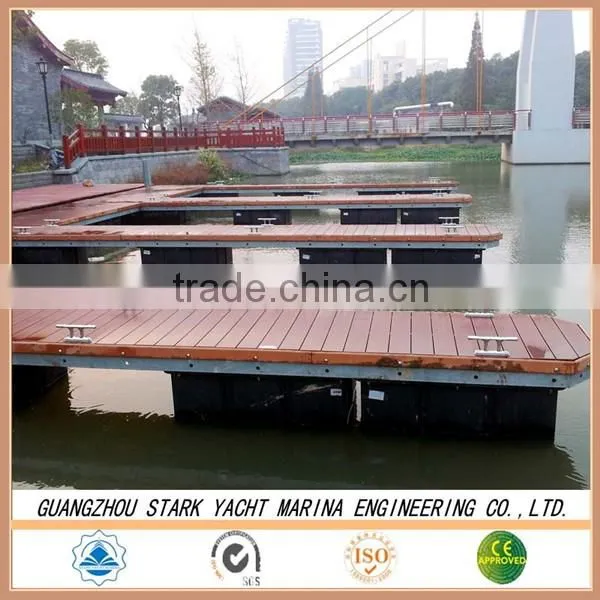

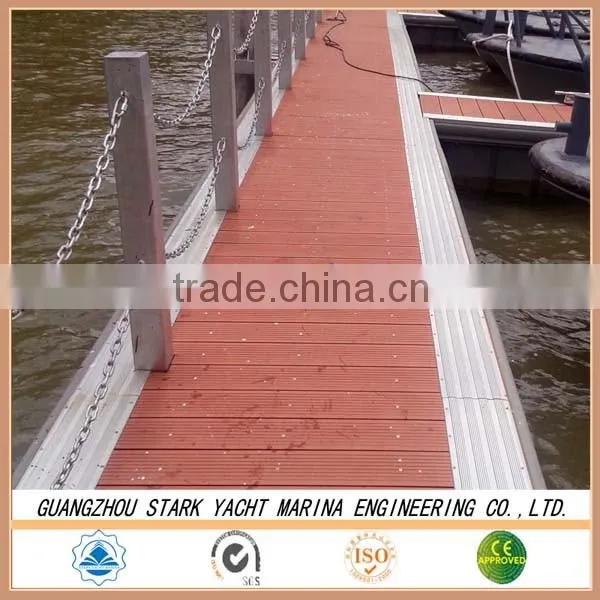

Floating pontoon bridge for sale
Floating pontoon dock specifications
Galvanized Steel Floating Dock Information | ||||
Weight: |
45kg/square meter |
|||
Load: |
50-300kg/square meter |
|||
Freeboard: |
350-750 mm |
|||
Lifespan: |
30 years (should be maintined regularly) |
|||
Environmental: |
Recyclable, protect environmental requirements |
|||
Frame: |
Hot Dip Galvanized Steel |
|||
Floats: |
HDPE floats / concrete floats |
|||
Decking: |
Antisepsis pine wood / WPC / Hardwood |
|||
Galvanized Steel Floating Dock Technical parameter | ||||
SPECIFICATION(MM) |
FREEBOARD(MM) |
CAPACITY(N/M) |
WARRANTY |
|
2000*12000 |
500-550 |
1200N-1800N |
10 YEARS |
|
2500*12000 |
500-550 |
1500N-2500N |
10 YEARS |
|
3000*12000 |
500-650 |
1500N-2500N |
10 YEARS |
|
2500*12000 |
500-650 |
1500N-2500N |
10 YEARS |
|
4000*12000 |
500-650 |
1500N-2500N |
10 YEARS |
|
Floating pontoon dock accessories
1.Structure:Galvanized steel frame
2.Decking:WPC, polo wood,pine wood, or other hardwoods for your option. Different is available
3.Floats:LLDPE Floats,Concrete floats
4.Fix:piling
5.Pile Cap:LLDPE Pile Cap
6.Power Pedestal: aluminum alloy,stainless steel,polyethylene
7.Dock Bumper:WPC bumper,rubber bumper
8.Cleat:stainless steel 316 or 316L,5 tons,10 tons
Floating pontoon dock features
Galvanized Steel Floating Dock Features
1.Hot dip Galvanized Steel frame floating dock, stable and elegant.
2.LLDPE floats or concrete floats with EPS foam, density at least 15kg/m3.
3.WPC decking or other imported decking,fixed by stainless steel 316L screw and bolts.
4.With WPC or rubber bumper to protect the dock.
5.Easy and quick assembly,environmentally friendly,sturdy and safe.
6.Anti-wave and long life expectancy.
Floating pontoon dock installation
There are 4 steps to install a hot dip galvanized steel floating dock.
Step 1. Installation in factory, assembling and taking detailed pictures & video guidance.
Step 2. Loading components, depends on the quantity to load before assembled or after assembled.
Step 3. Installation will be proceeded by the local construction teams.
Step 4. Construction teams follow the guidance we sent to install, or we send our engineer to guide the teams.
We can plan, design, produce and install galvanized steel floating dock / bridge / house of all scales, if you have any idea you can inform us and we will design for you. Please don't hesitate to contact us if you want more projects, information, design or something else. We are looking forward to your enquiry.
Floating pontoon dock fixed way:

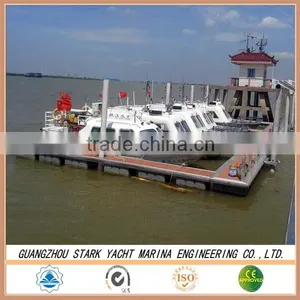

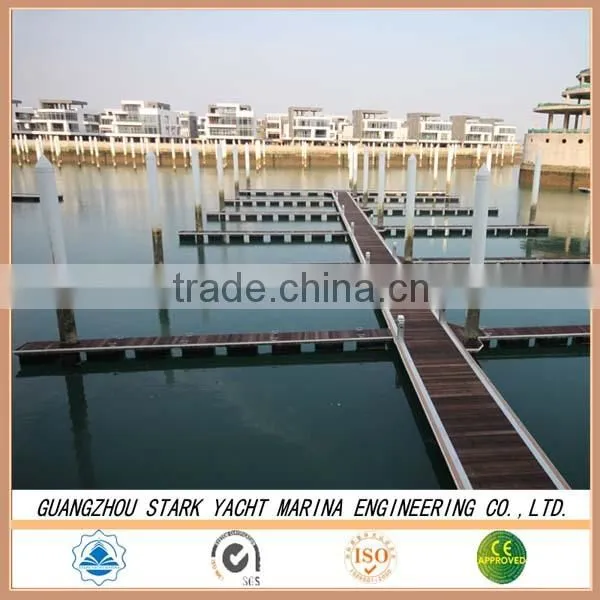

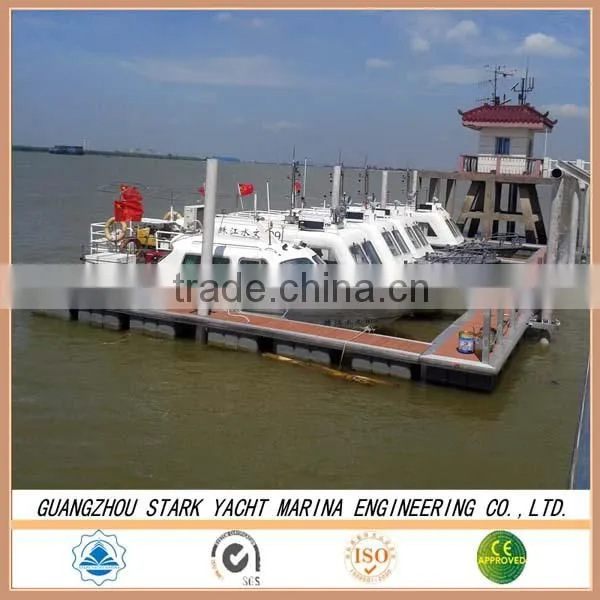

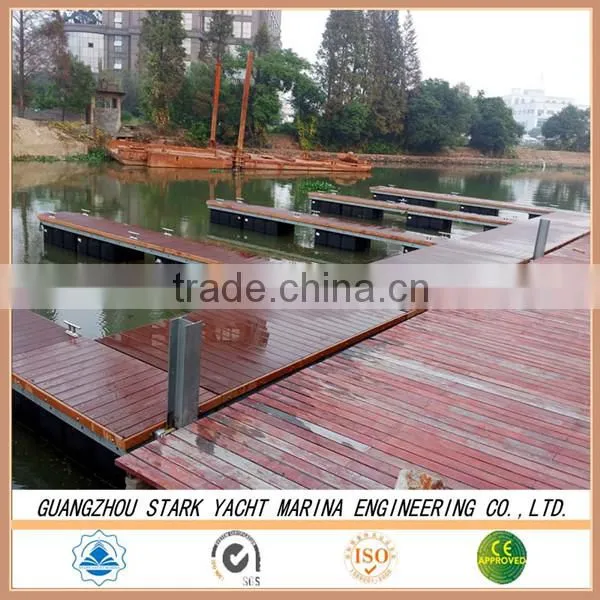

Floating pontoon dock project cases and clients
We can plan, design, produce and install aluminum alloy floating dock / bridge / house of all scales, if you have any idea you can inform us and we will design for you. Please don't hesitate to contact us if you want more projects, information, design or something else. We are looking forward to your enquiry.
