Product Details
| Model Number: | SVC-HDC08 | Type: | Digital Camera | Style: | Hidden Camera |
| Sensor: | CMOS | Technology: | Other | Special Features: | Other |
Product Description
HD Color Video Camera (Pan/Tilt/Wide)
Model No: SVC-HDC08
Fixed Lens, HDMI, HD-SDI interface
2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 70 degree Wide view angle Lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images. Support HDMI,HD-SDI Interface which is easy to installation and transfer high-quality video streaming.
Features:
Performance:

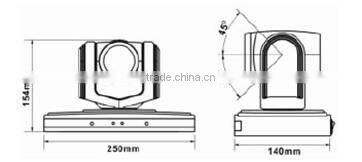

Dimension:
{ L 124mm x W 120mm x H145mm { 220x175x220mm (Package) { N. Weight: 1.4kgs { G. Weight: 1.7kgs
|
Installation: |
{ Desktop { Ceiling mount { Standard Tripod accessory
|
{ Private Tooling design High Definition PTZ camera { Fast and smooth video handling { Work & Standby LED indicator { Auto/Manual focus/brightness/WB { RS-232C/VISCA Protocol { Lens/Dome OSD menu { Boundary scanning { HDMI,HD-SDI Video output |
{ 1/2.8" CMOS 2.0 Mega Pixel 4.0 mm F1.6 fixed lens 1.0 Lux at F1.2 { HOV 70° degree 1920x1080p@30, 720p@60 { Pan ±175° { Tilt ±45° { 64 preset positions { 4 cruise lines { DC 12V, 2A |
Remote controller |

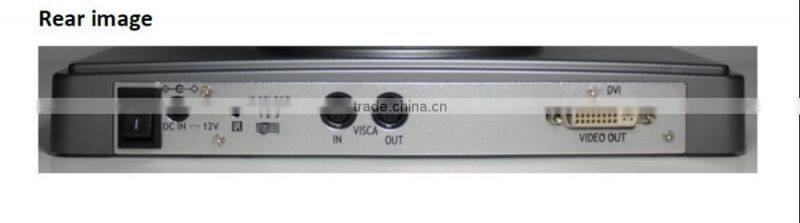

Multi-interface rear image
1x DVI interface
1x12VDC2A Power Supply

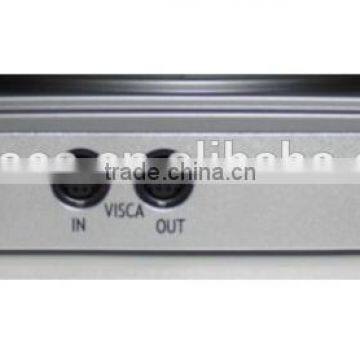

RS232 Interface (VISCA IN, VISCA Out)
Specification sheet
Model | SVC-HDC08 | |
Image SenSor | Sensor | 1/2.8" CMOS 2.0 Mega Pixel |
Minimum Scene illumination | 4.0 mm F1.6 fixed lens 1.0 Lux at F1.2 | |
White Balance | AUTO/Manual | |
Gain Control | AUTO | |
Back-light compensation | ON/OFF | |
Electronic shutter | 1/50~1/120,000S E-shotter | |
S/N Ratio | >50db | |
Lens | Focus | 4.0 mm Fixed Lens HOV 70 degree |
Iris | AUTO/Manual | |
Video Output | DVI | |
HDMI Signal output | ||
Video format | 1080P@60, 1080P@30, 1080P@25, 1080P@24, 1080i@60, 1080i@50, 720P@60, 720P@50 | |
Control Decoder | EIA/RS-485 | |
Communication | EIA/RS-232(Bidirectional) | |
PTZ Control Protocol | VISCA,PELCO-P,PELCO-D | |
Baud Rate | 4800/9600 bps | |
Patrol tours | 4 | |
Preset | 64 | |
Save status after Power off | Support | |
Speed Matching Function | Support | |
OSD Menu | Support | |
Image Auto Flip | Support | |
Pan Speed | 0-100 degrees/s | |
Tilt Speed | 0-80 degrees/s | |
Pan Rotation Angle | 359 degrees | |
Tilt Rotation Angle | 90 degrees | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359 degrees (Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V ±10% 1.2A | |
Operation Temperature | -10℃~60℃ | |
Environmental humidity | 0-95%RH(non-condensation) | |
Length X width X high | 124x120x145mm/220x175x220mm(NET/PACKAGE) | |
Weight | 800g/1300g(NET/PACKAGE) | |
Accessories kits in package:
1xSVC-HDC08 Video Camera
1x DC 12V/2A Power Adaptor
1x User’s manual
1x Installation brackets & screws
1xIR Remote Controller
1xDVI-HDMI Cable (3meters)
