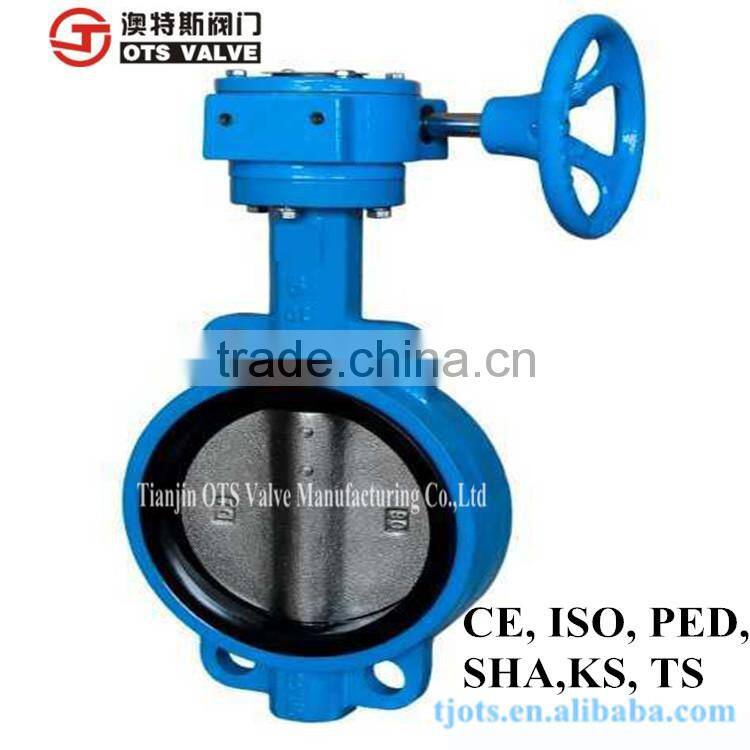

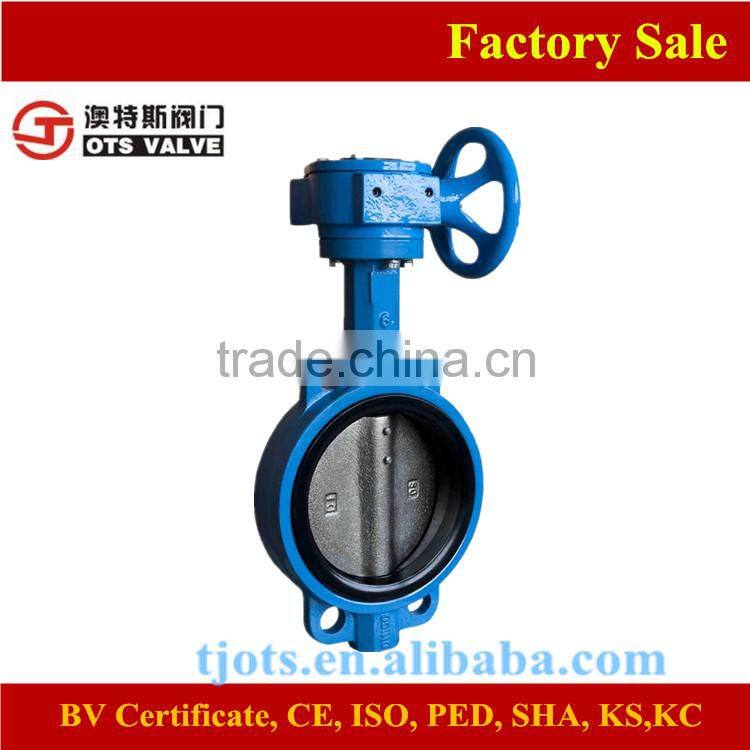

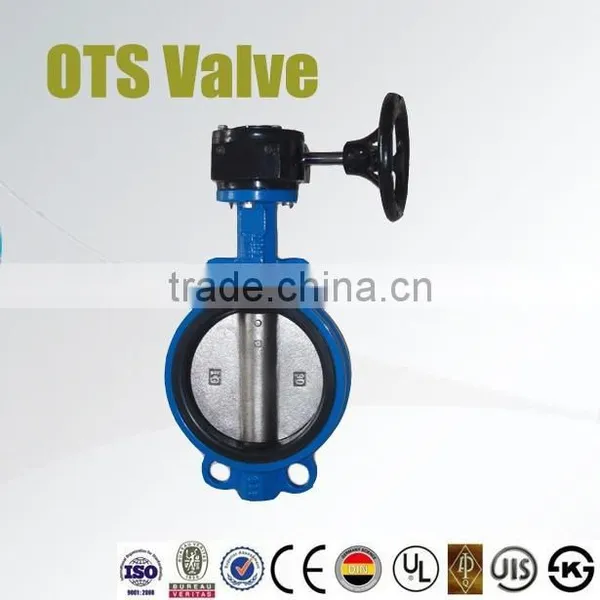

Help CenterBV-WL-1201Handwheel Soft Seated Wafer Butterfly Valve
Related Products
-
BV-WL-1202Handwheel Soft Seated Flanged Butterfly ValveUS$ 10 - 20MOQ: 100 Sets -
BV-WL-1203Handwheel Soft Seated Lug Butterfly ValveUS$ 10 - 20MOQ: 100 Sets
-
High Quality Water Type 200X Pressure Reducing Valve From FactoryUS$ 12 - 13MOQ: 2 Sets
-
Ductile Iron Pressure Reduce Valve ( PRV) for WaterUS$ 12 - 13MOQ: 2 Sets
-
Pressure Reduce Valve From Factory PN10 Dn50-300US$ 12 - 13MOQ: 2 Sets
Selling Units: Single item
Single package size: 10X20X10 CM
Single gross weight: 1.0 KG
1. Wafer butterfly valve instruction:
The wafer style butterfly valve is designed to maintain a seal against bidirectional pressure differential to prevent any backflow in
systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal; i.e., gasket, oring, precision machined, and a flat valve face on the upstream and downstream sides of the valve.
2. wafer butterfly valve Material of every parts:
| Standard | JIS10K, ANSI150 #, ANSI/API, BS, GB.... |
| Pressure | PN10, PN16, ...... |
| End connection | Wafer, lug, flange, U type..... |
| Name | Optional Materials |
| Body | Ductile Iron(DI, QI, GGG40), Gray Cast iron(CI, GG25), Cast Steel(WCB), Stainless |
| Disc | Ductile Iron(DI, QI, GGG40), Gray Cast iron(CI, GG25), Cast Steel(WCB), Stainless |
| Shaft/Stem | Q235, SS410, 416SS, 316SS, 304SS, CS45#coating with Ni plated |
| Bushing | PTFE or Bronze |
| Seat |
Nr, Hypalon, Neoprene, Wear-resistant Rubber, NBR, PTFE/Telfon, VITON, EP, EPDM |
| Other accessories | SS or as per your request. |
| Pin | SS304, SS316, With or Without (pinless) |
| Operated | Handle lever, worm gear, electric actuator, pneumatic actuator... |
3. wafer butterfly valve Drawing and techinical data:
It is avalible, pls contact with me.
18 month quality gurantee, 10000 times turn on/off
Tianjin OTS Valve Manufacturing Co., Ltd., a jointed company, established during the time of China Reform and Open to the World. specializing in all kinds industrial butterfly valves with 13340 meters, including 8600m work shop, fixed finance of RBM 200 millions as well as some advanced design, processing, assembling and testing for all butterfly valves. Further we are rich in the experience of producing butterfly valves over more than 10 years, all of the butterfly valves we produced come up to the advanced standard home and abroad.
Factory Overview:
Warehouse:
1. Quality gurantee: 18months.
2. Factory: Yes
3. Any third party test: Yes, no problem.
4. Delaydelivery: Never.
5. Fixed assets: 4, 000, 000 USD.
6. exporting years: 10 years.
7. Finding some distributors, will have discounts.
8. staff: technical engineer: 15, workers: more than 120
9. Machines: more than 200sets
Tianjin OTS Valve Manufacturing Co.,Ltd
Contact person: Linda Lin
